Intellinet 525800 draadloos toegangspunt (WAP) 100 Mbit/s Wit Power over Ethernet (PoE)

Intellinet 525800, 100 Mbit/s, 10,100 Mbit/s, 2.4 – 2.483 GHz, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE..., 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK, 802.1x RADIUS, WEP, WPA, WPA-TKIP, WPA2, WPA2-AES

Niet op voorraad

Fabrikant Intellinet
MPN 525800
EAN 0766623525800
€ 37,00 excl. BTW

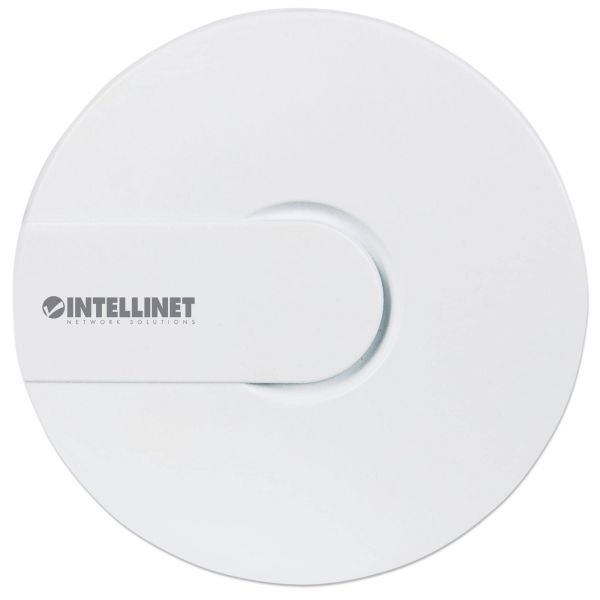

Intellinet 525800 draadloos toegangspunt (WAP) 100 Mbit/s Wit Power over Ethernet (PoE)

High-Power Ceiling Mount Wireless 300N PoE Access Point - Flexibility in wireless networking

The Intellinet Network Solutions High-Power Ceiling Mount Wireless 300N PoE Access Point gives you the flexibility to increase the range of your wireless network.

The access point features a PoE port, which can be used to power the device from a PoE-compliant LAN switch. This is very convenient in situations where AC power is not readily available.
  • Up to 300 Mbps network link speed
  • Smoke detector design
  • Complies with 2.4 GHz IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards
  • 2T2R MIMO technology for enhanced throughput and coverage
  • Supports WMM function to meet the multimedia data bandwidth requirement
  • Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
  • IEEE 802.3af-compliant PoE-powered device with one PoE (PD) port
  • DHCP server assigns IP addresses for all LAN users
  • Easy installation through Web-based user interface
  • Three-Year Warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Nee
Maximale overdrachtssnelheid van gegevens*
100 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Frequentieband
2.4 – 2.483 GHz
Netwerkstandaard
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Auto MDI/MDI-X
Ja
Modulatie
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Beveiliging

Ondersteunde beveiligingsalgoritmen*
802.1x RADIUS, WEP, WPA, WPA-TKIP, WPA2, WPA2-AES
MAC adres filtering
Ja

Protocollen

DHCP client
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1
Aansluiting voor netstroomadapter
Ja

Energie

Power over Ethernet (PoE)*
Ja
Spanning
48 V
Output current
2 A
Vermogensverbruik (max)
9 W

Design

Kleur van het product*
Wit
LED-indicatoren
Stroom

Design

Certificering
CC Class B, CE Mark, RoHS

Antenne

Soort antenne*
Intern
Antennas quantity
2
Antenne versterkingsniveau (max)
3 dBi

Prestatie

Chipset
Atheros AR9341
Flash memory
8 MB
Intern geheugen
64 MB

Gewicht en omvang

Breedte
144 mm
Diepte
144 mm
Hoogte
42,5 mm
Gewicht
466 g

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Inclusief AC-adapter
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
