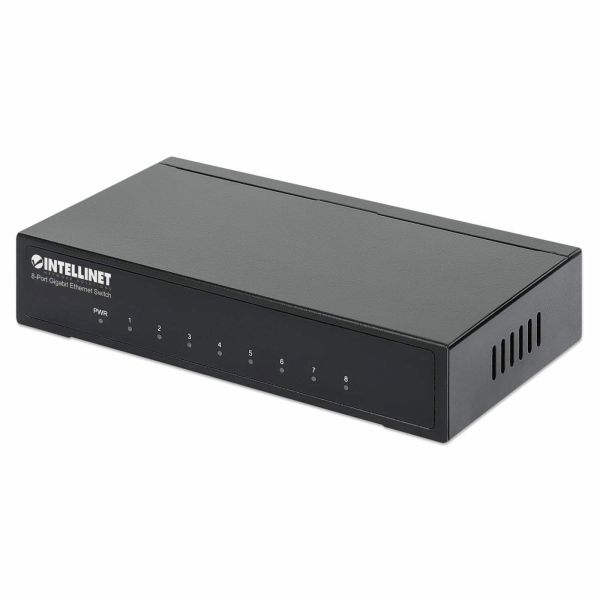

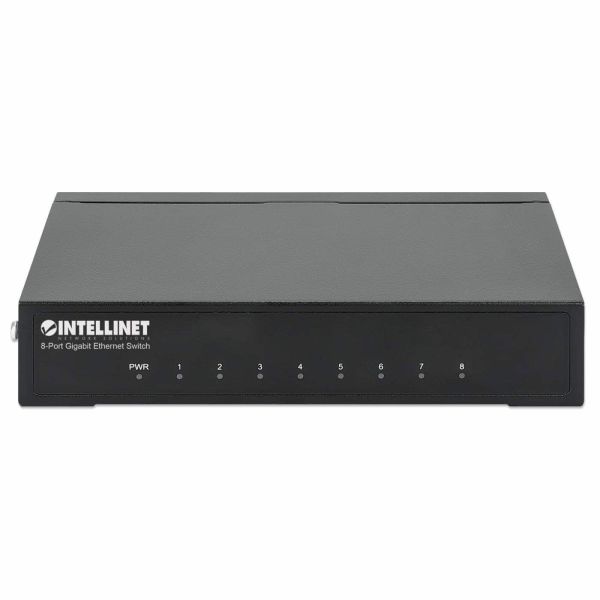

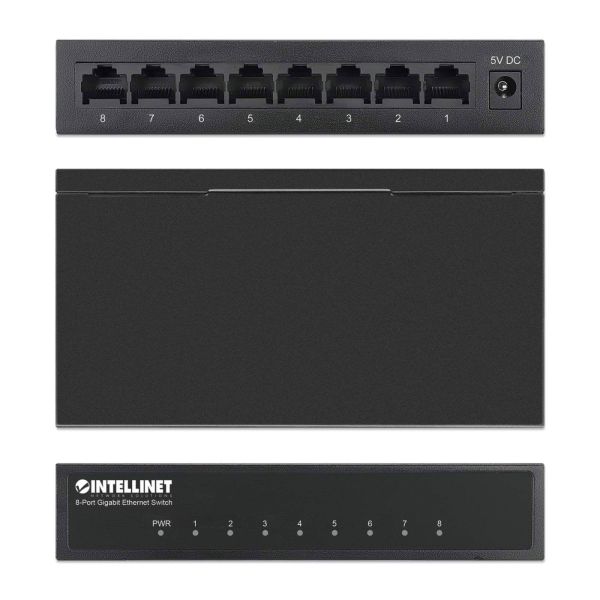

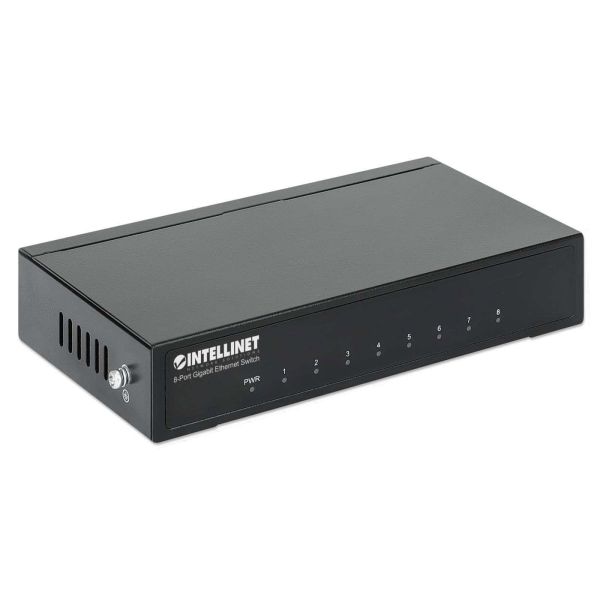

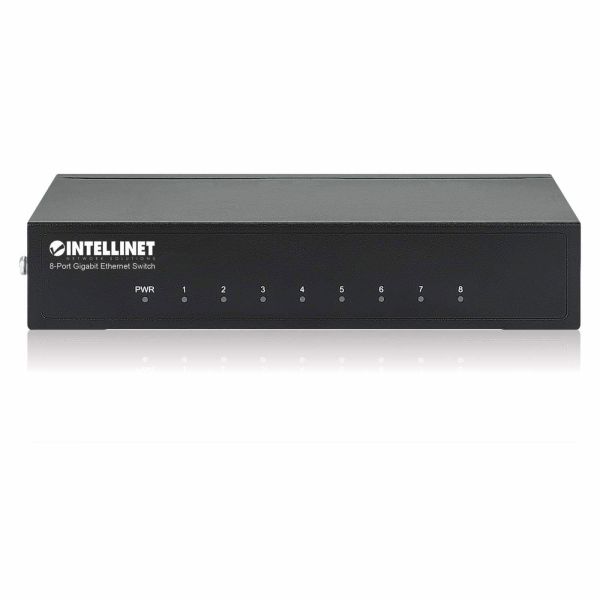

Intellinet 530347 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart
Easy to install, with auto-learning capabilities. _x000D_
_x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_
_x000D_
High-Speed Performance _x000D_
This desktop switch includes eight Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_
_x000D_
Auto Features _x000D_
This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the eight ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_
_x000D_
Reliable Operation _x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, full and half duplex modes further ensure that your connections remain active even under extremely busy conditions.
_x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_
_x000D_
High-Speed Performance _x000D_
This desktop switch includes eight Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_
_x000D_
Auto Features _x000D_
This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the eight ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_
_x000D_
Reliable Operation _x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, full and half duplex modes further ensure that your connections remain active even under extremely busy conditions.
- 10/100/1000 Auto MDI-X ports automatically detect optimal network speeds
- High performance, half and full duplex, with zero packet loss
- Full flow control support provides optimum performance
- Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
- Auto-learning of network configuration
- Supports jumbo frames up to 9 kBytes
- Store and forward switching architecture
- Non-blocking wire-speed forwarding and filtering
- Fanless design ideal for silent operation
- Rugged metal housing for maximum durability
- Three-Year Warranty
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces

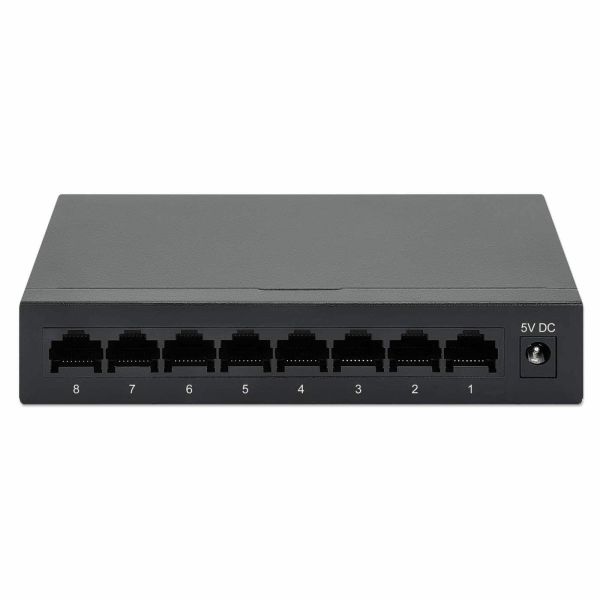

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
DC-in ingang
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Data-uitwisseling
Store-and-forward
Ja
Design
Stapelbaar*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Certificering
FCC Class B, CE, RoHS
Energie

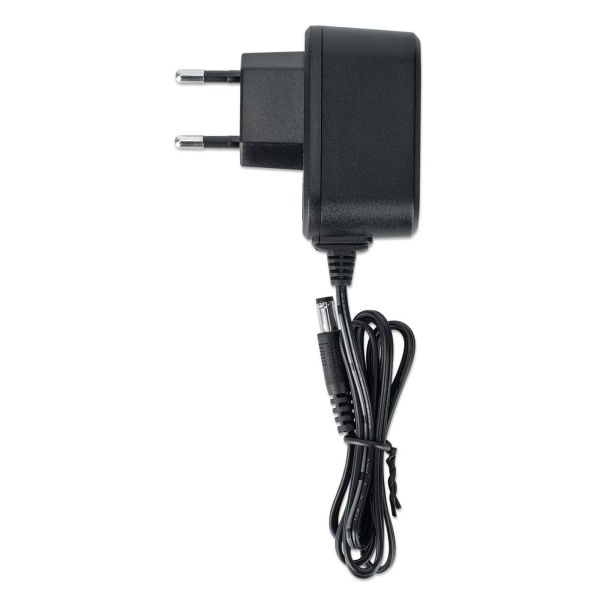

Vermogenstoevoer inclusief*
Ja
Energie
DC voltage input
5 V
Vermogensverbruik (max)
2,75 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 90 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Gewicht en omvang
Breedte
140 mm
Diepte
78 mm
Hoogte
28 mm
Gewicht
340 g
Verpakking
Gebruikershandleiding
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
