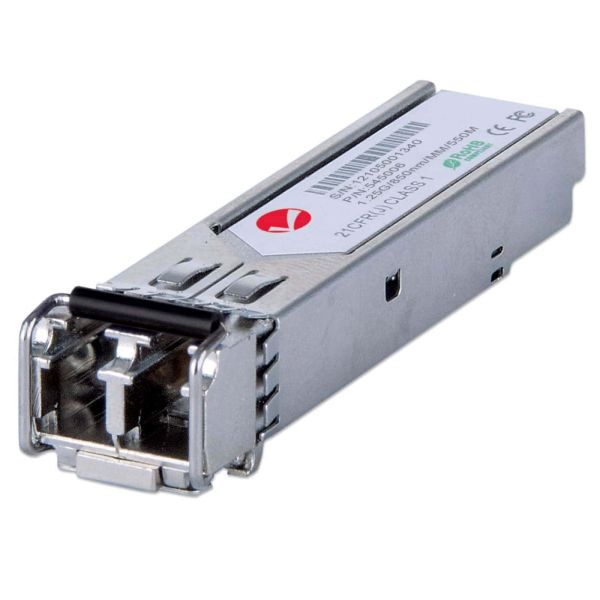

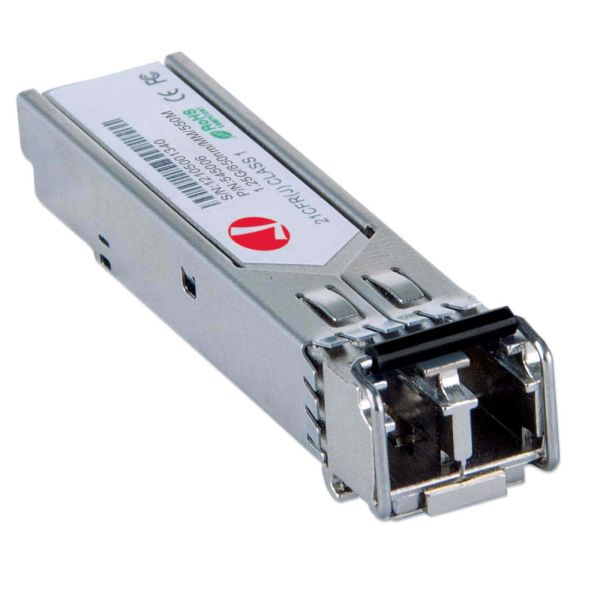

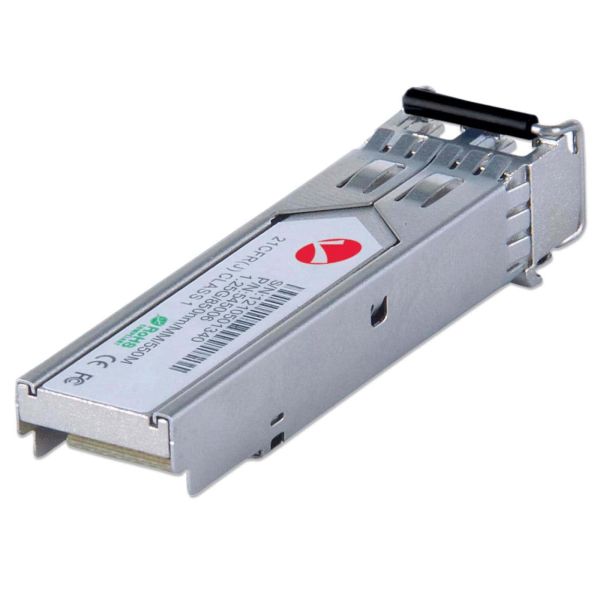

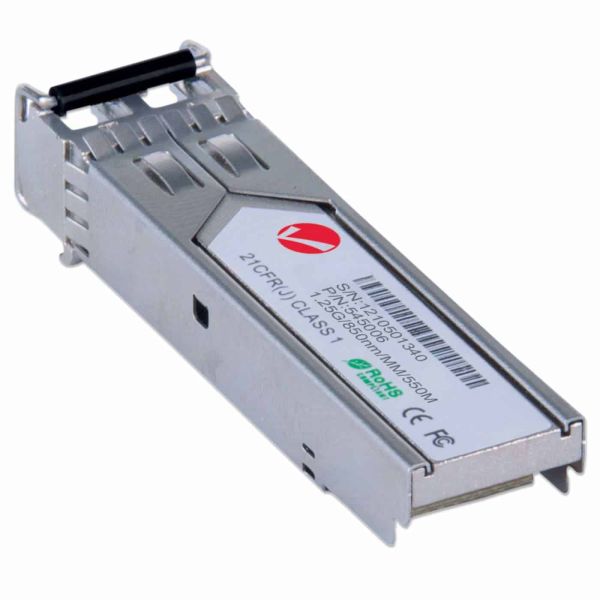

Intellinet 545006 netwerk transceiver module Vezel-optiek 1000 Mbit/s SFP 850 nm

Intellinet 545006, Vezel-optiek, 1000 Mbit/s, SFP, LC, 50/125,62.5/125 µm, 550 m

Nog slechts 9 beschikbaar

Fabrikant Intellinet
MPN 545006
EAN 0766623545006
€ 18,00 excl. BTW

Intellinet 545006 netwerk transceiver module Vezel-optiek 1000 Mbit/s SFP 850 nm

Gigabit Fibre SFP Optical Transceiver Module_x000D_
_x000D_
_x000D_
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_
_x000D_
_x000D_
_x000D_
_x000D_
Small Size for High-Density Fibre Connections_x000D_
_x000D_
_x000D_
_x000D_
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room._x000D_
_x000D_
_x000D_
_x000D_
Multi-Vendor Compatible_x000D_
_x000D_
_x000D_
_x000D_
Compatibility in your network is everything, and the Intellinet SFP Transceiver Module (model 545006) delivers. Use it with any Intellinet SFP equipped network switch or any other MSA (multi source agreement) compliant SFP enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor pn GLC-SX-MM, compatibility to your Cisco gear is provided._x000D_
_x000D_
_x000D_
_x000D_
Hot-Pluggable_x000D_
_x000D_
_x000D_
_x000D_
No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market._x000D_
  • Data transfer rate: 1000 Mbps
  • One 1000Base-SX multi-mode Fibre LC duplex port
  • Distance support: up to 550 m (50/125 µm cable) or 220 m (62.5/125 µm cable)
  • Wavelength: 850 nm
  • SFP standard form factor
  • Compliant with SFP Transceiver MSA specifications
  • Compatible with the Cisco GLC-SX-MM transceiver
  • Supports hot-plugging
  • Three-Year Warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Soort aansluiting*
SFP
Multi-mode glasvezelkabel (MMF) ondersteund
Ja
Vezel-optische connector
LC
Vezelkabel diameters ondersteund
50/125,62.5/125 µm
Maximaal bereik
550 m
Golflengte
850 nm
Tx vermogen (min)
-8 dBmW
Tx vermogen (max)
-3 dBmW
Link budget
8 dB
Ethernet interface type
Gigabit Ethernet
Netwerkstandaard
IEEE 802.3z
Fiber ethernet cabling technologie
1000BASE-SX
Duplex systeem
Volledig

Kenmerken

Kleur van het product
Aluminium

Kenmerken

Hot-plug ondersteuning
Ja
Certificering
FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA

Energie

Ingangsspanning
3.3 V
Stroomverbruik (typisch)
1 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
13 mm
Diepte
55 mm
Hoogte
12 mm
Gewicht
15 g

Verpakking

Aantal producten inbegrepen
1 stuk(s)
