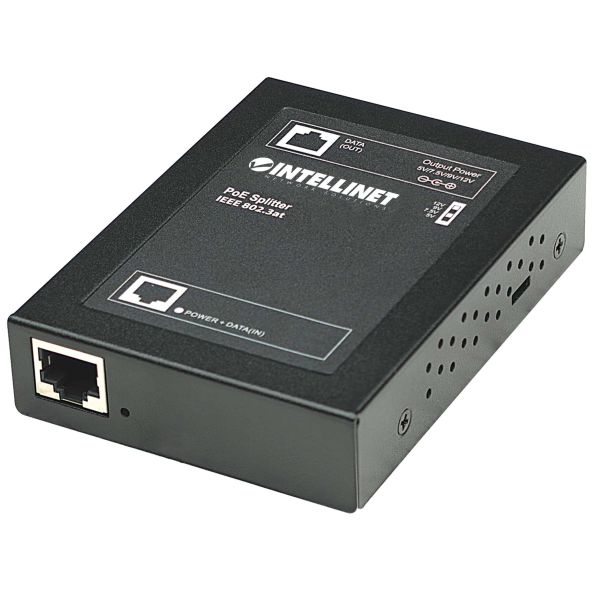

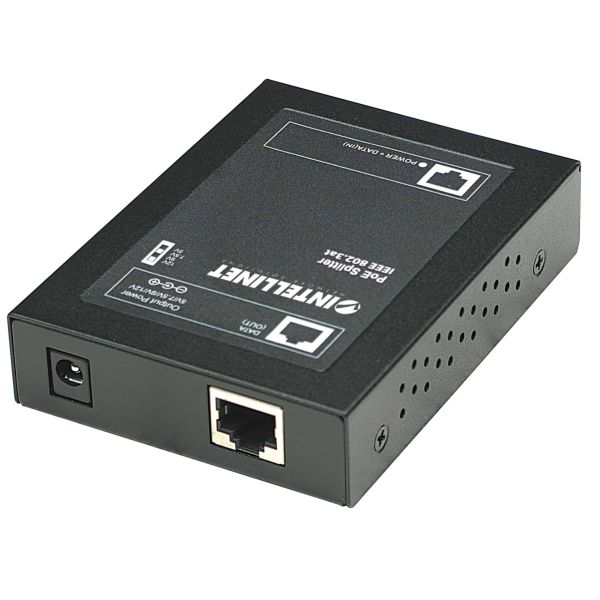

Intellinet 560443 network splitter Zwart Power over Ethernet (PoE)

Intellinet 560443, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, 10Base-T, 100Base-TX, Cat5, Zwart, Metaal, FCC Class A, CE

Ruim op voorraad

Fabrikant Intellinet
MPN 560443
EAN 0766623560443
€ 44,00 excl. BTW

Intellinet 560443 network splitter Zwart Power over Ethernet (PoE)

Deliver Power over Ethernet to remote devices. _x000D_
_x000D_
The INTELLINET NETWORK SOLUTIONS PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available. _x000D_
_x000D_
Simplify Installation for an Ethernet-based Device _x000D_
Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software. _x000D_
_x000D_
802.3af Compliant Power over Ethernet _x000D_
The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches. _x000D_
_x000D_
Adjustable Power Output _x000D_
During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side. _x000D_
_x000D_
* Contact your INTELLINET NETWORK SOLUTIONS reseller for ordering information. _x000D_
** Maximum distance per 802.3u specifications.
  • Can be used to connect non-PoE IEEE 802.3af/t-compliant devices to a PoE injector or PoE switch
  • Output voltage, selectable: 5, 7.5, 9 or 12 V DC
  • Power output: 5 V / 4 A, 7.5 V / 2.7 A, 9 V / 2.3 A and 12 V / 1.7 A
  • 10/100 auto-sensing input port automatically detects optimal network speeds
  • RJ45 input port with Auto-MDIX and NWay auto-negotiation support
  • Full/half duplex operation
  • Compact metal case
  • LED for link on PoE input port
  • Three-Year Warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Netwerkstandaard
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Bekabelingstechnologie
10Base-T, 100Base-TX
Kabel standaard
Cat5

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
Certificering
FCC Class A, CE

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
2
Geslacht connector
Vrouwelijk

Energie

Power over Ethernet (PoE)
Ja
Spanning
12 V
Uitgangsvermogen
25,4 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 60 °C
Temperatuur bij opslag
-20 - 90 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Gewicht en omvang

Breedte
74 mm
Diepte
102 mm
Hoogte
22 mm
Gewicht
445 g

Inhoud van de verpakking

Meegeleverde kabels
AC
Aantal
1
