Intellinet 560641 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Intellinet 560641, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

Fabrikant Intellinet
MPN 560641
EAN 0766623560641
€ 129,00 excl. BTW

Intellinet 560641 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

When you need power for compatible devices, Power over Ethernet provides it._x000D_
_x000D_
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Gigabit Ethernet ports, this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps._x000D_
_x000D_
Save installation time and money with PoE 802.3at._x000D_
_x000D_
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (e.g., legacy wireless access points or network cameras), we suggest the use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_
_x000D_
* Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.
  • Provides power and data connection for up to eight PoE network devices
  • Saves time and money by delivering data and power via existing network cables
  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
  • PoE power budget of 140 watts
  • Power output up to 30 watts per port*
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
  • 4 kV surge protection for PoE ports
  • Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
  • Supports Jumbo Frames up to 9 kBytes
  • All RJ45 ports with Auto-MDIX (auto uplink) support
  • Store and forward switching architecture
  • IEEE 802.3x flow control for full duplex
  • Supports up to 8K MAC address entries
  • 256 kBytes buffer memory
  • Fanless design ideal for silent operation
  • Desktop-size metal case
  • Includes 19" rackmount brackets
  • Three-year warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Packet buffergeheugen
256 MB

Design

Rack-montage*
Ja
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Certificering
FCC Class B, VCCI Class B, CE, RoHS, EN 60950-1

Energie

Stroombron*
AC
AC-ingangsspanning
100 - 240 V

Energie

AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
150 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Gewicht en omvang

Breedte
280 mm
Diepte
180 mm
Hoogte
44 mm
Gewicht
2 kg

Verpakking

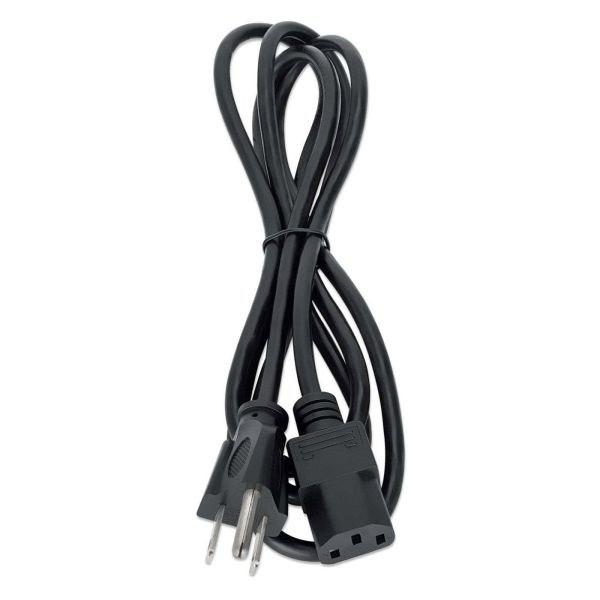

Meegeleverde kabels
AC
Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Power LED
Ja
