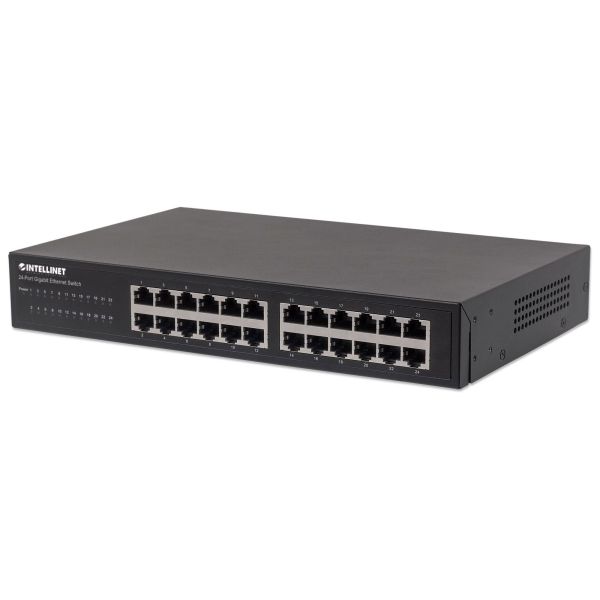

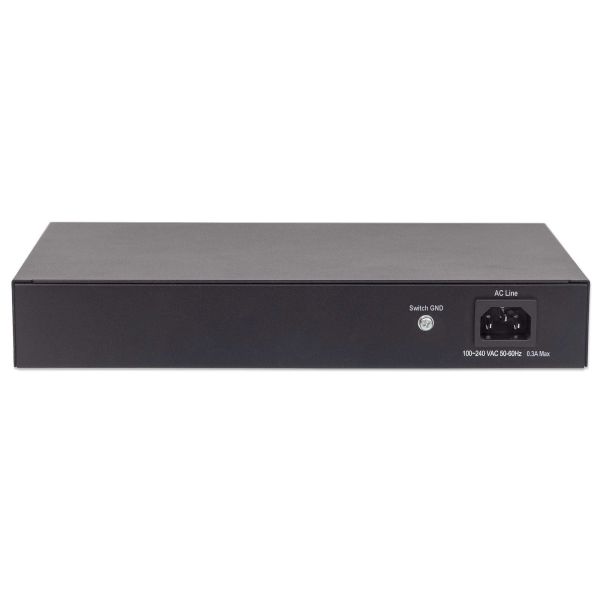

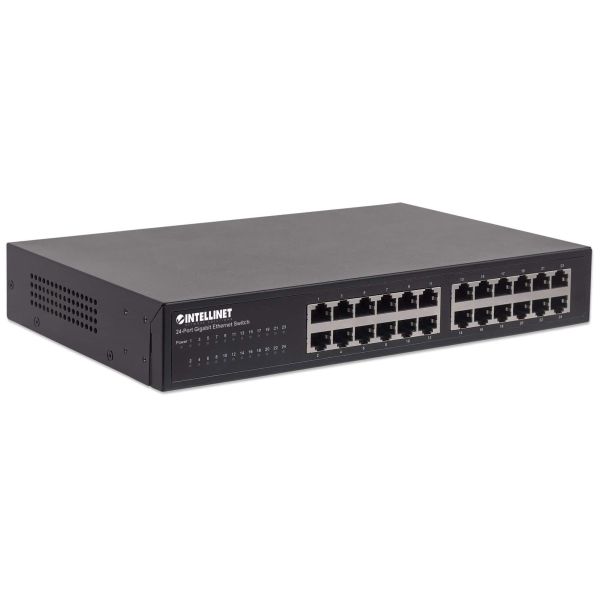

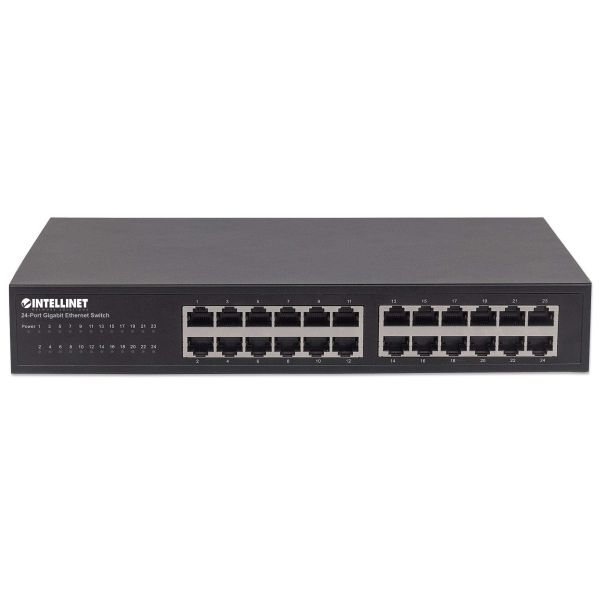

Intellinet 561273 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart

Intellinet 561273, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage

Ruim op voorraad

Fabrikant Intellinet
MPN 561273
EAN 0766623561273
€ 170,00 excl. BTW

Intellinet 561273 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart

Boost your network speed. _x000D_
_x000D_
The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch (561273) offers an array of features while providing superior network throughput. It is very easy to set up and requires no configuration whatsoever. Thanks to its desktop and 19"; rackmount design, superior performance and value, the Intellinet Network Solutions 24-Port Gigabit Ethernet Switch is the perfect choice for expanding your small office home or home network. _x000D_
_x000D_
Extreme Throughput _x000D_
With a backplane speed of 48 Gbps, plenty of performance is available for your computers, servers and other networking devices. _x000D_
_x000D_
Auto Features _x000D_
This Gigabit LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle-free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the 24 ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_
_x000D_
Reliable Operation _x000D_
The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch supports flow control when operating in half-duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store-and-forward switching method, full- and half-duplex modes further ensure that your connections remain active even under extremely busy conditions. _x000D_
_x000D_
Green Ethernet Technology _x000D_
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network-connected device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new, energy efficient IEEE 802.3az technology, the Intellinet Network Solutions 24-Port Gigabit Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet Network Solutions switch can adjust the level of power output based on the length of the network cable connected to a particular port. This feature allows for the enjoyment of maximum network performance, and when things slow down, it automatically scales back power usage to conserve energy and save money.
  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • Auto-MDIX (auto uplink) support for all RJ45 ports

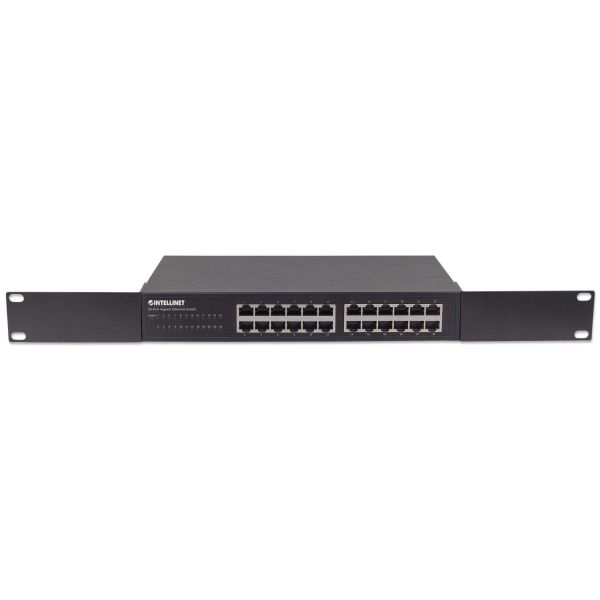

  • For use on desktop or mounted in standard 19" rack
  • Supports NWay auto-negotiation
  • Store and forward switching architecture
  • Full/half duplex operation
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
  • Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
  • 48 Gbps switch fabric
  • Supports jumbo frames up to 9 kBytes
  • Supports 16k MAC address entries
  • 512 kBytes buffer memory
  • Supports MAC address auto-learning and auto-aging
  • Fanless design ideal for silent operation
  • Includes 19" rackmount brackets
  • Three-Year warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Controle en provisioning van draadloze toegangspunten (CAPWAP)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-sensing
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
48 Gbit/s
MAC-adrestabel*
16384 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffergeheugen
0,512 MB

Design

Rack-montage*
Ja
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Stroom
Certificering
FCC A, CE

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
16 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Gewicht en omvang

Breedte
280 mm
Diepte
180 mm
Hoogte
44 mm
Gewicht
2,6 kg

Verpakking

Meegeleverde kabels
AC
Gebruiksaanwijzing
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
