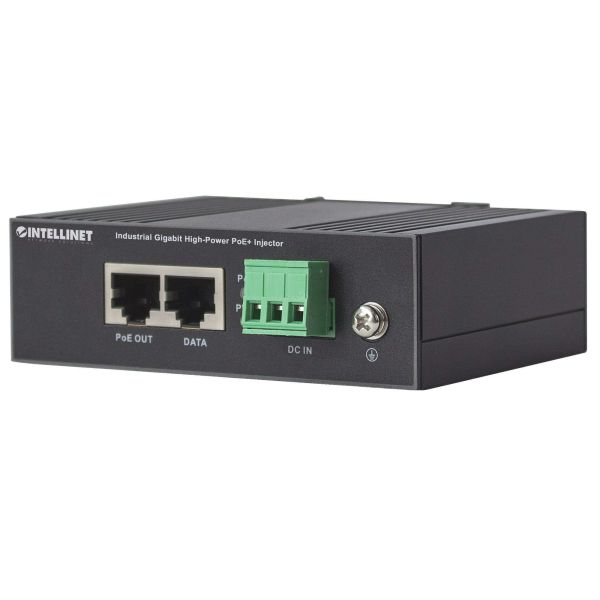

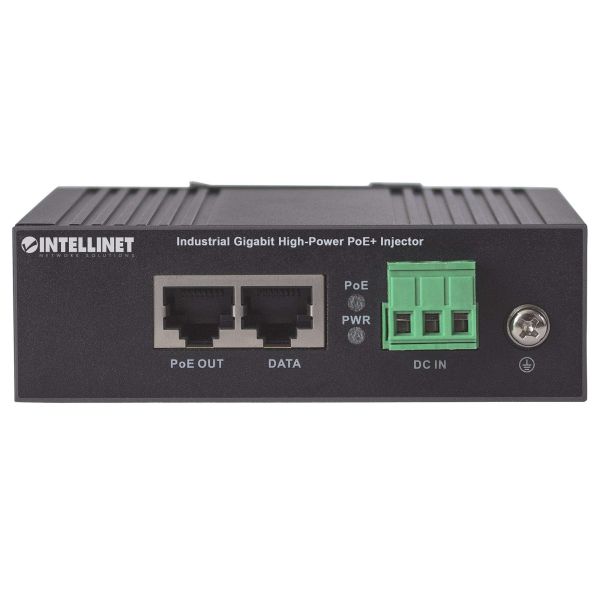

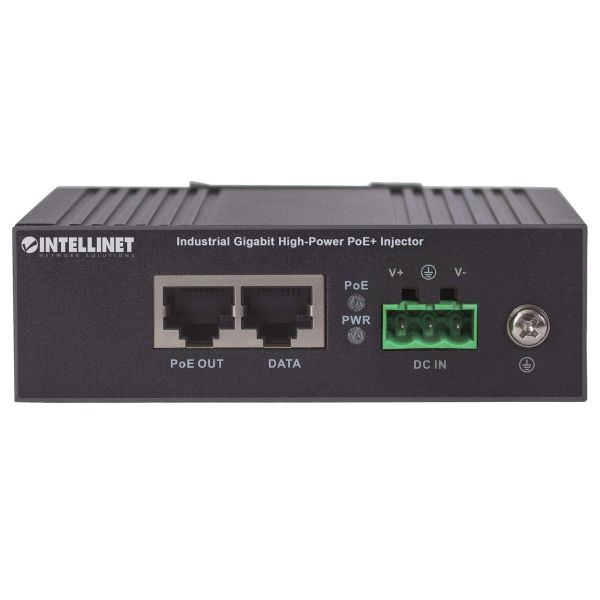

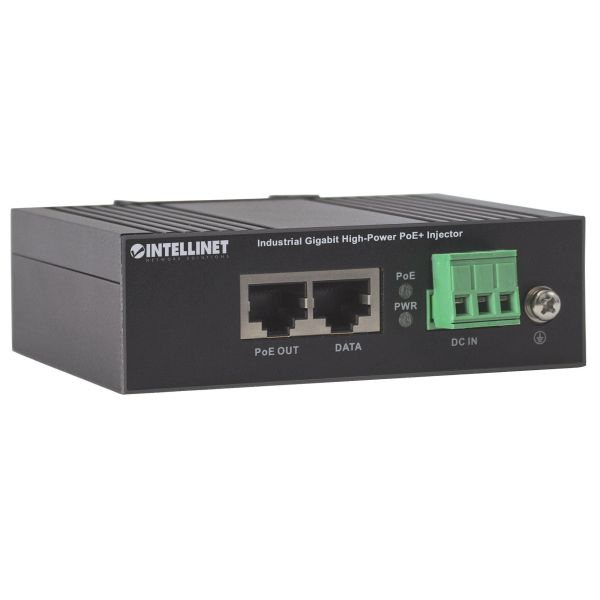

Intellinet 561365 PoE adapter & injector Gigabit Ethernet 56 V

Intellinet 561365, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Zwart, Power over Ethernet (PoE), Stroom, FCC Class A Part 15B CE

Ruim op voorraad

Fabrikant Intellinet
MPN 561365
EAN 0766623561365
€ 63,00 excl. BTW

Intellinet 561365 PoE adapter & injector Gigabit Ethernet 56 V

Get power and data over your existing LAN cable._x000D_
_x000D_
The Intellinet Network Solutions Industrial Gigabit High-Power PoE+ Injector connects your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts, enough for most of the common PoE devices._x000D_
_x000D_
Reduce Wiring Costs_x000D_
_x000D_
This smart solution avoids the need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing LAN cabling to deliver DC power as well as transfer data.
  • Full IEEE802.3af, IEEE802.3at compliance
  • Up to 30 W of power on two pairs
  • Auto-detection of any IEEE802.3af or IEEE802.3at powered device (PD)
  • Supports 10/100/1000Base-T applications
  • LED indicators for power input and PoE output
  • Supports distance up to 100 m (330 ft.)
  • DC input 45 – 56 V

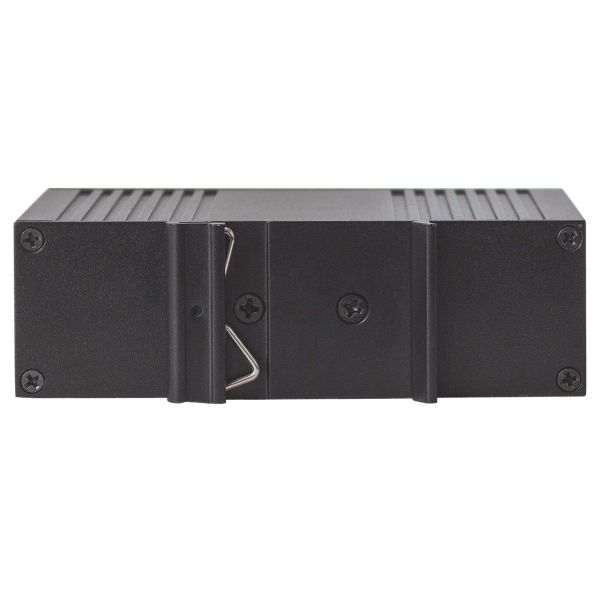

  • Option for DIN-rail installation
  • IP30 slim-type metal case
  • ESD protection level of 6 kV
  • DCIN port surge-protection level of 8/20 µs, DM/CM 3 kA
  • RJ45 port Surge protection level 10/700 µs, DM/CM 6 kV
  • Wide operating temperature: -40 – 75℃ (-40 – 167°F)
  • Three-year warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Ja
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Kenmerken

Kleur van het product
Zwart
LED-indicatoren
Power over Ethernet (PoE), Stroom
Certificering
FCC Class A Part 15B CE

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
2

Energie

Stroom via Ethernet (PoE)*
56 V
Uitgangsvermogen
30 W
Ingangsspanning
45 – 56
Totaal Power over Ethernet (PoE)-budget
30 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Temperatuur bij opslag
-40 - 85 °C

Gewicht en omvang

Breedte
32 mm
Diepte
78 mm
Hoogte
103 mm
Gewicht
260 g

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85044095
