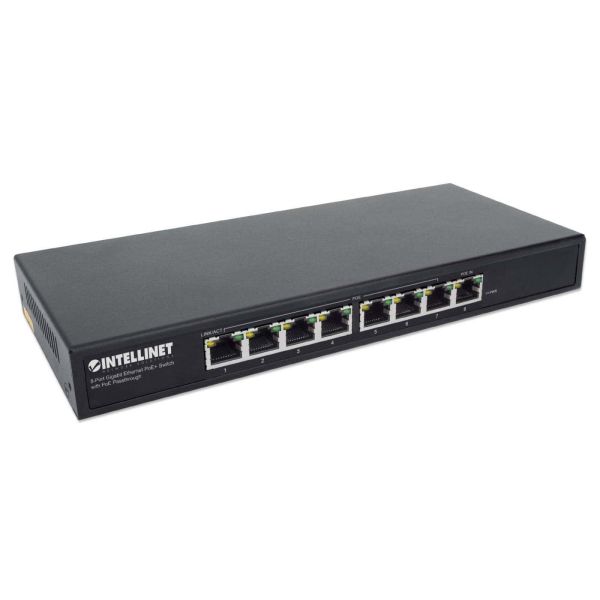

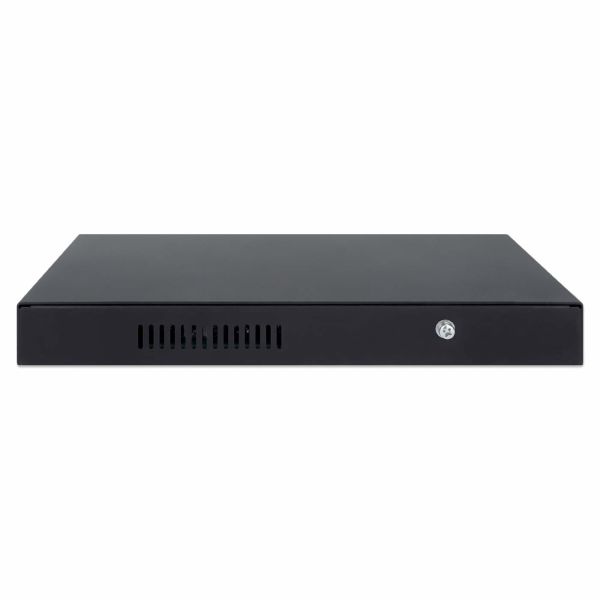

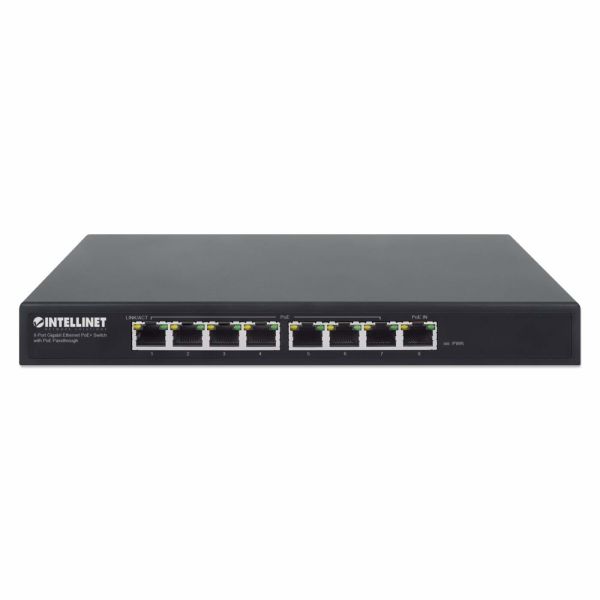

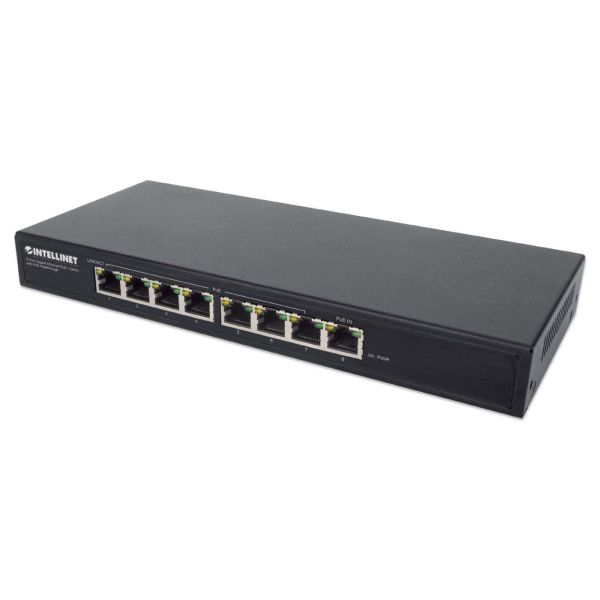

Intellinet 561679 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Intellinet 561679, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Nog 19 beschikbaar

Fabrikant Intellinet
MPN 561679
EAN 0766623561679
€ 131,00 excl. BTW

Intellinet 561679 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

The PoE Passthrough Switch — Save installation costs with Power over Ethernet and get the most out each PoE connection
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to PoE-compatible devices via network cables. Its PD port even supports power input from the latest Ultra PoE++ (4PPoE Power over Ethernet) sources, easily handling up to 90 W. Equipped with eight Gigabit Ethernet ports, this PoE Passthrough Switch can power up to seven wireless LAN access points and bridges, VoIP phones or IP video cameras and deliver network speeds up to 1,000 Mbps without an external power adapter.

Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using the PoE Passthrough Switch this way also eliminates the time and expense of electrical rewiring, which ultimately minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 85 W to compatible devices.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat5e
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
2000 entries
Store-and-forward
Ja

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom
Certificering
CC Class B, CE, RoHS

Energie

Stroombron*
Power over Ethernet (PoE)
DC voltage input
48 - 57 V
Vermogensverbruik (max)
85 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Power over Ethernet (PoE) pass through
Ja
Hoeveelheid Power over Ethernet (PoE) ports
7
Totaal Power over Ethernet (PoE)-budget
85 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
104 mm
Diepte
240 mm
Hoogte
29 mm
Gewicht
660 g

Verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
