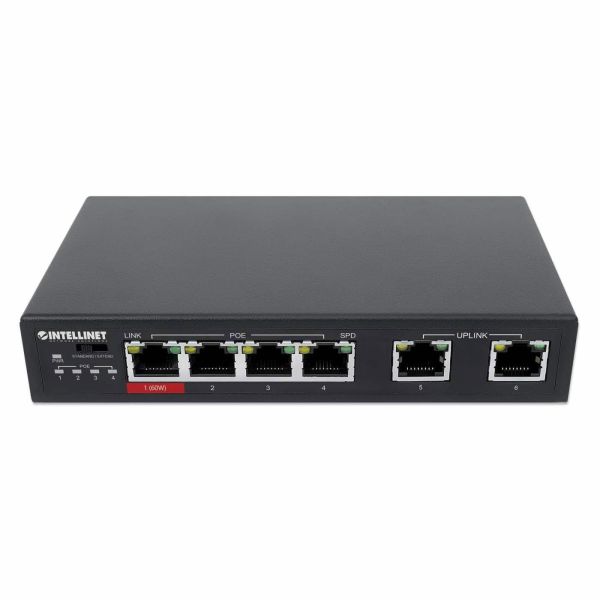

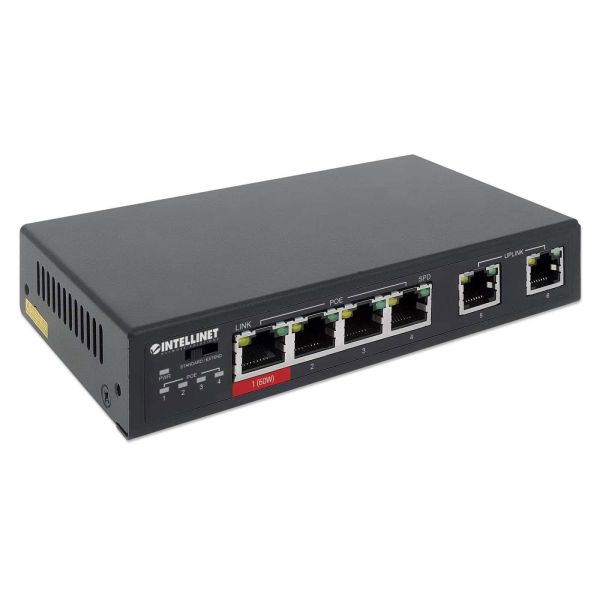

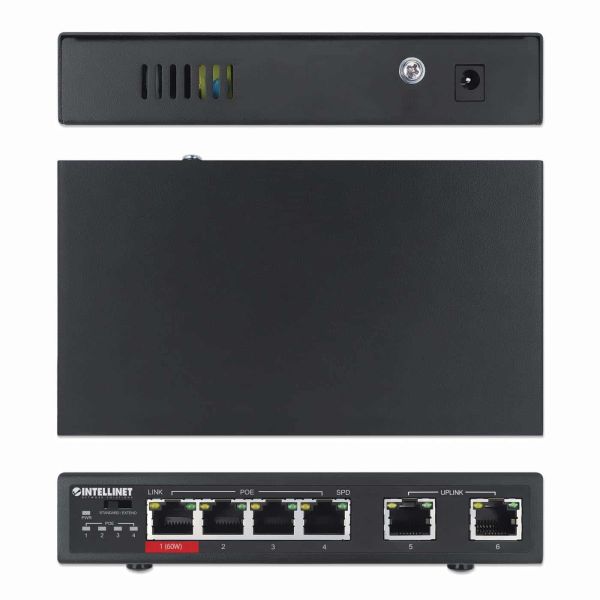

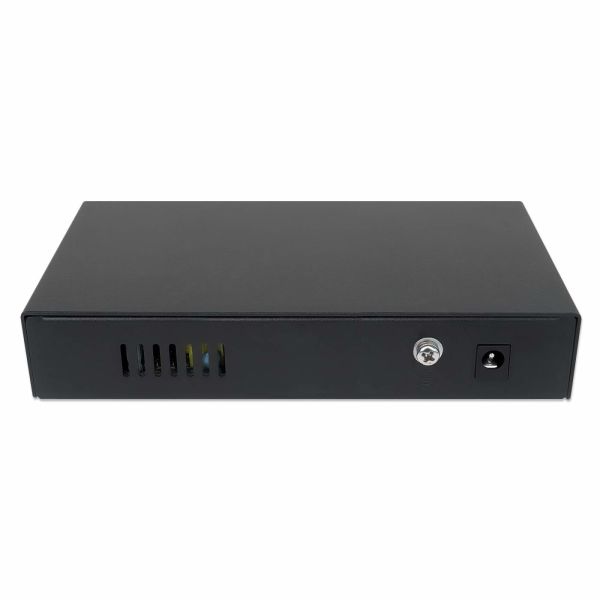

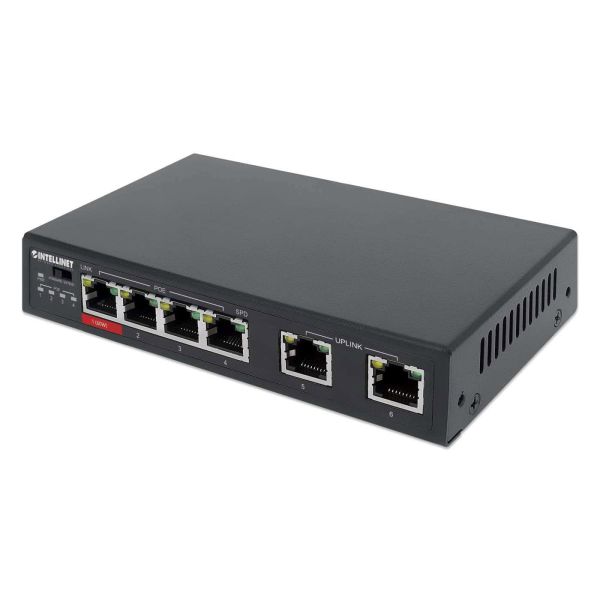

Intellinet 561686 netwerk-switch Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart

Intellinet 561686, Fast Ethernet (10/100), Power over Ethernet (PoE)

Ruim op voorraad

Fabrikant Intellinet
MPN 561686
EAN 0766623561686
€ 51,00 excl. BTW

Intellinet 561686 netwerk-switch Fast Ethernet (10/100) Power over Ethernet (PoE) Zwart

A Fast Ethernet PoE Switch with extend mode and a lot of PoE power - ideal for IP camera installations
The 6-Port Fast Ethernet Switch with 4 PoE Ports from Intellinet Network Solutions stands out with useful features that are particularly useful for IP camera installations. A manual PoE extend mode – to be activated at the flip of a switch – reduces network speed and extends PoE support up to 250 m (820 ft.), which is ideal for remote IP cams and other PoE devices.

Save time and money with Power over Ethernet
Three of its four PoE ports deliver data and power up to 30 W each to IEEE 802.3at or IEEE 802.3af-compliant PoE devices such as wireless access points, VoIP phones and IP cameras. One high-power PoE port even delivers up to 60 W with a total PoE power budget of 65 watts. Devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short-circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.
  • Provides up to four PoE network devices with power and data
  • Manual PoE extend mode (reduces network speed and extends PoE support to 250 m/820 ft.)
  • PoE extend mode ideal for IP camera installations

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
6
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)
Aantal uplinkpoorten
2

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Ondersteundende kabel types
Cat5e
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
1,2 Gbit/s
MAC-adrestabel*
1000 entries
Store-and-forward
Ja

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom, Snelheid
Certificering
FCC Class B, CE, RoHS

Energie

Stroombron*
AC/DC

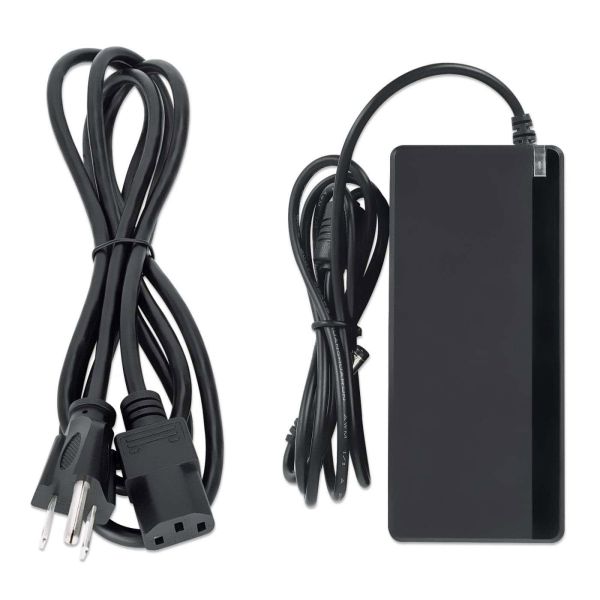

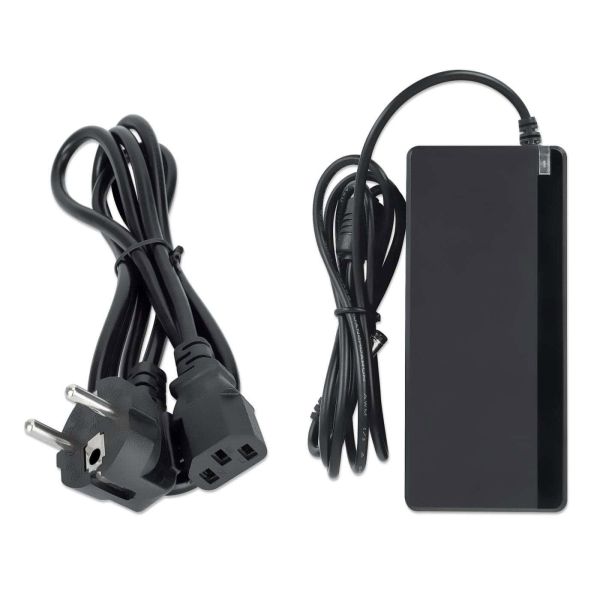

Vermogenstoevoer inclusief*
Ja

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
44 - 57 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
4
Totaal Power over Ethernet (PoE)-budget
65 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
87 mm
Diepte
153 mm
Hoogte
29 mm
Gewicht
410 g

Verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
