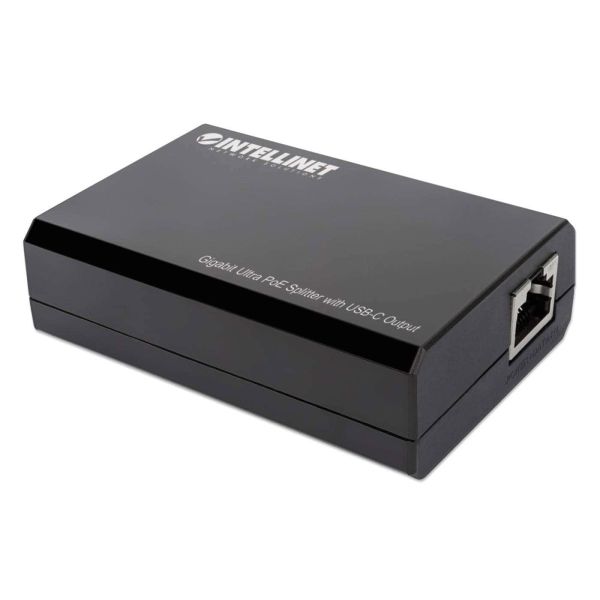

Intellinet 561693 network splitter Zwart Power over Ethernet (PoE)

Intellinet 561693, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, 10/100/1000Base-T(X), Cat5e, Zwart, Kunststof, FCC Class B, CE, RoHS, UKCA, NDAA

Nog 10 beschikbaar

Fabrikant Intellinet
MPN 561693
EAN 0766623561693
€ 51,00 excl. BTW

Intellinet 561693 network splitter Zwart Power over Ethernet (PoE)

Use your existing PoE network connection to charge a USB-C powered device such as a notebook, Macbook Pro®, Ultrabook™ or tablet with this Gigabit Ultra PoE Splitter from Intellinet Network Solutions. Connected via a single RJ45 network cable to an IEEE 802.3bt-compliant PoE injector or PoE switch, this PoE++ Splitter (4PPoE) separates the Ethernet connection from the power coming through the cable and outputs them into separate ports for USB-C Power Delivery (PD) up to 45 W and Gigabit Ethernet. For maximum safety, it offers overload, overcurrent and overheat protection while being backward compatible with IEEE 802.3at and IEEE 802.3af, so the Ultra PoE Splitter can support any PoE connection.
  • Charges a USB-C powered device such as a notebook, Macbook Pro® or tablet from an IEEE 802.3bt/at/af PoE connection
  • Delivers Gigabit Ethernet to an RJ45-equipped device
  • PoE power budget of 45 W with 60 W power input through IEEE 802.3bt connection
  • PoE power budget of 23 W through IEEE 802.3at connection and 12 W through IEEE 802.3af connection
  • Saves time and money by delivering data and power via existing network cables
  • Overload, overcurrent and overheat protection
  • Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
  • Fully NDAA-compliant

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Bekabelingstechnologie
10/100/1000Base-T(X)
Kabel standaard
Cat5e

Design

Kleur van het product
Zwart
Materiaal behuizing
Kunststof
LED-indicatoren
Ja
Certificering
FCC Class B, CE, RoHS, UKCA, NDAA

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
1

Energie

Power over Ethernet (PoE)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
80 mm
Diepte
54 mm
Hoogte
24 mm
Gewicht
170 g
