Intellinet 713641 rack 2U/4U Wandrek Grijs

Intellinet 713641, Wandrek, 2U/4U, 60 kg, Sleutelsleuf, 8,5 kg, Grijs

Nog slechts 7 beschikbaar

Fabrikant Intellinet
MPN 713641
EAN 0766623713641
€ 279,00 excl. BTW

Intellinet 713641 rack 2U/4U Wandrek Grijs

Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and more

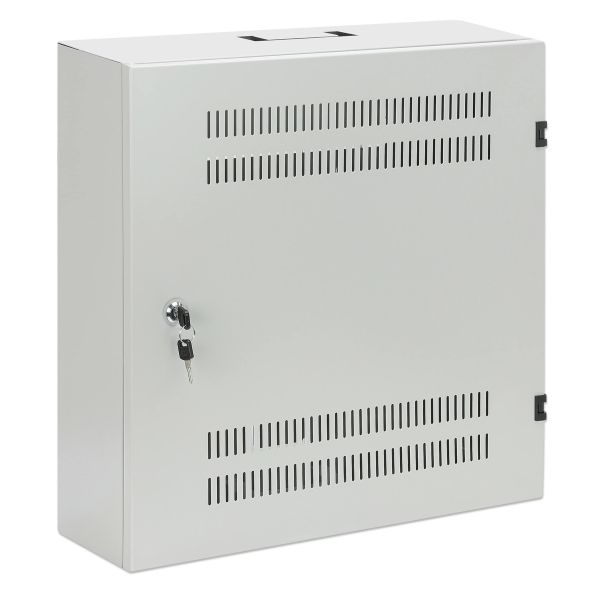

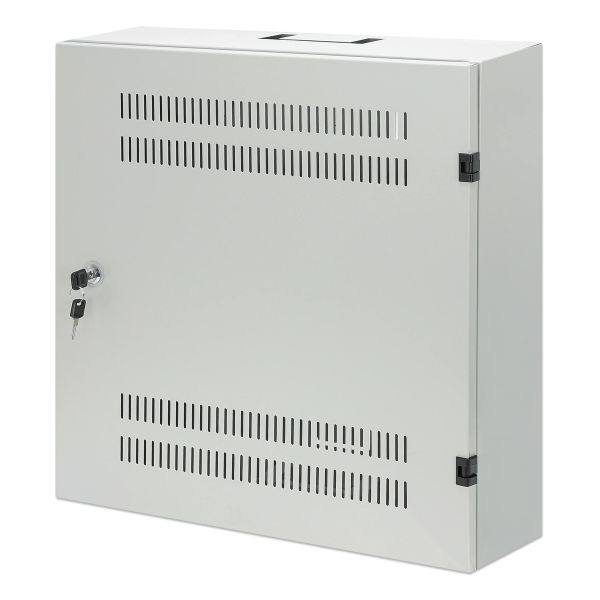

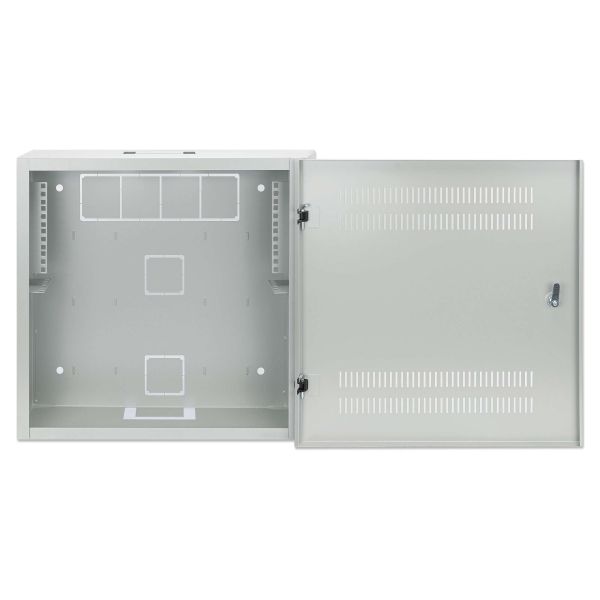

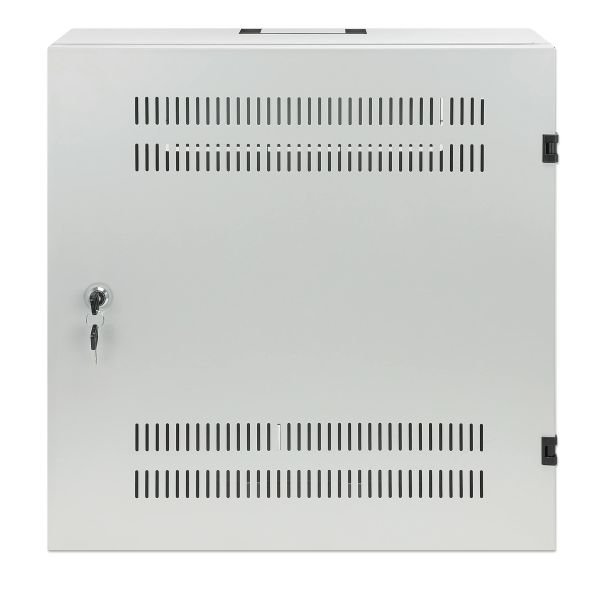

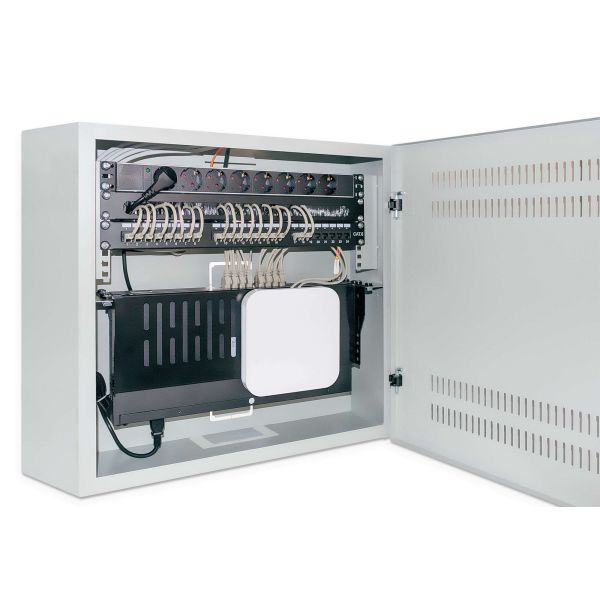

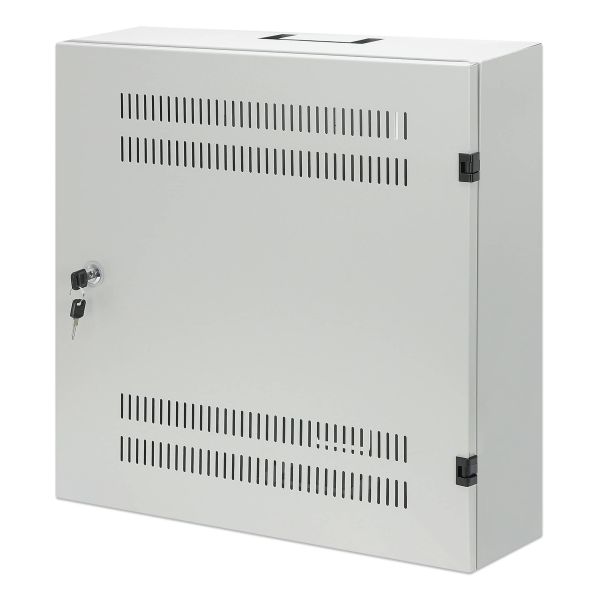

The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.
  • Slim, space-saving design for organized, secure housing of network, multimedia, surveillance, audio/video and smart home equipment
  • Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
  • Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)
  • Maximum load capacity of 60 kg (132 lbs.)
  • Extends only 170 mm (6.7 in.) from the wall
  • Sturdy, secure steel housing with antistatic powder coating
  • Three-point door lock with two included keys
  • Ventilation slots for maximum airflow to keep your equipment cool and prevent overheating
  • IP20-rated protection

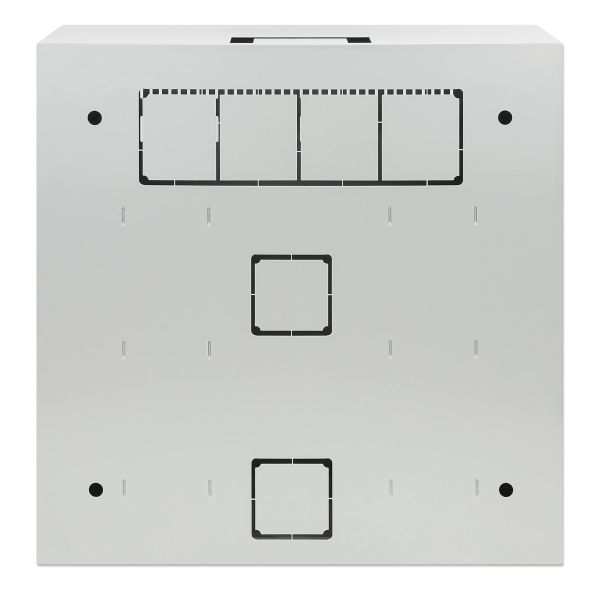

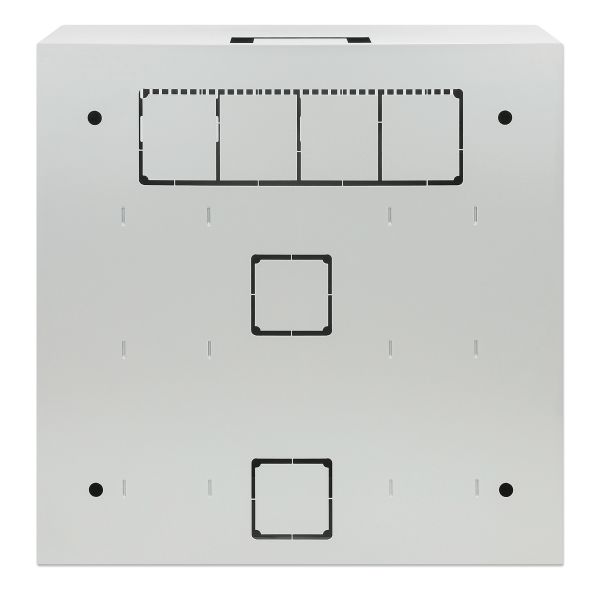

  • Pre-punched cable entry openings on top, rear and bottom
  • Ships fully assembled for quick installation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Rackcapaciteit*
2U/4U
Soort*
Wandrek
Maximale gewichtscapaciteit*
60 kg
Kleur van het product
Grijs
Materiaal
Staal
Frame type
Gesloten
Productontwerp
4 palen
Voordeurconstructie
Staal
Sleutelsleuf
Ja
Voordeur met sleutelvergrendeling
Ja
Internationale veiligheidscode (IP)
IP20
Ventilatiegaten
Ja

Gewicht en omvang

Breedte
550 mm
Diepte
170 mm
Hoogte
540 mm
Gewicht
8,5 kg

Verpakking

Moeren inbegrepen
Ja
Moeren aantal
12
Inclusief schroeven
Ja
Aantal schroeven
12
Inbegrepen sluitringen aantal
12
Breedte verpakking
545 mm
Diepte verpakking
555 mm
Hoogte verpakking
205 mm

Technische details

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
RoHS

Logistieke gegevens

(Buitenste) hoofdverpakking breedte
560 mm
(Buitenste) hoofdverpakking lengte
560 mm
(Buitenste) hoofdverpakking hoogte
190 mm
(Buitenste) hoofdverpakking brutogewicht
9,5 kg
Hoeveelheid per (buitenste) hoofdverpakking
1 stuk(s)
