Intellinet 716093 rack 9U Wandrek Grijs
Network Cabinet Wall Mount with IP55 Rating for Industrial Applications - sealed protection against dust and water

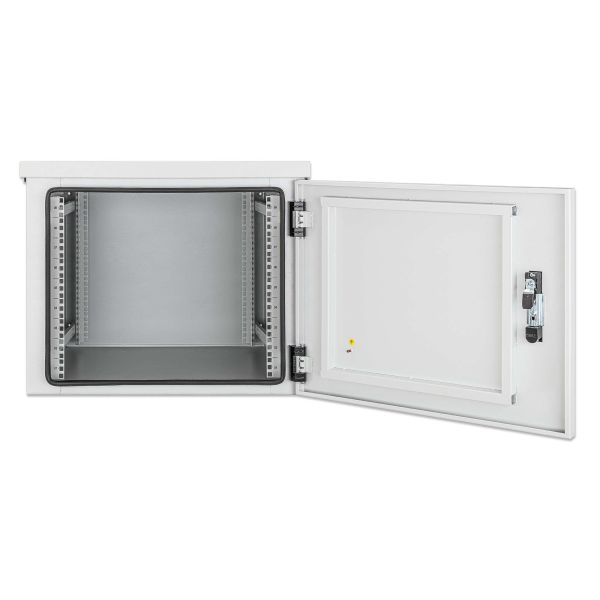

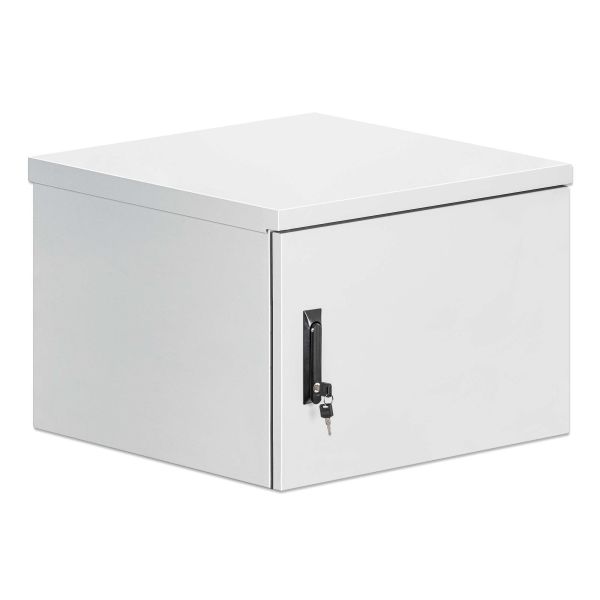

The IP55 Wall Mount Cabinet from Intellinet Network Solutions is equipped to handle challenging environment conditions. The cabinet's powder-coated steel housing is compliant with IEC standard EN 60529 for safe protection against dust ingress and water jets from any direction. Four sealed cable glands with PVC blind caps on the bottom panel allow for cable entry. To ensure the neatly sealed design, the cabinet comes fully assembled, which also makes your installation quick and convenient. The sturdy 19” steel construction carries heavy rackmounted equipment up to 100 kg (220 lbs.) and can be securely locked with a 3-point door lock on the swing handle. This IP55 wall mount enclosure line is available in 6, 9, 12 and 18U sizes.
Includes two-fan ventilation unit for efficient cooling
To keep your network equipment cool, this cabinet has a built-in roof-mounted two-fan ventilation unit. It provides improved performance and longer life to your networking components through reliable cooling and ideal air circulation.
The IP55 Wall Mount Cabinet from Intellinet Network Solutions is equipped to handle challenging environment conditions. The cabinet's powder-coated steel housing is compliant with IEC standard EN 60529 for safe protection against dust ingress and water jets from any direction. Four sealed cable glands with PVC blind caps on the bottom panel allow for cable entry. To ensure the neatly sealed design, the cabinet comes fully assembled, which also makes your installation quick and convenient. The sturdy 19” steel construction carries heavy rackmounted equipment up to 100 kg (220 lbs.) and can be securely locked with a 3-point door lock on the swing handle. This IP55 wall mount enclosure line is available in 6, 9, 12 and 18U sizes.
Includes two-fan ventilation unit for efficient cooling
To keep your network equipment cool, this cabinet has a built-in roof-mounted two-fan ventilation unit. It provides improved performance and longer life to your networking components through reliable cooling and ideal air circulation.
- IP55-rated for industrial applications: protection against dust ingress and water jets from any direction
- Sturdy, secure steel construction with antistatic powder coating
- Usable installation depth: 169 mm (6.7 in.) to 549 mm (21.6 in.)
- Maximum load capacity of 100 kg (220 lbs.)
- Roof-mounted, quiet two-fan ventilation unit with air filters and a noise level of only 24.9 db (A)
- Efficient heat dissipation for a wide operating temperature up to 50°C (122°F)
- Steel door that can be opened 190°
- Earthing kit included
- Swing handle with three-point door lock and two included keys

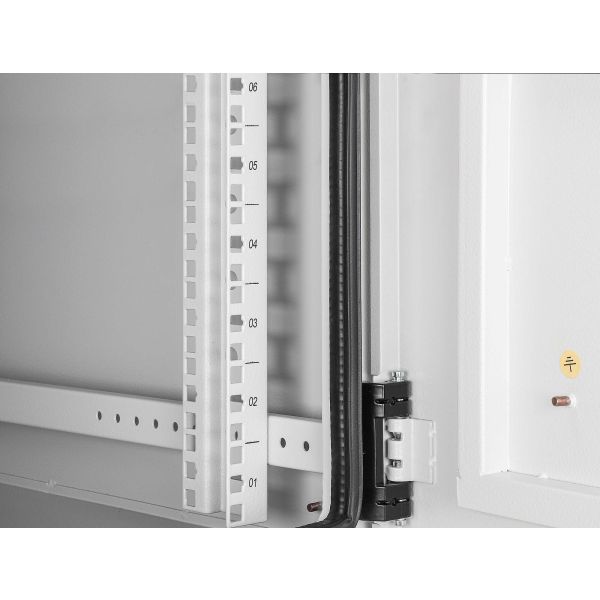

- Numbered rackmount space height units
- Four sealed cable-entry opening glands on bottom panel (51 mm/2 in. diameter)
- Ships fully assembled for quick installation
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
Rackcapaciteit*
9U
Soort*
Wandrek
Maximale gewichtscapaciteit*
100 kg
Kleur van het product
Grijs
Materiaal
Staal
Sleutelsleuf
Ja
Voordeur met sleutelvergrendeling
Ja
Type koeling
Actief
Aantal ventilatoren
2 ventilator(en)
Ventilator performance
85 cfm
Geluidsniveau
24,9 dB
Verbeterd kabelbeheer
Ja
Deur openingshoek
190°
Internationale veiligheidscode (IP)
IP55
Energie
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Nominale netspanning
10 A
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-10 - 50 °C
Gewicht en omvang
Maat
48,3 cm (19")
Breedte
615 mm
Diepte
600 mm
Hoogte
500 mm
Gewicht
36 kg
Verpakking
Moeren inbegrepen
Ja
Moeren aantal
10
Inclusief schroeven
Ja
Aantal schroeven
10
Gewicht verpakking
37,5 kg
Technische details
Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, RoHS
