Inter-Tech 3U-30240 Rack Zwart

Inter-Tech 3U-30240, Rack, Server, Zwart, ATX, Flex-ATX, micro ATX, Mini-ATX, Mini-ITX, Staal, 3U

Ruim op voorraad

Fabrikant Inter Tech
MPN 88887106
EAN 4260133126275
€ 115,00 excl. BTW

Inter-Tech 3U-30240 Rack Zwart

The IPC 3U-30240 is the perfect rack for a low-priced server system. The excellent quality of the materials combined with superb workmanship establishes the basis for a very variable case.

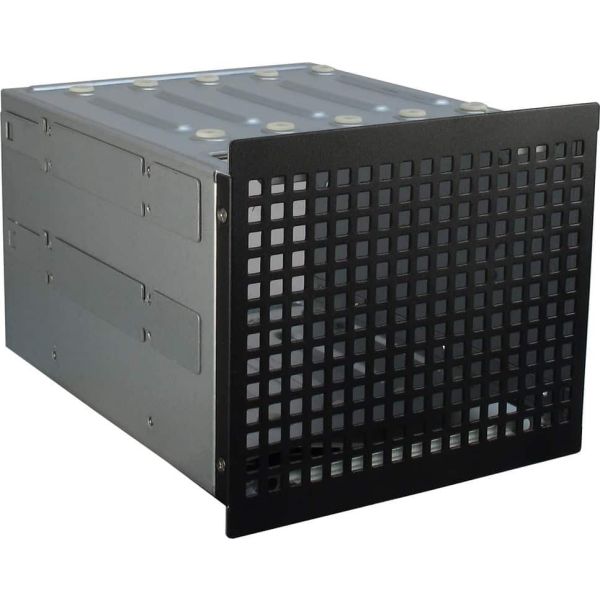

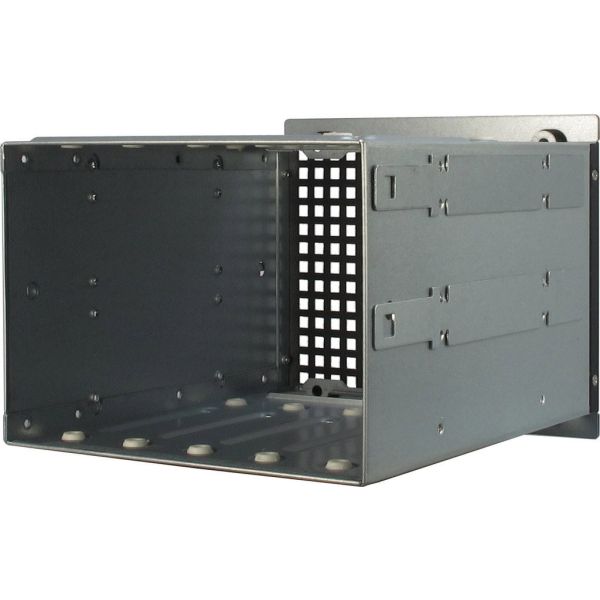

The IPC 3U-30240 provides the possibility to remove the two HDD cages on both sides and therefore to mount up to six 5.25" external hard drives. In the middle four external 3.5" HDDs are also available.

One 120mm and two 60mm fans guarantee an optimal cooling.

Additional extras like easily reachable USB 3.0 and USB 2.0 connectors and the lid with the snap locks complete this total package.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Materiaal
Staal
Vormfactor*
Rack
Soort*
Server
Kleur van het product*
Zwart
Supported motherboard form factors*
ATX, Flex-ATX, micro ATX, Mini-ATX, Mini-ITX
Aantal 3.5" bays*
12
Aantal 5.25" bays*
6
Aantal 2.5" bays
14
Aantal interne 3.5" baaien
12
Aantal externe 5,25 " bays
6
Rack-montage
Ja
Rackcapaciteit
3U
Zijraam
Nee
Geschikt voor
Thuis/Werk
Reset button
Ja
LED-indicatoren
Alarm, HDD, Netwerk, Stroom

Power voorraad

Vermogenstoevoer inclusief*
Nee
Ondersteunde vormfactoren stroomvoorziening
ATX

Poorten & interfaces

Audio-ingangen
Nee
Audio-uitgang
Nee
Aantal USB 2.0-poorten*
1
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
1

Koeling

Aantal geïntstalleerde ventilators voorkant
1x 120 mm

Koeling

Maximale aantal ventilators voorkant
1
Voorste ventilators ondersteunende diameters
120 mm
Maximaal aantal ventilators zijkant
6
Zijkant ventilators ondersteunende diameters
40 mm
Geïnstalleerde ventilators achterkant
2x 60 mm
Maximaal aantal ventilators achterkant
2
Achterkant ventilators ondersteunende diameters
60 mm

Opslagmedia

Ondersteunde HDD-groottes*
3.5"
Maximum aantal HDD's per behuizing
10

Gewicht en omvang

Breedte
480 mm
Diepte
435 mm
Hoogte
133,5 mm
Gewicht
8,65 kg
Dikte van materiaal
1,2 mm

Verpakking

Breedte verpakking
560 mm
Diepte verpakking
560 mm
Hoogte verpakking
175 mm
Gewicht verpakking
10,4 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080

Overige specificaties

Peripheral (Molex) power connectors (4-pin)
1
