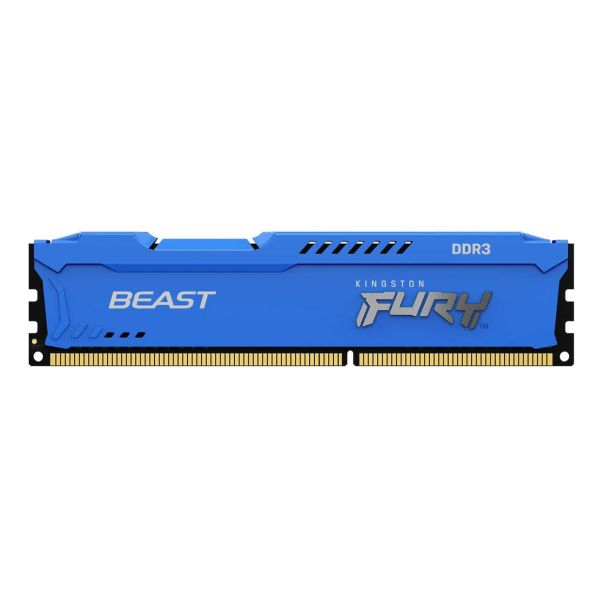

Kingston Technology KF316C10BK2/16, 16 GB, 2 x 8 GB, DDR3, 1600 MHz, 240-pin DIMM

Ruim op voorraad

Fabrikant Kingston
MPN KF316C10BK2/16
EAN 0740617318128

Kingston Technology KF316C10BK2/16 geheugenmodule 16 GB 2 x 8 GB DDR3 1600 MHz

FURY KF316C10BK2/16 is a kit of two 1G x 64-bit (8GB) DDR3-1600 CL10 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components per module. Total kit capacity is 16GB. Each module has been tested to run at DDR3-1600 at a low latency timing of 10-10-10 at 1.5V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 240-pin DIMM uses gold contact fingers.
  • JEDEC standard 1.5V Power Supply
  • VDDQ = 1.5V
  • 800MHz fCK for 1600Mb/sec/pin
  • 8 independent internal bank
  • Programmable CAS Latency: 11, 10, 9, 8, 7, 6
  • Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
  • 8-bit pre-fetch
  • Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
  • Bi-directional Differential Data Strobe
  • Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
  • On Die Termination using ODT pin
  • Average Refresh Period 7.8us at lower than TCASE 85°C 3.9us at 85°C < TCASE < 95°C
  • Asynchronous Reset
  • Height 1.338” (34mm) w/heatsink

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Unregistered (unbuffered)
CAS-latentie
10
Intern geheugen*
16 GB
Geheugenlayout (modules x formaat)*
2 x 8 GB
Intern geheugentype*
DDR3
Kloksnelheid geheugen*
1600 MHz
Component voor*
Pc/server
Geheugen form factor*
240-pin DIMM
ECC*
Nee
Geheugen kanaal
Dubbelkanaals
Geheugen voltage
1.5 V
Module configuration
512M x 8
Duur row cycle
48,125 ns
Duur vernieuwen row cycle
260 ns
Duur row active
37,5 ns
Land van herkomst
Taiwan

Kenmerken

Type koeling
Koelplaat
Backlight
Nee
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
JEDEC-standaard
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 85 °C
Temperatuur bij opslag
-55 - 100 °C

Gewicht en omvang

Breedte
133,3 mm
Diepte
7,1 mm
Hoogte
34 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
