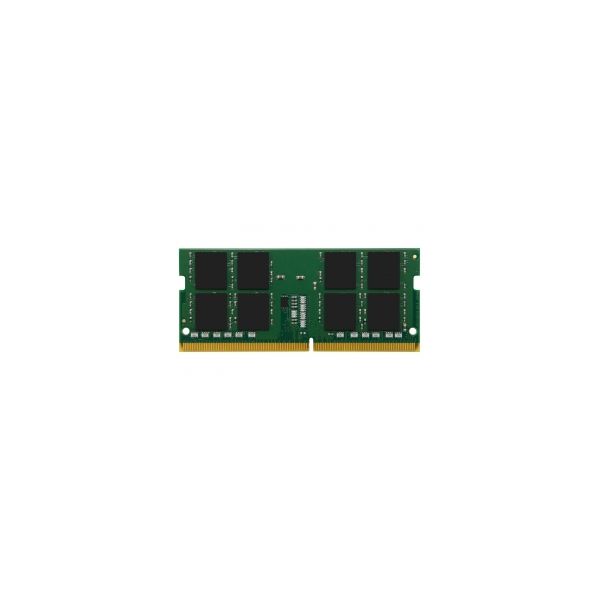

Kingston Technology ValueRAM KVR26S19S6/4 geheugenmodule 4 GB 1 x 4 GB DDR4 2666 MHz

Kingston Technology ValueRAM KVR26S19S6/4, 4 GB, 1 x 4 GB, DDR4, 2666 MHz, 260-pin SO-DIMM

Nog 11 beschikbaar

Fabrikant Kingston
MPN KVR26S19S6/4
EAN 0740617280647
€ 84,00 excl. BTW

Kingston Technology ValueRAM KVR26S19S6/4 geheugenmodule 4 GB 1 x 4 GB DDR4 2666 MHz

This document describes ValueRAM's KVR26S19S6/4 as a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin SODIMM uses gold contact fingers.
  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 8 internal banks; 2 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Unregistered (unbuffered)
CAS-latentie
19
Intern geheugen*
4 GB
Geheugenlayout (modules x formaat)*
1 x 4 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
2666 MHz
Component voor*
Notebook
Geheugen form factor*
260-pin SO-DIMM
ECC*
Nee
Geheugen rangschikking
1
Geheugen voltage
1.2 V
Duur row cycle
45,75 ns
Duur vernieuwen row cycle
350 ns
Duur row active
32 ns
Programmeerspanning (VPP)
2,5 V

Kenmerken

Land van herkomst
Taiwan

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 85 °C
Temperatuur bij opslag
-55 - 100 °C

Duurzaamheid

Duurzaamheidscertificaten
RoHS
Bevat geen
Halogeen

Gewicht en omvang

Breedte
69,6 mm
Diepte
2,45 mm
Hoogte
30 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
