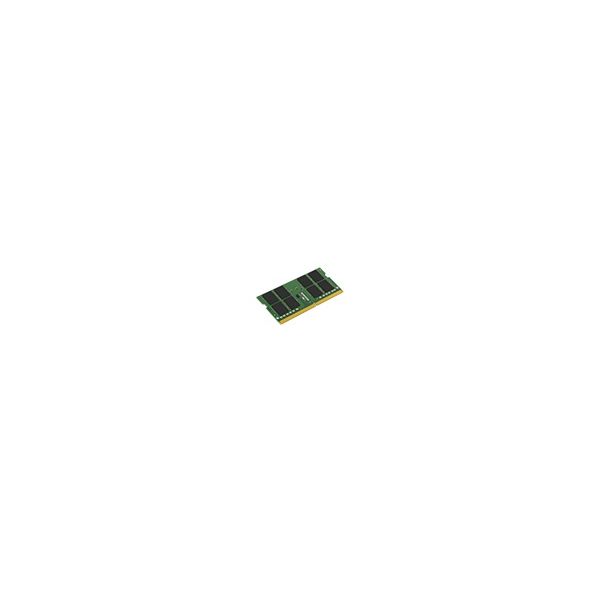

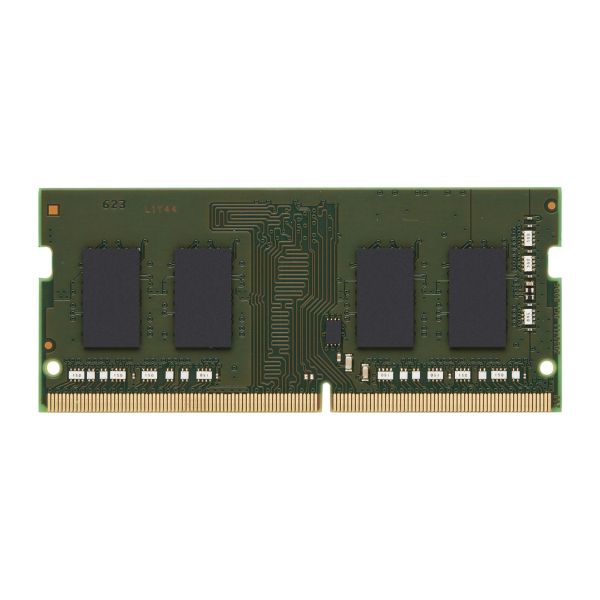

Kingston Technology ValueRAM KVR32S22D8/32 geheugenmodule 32 GB 1 x 32 GB DDR4 3200 MHz

Kingston Technology ValueRAM KVR32S22D8/32, 32 GB, 1 x 32 GB, DDR4, 3200 MHz, 260-pin SO-DIMM

Ruim op voorraad

Fabrikant Kingston
MPN KVR32S22D8/32
EAN 0740617310924
€ 56,00 excl. BTW

Kingston Technology ValueRAM KVR32S22D8/32 geheugenmodule 32 GB 1 x 32 GB DDR4 3200 MHz

ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Terminated control command and address bus

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Unregistered (unbuffered)
CAS-latentie
22
Intern geheugen*
32 GB
Geheugenlayout (modules x formaat)*
1 x 32 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
3200 MHz
Component voor*
Notebook
Geheugen form factor*
260-pin SO-DIMM
ECC*
Nee
Geheugen voltage
1.2 V
Duur row cycle
45,75 ns
Duur vernieuwen row cycle
350 ns
Duur row active
32 ns
Programmeerspanning (VPP)
2,5 V
Land van herkomst
Taiwan

Kenmerken

JEDEC-standaard
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 85 °C
Temperatuur bij opslag
-55 - 100 °C

Duurzaamheid

Duurzaamheidscertificaten
RoHS
Bevat geen
Halogeen

Gewicht en omvang

Breedte
69,6 mm
Diepte
3,7 mm
Hoogte
30 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
