Kingston Technology KVR32S22S8/16 geheugenmodule 16 GB 1 x 16 GB DDR4 3200 MHz

Kingston Technology KVR32S22S8/16, 16 GB, 1 x 16 GB, DDR4, 3200 MHz, 260-pin SO-DIMM

Ruim op voorraad

Fabrikant Kingston
MPN KVR32S22S8/16
EAN 0740617310894
€ 97,00 excl. BTW

Kingston Technology KVR32S22S8/16 geheugenmodule 16 GB 1 x 16 GB DDR4 3200 MHz

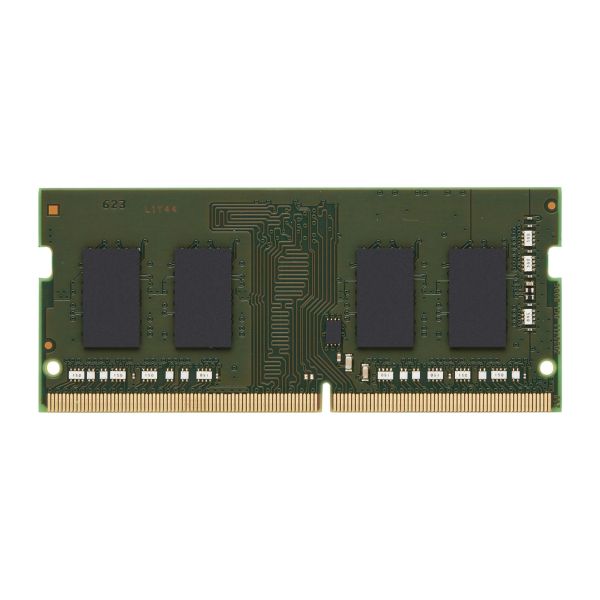

ValueRAM's KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for
  • data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8
  • via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Unregistered (unbuffered)
CAS-latentie
22
Intern geheugen*
16 GB
Geheugenlayout (modules x formaat)*
1 x 16 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
3200 MHz
Component voor*
Notebook
Geheugen form factor*
260-pin SO-DIMM

Kenmerken

ECC*
Nee
Land van herkomst
Taiwan

Gewicht en omvang

Breedte
69,6 mm
Hoogte
30 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
