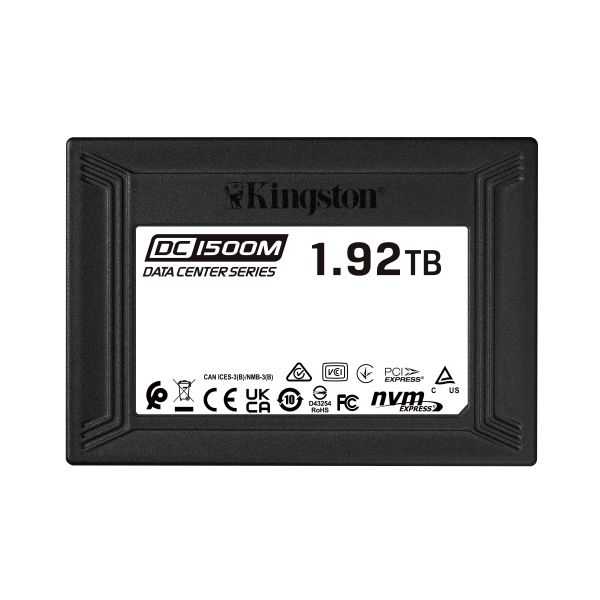

Kingston Technology DC1500M U.2 Enterprise SSD, 1920 GB, U.2, 3300 MB/s

Niet op voorraad

Fabrikant Kingston
MPN SEDC1500M/1920G
EAN 0740617320770

Kingston Technology DC1500M U.2 Enterprise SSD 1920 GB PCI Express 3.0 3D TLC NVMe

Kingston DC1500M U.2 NVMe SSD features high-storage capacity and enhanced enterprise performance. It offers a high-performance Gen 3.0 x4 PCIe NVMe design to deliver latency and IOPS consistency. DC1500M is backed by strict QoS requirements to ensure predictable random IO performance as well as predictable latencies over a wide range of workloads.

The U.2 form factor design (2.5”, 15mm) works seamlessly with the latest-generation servers and storage arrays utilising PCIe and U.2 backplanes. DC1500M is hot pluggable, eliminating the challenges of serviceable PCIe storage.

It boasts enterprise-class features such as end-to-end data path protection, namespace management, power loss protection (PLP) and telemetry monitoring for increased data center reliability. Backed by Kingston’s legendary pre- and post-sales support and a five-year limited warranty1. Capacities range from 960GB to 7.6TB2.

Applications

The "mixed-use" workload drive makes it ideal for running a wide range of customer applications including:

- Virtualisation
- High-performance cloud service
- Web hosting caching
- High-resolution media capture and transport
- ERP, CRM, GL, OLAP, OLTP, ERM, BI and EDW workloads

Data Center NVMe performance

Incredible I/O consistency with sustained speeds of up to 3GB/s and 510K IOPS.

Enterprise-class mixed-use storage

An exceptional balance of consistent I/O delivery with high read and write IOPS performance to manage a wide range of transactional workloads.

Reduce application latencies

Quality of Service (QoS) delivers ultra-low transactional latency for large data sets and various web-based applications.

On-board Power Loss Protection (PLP)

Enterprise-class protection to reduce the possibility of data loss or corruption on ungraceful power fails.
  • Enterprise-class U.2 PCIe NVMe Gen 3.0 x4 SSD
  • Exceptional speeds of up to 3GB/s
  • Predictable low latency and I/O consistency
  • On-board Power Loss Protection (PLP)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

SSD-vormfactor*
U.2
SSD capaciteit*
1920 GB
Interface*
PCI Express 3.0
Type geheugen*
3D TLC
NVMe*
Ja
Component voor*
PC/notebook
Leessnelheid
3300 MB/s
Schrijfsnelheid
2700 MB/s
Random read (4KB)
510000 IOPS
Random write (4KB)
220000 IOPS
Leeslatentie
110 µs
Schrijflatentie
206 µs
PCI Express interface data lanes
x4
Bescherming tegen spanningsverlies
Ja
Mean time between failures (MTBF)
2000000 uur
Endurance rating (voor 5 jaar)
1 GB/dag

Energie

Stroomverbruik (lezen)
6,63 W
Stroomverbruik (schrijven)
15,36 W
Gemiddeld stroomverbruik (lezen)
6,3 W
Gemiddeld stroomverbruik (schrijven)
13,7 W
Stroomverbruik (idle)
6,6 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Trillingen, in bedrijf
2,17 G
Trillingen bij opslag
20 G

Gewicht en omvang

Breedte
100,1 mm
Diepte
14,8 mm
Hoogte
69,8 mm
Gewicht
150 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717070
