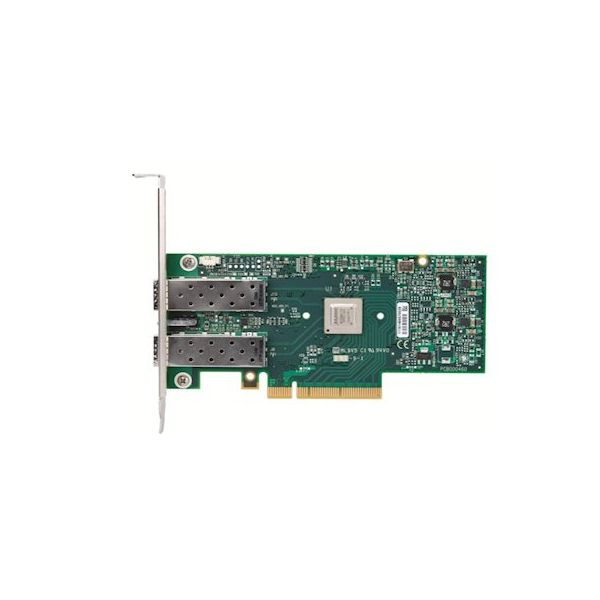

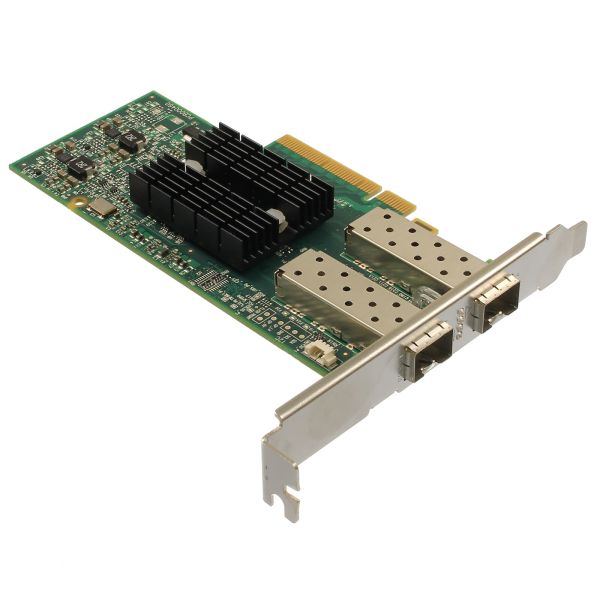

Lenovo 00D9690 netwerkkaart Intern Fiber 10000 Mbit/s

Lenovo 00D9690, Intern, Bedraad, PCI Express, Fiber, 10000 Mbit/s, Groen

Nog slechts 5 beschikbaar

Fabrikant Lenovo
MPN 00D9690
EAN 0883436375993
€ 278,00 excl. BTW

Lenovo 00D9690 netwerkkaart Intern Fiber 10000 Mbit/s

High-performance computing (HPC) solutions require high bandwidth, low latency components with CPU offloads to get the highest server efficiency and application productivity. The Mellanox ConnectX-3 and ConnectX-3 Pro network adapters for System x® servers deliver the I/O performance that meets these requirements.

Mellanox's ConnectX-3 and ConnectX-3 Pro ASIC delivers low latency, high bandwidth, and computing efficiency for performance-driven server applications. Efficient computing is achieved by offloading from the CPU routine activities, which makes more processor power available for the application. Network protocol processing and data movement impacts, such as InfiniBand RDMA and Send/Receive semantics, are completed in the adapter without CPU intervention. RDMA support extends to virtual servers when SR-IOV is enabled. Mellanox's ConnectX-3 advanced acceleration technology enables higher cluster efficiency and scalability of up to tens of thousands of nodes.
  • Two 10 Gigabit Ethernet ports
  • Low-profile form factor adapter with 2U bracket (3U bracket available for CTO orders)
  • PCI Express 3.0 x8 host-interface (PCIe 2.0 and 1.1 compatible)
  • SR-IOV support; 16 virtual functions supported by KVM and Hyper-V (OS dependant) up to a maximum of 127 virtual functions supported by the adapter
  • Enables Low Latency RDMA over Ethernet (supported with both non-virtualized and SR-IOV enabled virtualized servers) -- latency as low as 1 µs
  • TCP/UDP/IP stateless offload in hardware
  • Traffic steering across multiple cores
  • Intelligent interrupt coalescence
  • Industry-leading throughput and latency performance
  • Software compatible with standard TCP/UDP/IP stacks
  • Microsoft VMQ / VMware NetQueue support
  • Legacy and UEFI PXE network boot support
  • Supports iSCSI as a software iSCSI initiator in NIC mode with NIC driver
  • The Mellanox ConnectX-3 40GbE / FDR IB VPI Adapter has the following features:
  • Two QSFP ports supporting FDR-14 InfiniBand or 40 Gb Ethernet
  • Support for InfiniBand FDR speeds of up to 56 Gbps (auto-negotiation FDR-10, DDR and SDR)
  • Support for Virtual Protocol Interconnect (VPI), which enables one adapter for both InfiniBand and 10/40 Gb Ethernet. Supports three configurations:
  • 2 ports InfiniBand
  • 2 ports Ethernet
  • 1 port InfiniBand and 1 port Ethernet
  • Enables Low Latency RDMA over 40Gb Ethernet (supported with both non-virtualized and SR-IOV enabled virtualed servers) -- latency as low as 1 µs
  • Sub 1 µs InfiniBand MPI ping latency
  • Support for QSFP to SFP+ for 10 GbE support
  • Legacy and UEFI PXE network boot support (Ethernet mode only)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
2
PCI Card form factor
Full-height (low-profile)

Netwerk

Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba
Jumbo Frames ondersteuning
Ja
Jumbo frames
9600
VLAN-tagging
Ja
iSCSI support
Ja

Design

Kleur van het product
Groen
Intern*
Ja

Design

Certificering
EN55022 EN55024 EN60950-1 EN 61000-3-2 EN 61000-3-3 IEC 60950-1 FCC Part 15 Class A UL 60950-1 CSA C22.2 60950-1-07 VCCI NZ AS3548 / C-tick RRL for MIC (KCC) BSMI (EMC) IECS-003:2004 Issue 4
Compatibele producten
x3100 M5, x3250 M5, x3500 M5, x3550 M5, x3650 M5, x3850 X6/x3950 X6, nx360 M5

Minimale systeemeisen

Compatibele besturingssystemen
Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE LINUX Enterprise Server 10 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 12 VMware vSphere 5.0 (ESXi)* VMware vSphere 5.1 (ESXi)* VMware vSphere 5.5 (ESXi)* VMware vSphere 6.0 (ESXi)*

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Hoogte, in bedrijf
0 - 2133 m

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Verpakking

Aantal
1

Overige specificaties

Datastroombeheer
Ja
