Lenovo 00FM514, Managed, L2/L3

Nog 10 beschikbaar

Fabrikant Lenovo
MPN 00FM514
EAN 0883436674799

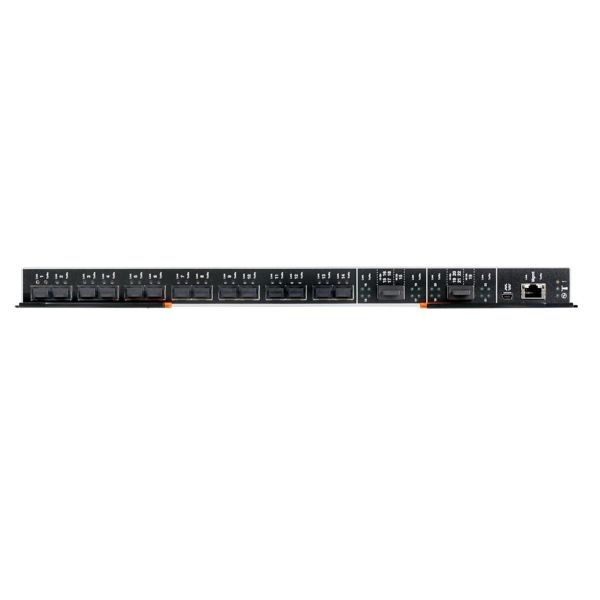

Lenovo 00FM514 netwerk-switch Managed L2/L3 Zwart

The Lenovo® Flex System Fabric EN4093R 10Gb Scalable Switch provides unmatched scalability, port flexibility, and performance. The switch also delivers innovations to help address several networking concerns today and provides capabilities that help you prepare for the future.

This switch can support up to 64x 10 Gb Ethernet connections while offering Layer 2/3 switching, in addition to OpenFlow and "easy connect" modes. It installs within the I/O module bays of the Flex System™ Enterprise Chassis. This switch can help clients migrate to a 10 Gb or 40 Gb Ethernet infrastructure, offers cloud-ready virtualization features (such as Lenovo Virtual Fabric and VMready®), and is Software Defined Network (SDN) ready.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Port mirroring
Ja
Verbindingsaggregatie
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
4095

Data-uitwisseling

MAC-adrestabel*
128000 entries
Statische route
Ja
Aantal statische routes
128

Beveiliging

DHCP-functies
DHCP relay
Access Control List (ACL)
Ja
IGMP snooping
Ja
Wachtwoordbeveiliging
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
SNMP V1,V3
Routing protocols
BGP, OSPF, RIP

Design

Kleur van het product
Zwart
Certificering
United States FCC 47 CFR Part 15, Subpart B, ANSI C63.4 (2003), Class A IEC/EN 60950-1, Second Edition Canada ICES-003, issue 4, Class A Japan VCCI, Class A Australia/New Zealand AS/NZS CISPR 22:2006, Class A Taiwan BSMI CNS13438, Class A CE Mark (EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3) CISPR 22, Class A China GB 9254-1998 Turkey Communique 2004/9; Communique 2004/22 Saudi Arabia EMC.CVG, 28 October 2002

Prestatie

Mean time between failures (MTBF)
236805 uur

Gewicht en omvang

Breedte
401 mm
Diepte
317 mm
Hoogte
30 mm
Gewicht
3,7 kg

Verpakking

Breedte verpakking
508 mm
Diepte verpakking
432 mm
Hoogte verpakking
114 mm
Gewicht verpakking
4,1 kg
