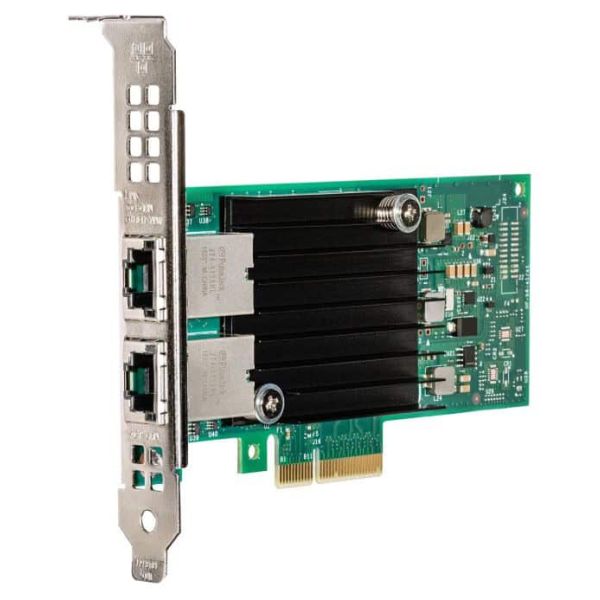

Lenovo 00MM860 netwerkkaart Intern Ethernet 10000 Mbit/s
The Intel X550 10GBASE-T Adapter is a low cost, low power 10 GbE performance adapter suitable for all data center applications. With support for standard CAT 6a cabling with RJ45 connectors, the X550 offers a low barrier of entry to 10 Gb Ethernet networking.
This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
2
PCI Card form factor
Full-height (low-profile)
Netwerk
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Jumbo Frames ondersteuning
Ja
Jumbo frames
9500
VLAN-tagging
Ja
LAN controller
Intel® X550
Design
Component voor*
Server
Kleur van het product
Zwart, Groen
Intern*
Ja
LED-indicatoren
Ja
Minimale systeemeisen
Compatibele besturingssystemen
Microsoft Windows Server 2012 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2016
Red Hat Enterprise Linux 6 Server x64 Edition
Red Hat Enterprise Linux 7
SUSE Linux Enterprise Server 12
SUSE Linux Enterprise Server 11 for AMD64/EM64T
SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T
SUSE Linux Enterprise Server 12 with Xen
VMware ESXi 5.5
VMware ESXi 6.0
VMware ESXi 6.5
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
5 - 55 °C
Temperatuur bij opslag
-40 - 85 °C
Hoogte, in bedrijf
0 - 3048 m
Duurzaamheid
Duurzaamheidscertificaten
RoHS
Gewicht en omvang
Breedte
16 mm
Diepte
134 mm
Hoogte
69 mm
Verpakking
Aantal
1
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Datastroombeheer
Ja
Intel® Virtualization Technology (Intel® VT)
VT-c
Intel® Virtual Machine Device Queues (VMDq)
Ja
Intel® Flexible Port Partitioning
Ja
Receive Side Scaling (RSS)
Ja
