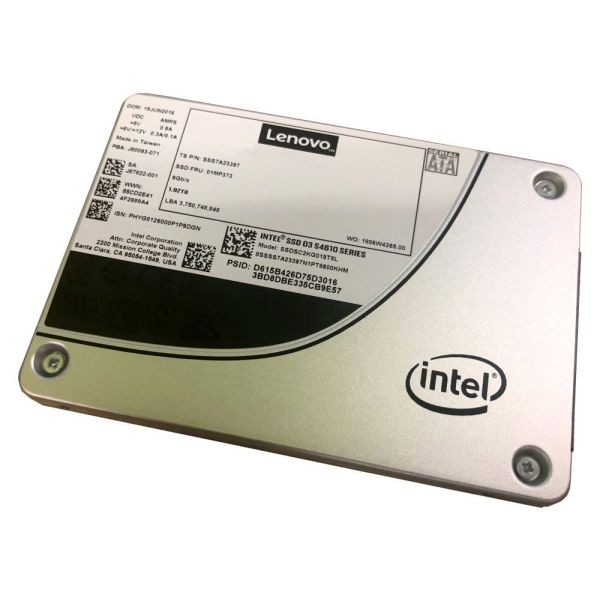

Lenovo 4XB7A13637 internal solid state drive 2.5" 3840 GB SATA III TLC 3D NAND
The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
This product guide provides essential presales information to understand the S4610 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4610 SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the S4610 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4610 SSDs and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
SSD-vormfactor*
2.5"
SSD capaciteit*
3840 GB
Interface*
SATA III
Type geheugen*
TLC 3D NAND
Component voor*
Server/werkplaats
Random read (4KB)
96000 IOPS
Random write (4KB)
42000 IOPS
Leeslatentie
36 µs
Schrijflatentie
37 µs
S.M.A.R.T. support
Ja
Mean time between failures (MTBF)
2000000 uur
Certificering
FCC Title 47, Part 15B, Class B
CA/CSA-CEI/IEC CISPR 22:02
EN 55024: 1998
EN 55022: 2006
EN-60950-1 2nd Edition
UL/CSA EN-60950-1 2nd Edition
Low Voltage Directive 2006/95/EC
C-Tick: AS/NZS3584
BSMI: CNS 13438
KCC Article 11.1
RoHS DIRECTIVE 2011/65/EU
WEEE Directive 2002/96/EC
Compatibele producten
ThinkSystem
Energie
Vermogensverbruik (max)
3,7 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Maximale hoogte, in gebruik
3050 m
Gewicht en omvang
Breedte
70 mm
Diepte
100 mm
Hoogte
7 mm
Gewicht
63 g
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84717070
