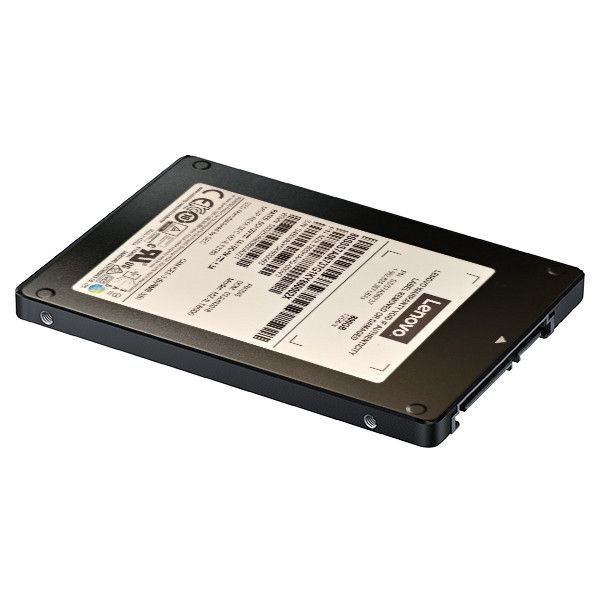

Lenovo 4XB7A17063 internal solid state drive 2.5" 1600 GB SAS

Lenovo 4XB7A17063, 1600 GB, 2.5", 1000 MB/s, 12 Gbit/s

Niet op voorraad

Fabrikant Lenovo
MPN 4XB7A17063
EAN 0889488510955
€ 1.476,00 excl. BTW

Lenovo 4XB7A17063 internal solid state drive 2.5" 1600 GB SAS

The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 3.2 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.

This product guide provides essential presales information to understand the Mainstream 12Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.

The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 3.2 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.

The PM1645a SSDs are the follow-on to the PM1645 SSDs and offer improved random write performance.
  • Mainstream server SSD suitable for mixed read-write-intensive workloads
  • Endurance of 3 drive-writes per day (DWPD)
  • SAS 12 Gbps interface
  • Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture
  • Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
  • End-to-end data protection
  • Support 16 Initiator with Tag Command Queuing (TCQ) Command Set with a queue-depth of up to 128 commands
  • Compliant with SCSI Specification (SAS-3 / SPL-3 / SBC-4 / SPC-4 / SAM-5)
  • RoHS Compliant

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

SSD-vormfactor*
2.5"
SSD capaciteit*
1600 GB
Interface*
SAS
NVMe*
Nee
Component voor*
Server/werkplaats
Overdrachtssnelheid
12 Gbit/s
Leessnelheid
1000 MB/s
Schrijfsnelheid
1000 MB/s
Random read (4KB)
230 IOPS
Random write (4KB)
130 IOPS
Leeslatentie
120 µs
Schrijflatentie
45 µs
S.M.A.R.T. support
Ja
Hot-swap
Ja
End-to-End Data Protection
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read

Kenmerken

Mean time between failures (MTBF)
2000000 uur

Energie

Stroomverbruik (lezen)
9 W
Stroomverbruik (schrijven)
9 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Gewicht
140 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717070
