Lenovo 4XB7A17087, 240 GB, 2.5", 540 MB/s, 6 Gbit/s

Nog 10 beschikbaar

Fabrikant Lenovo
MPN 4XB7A17087
EAN 0889488511112

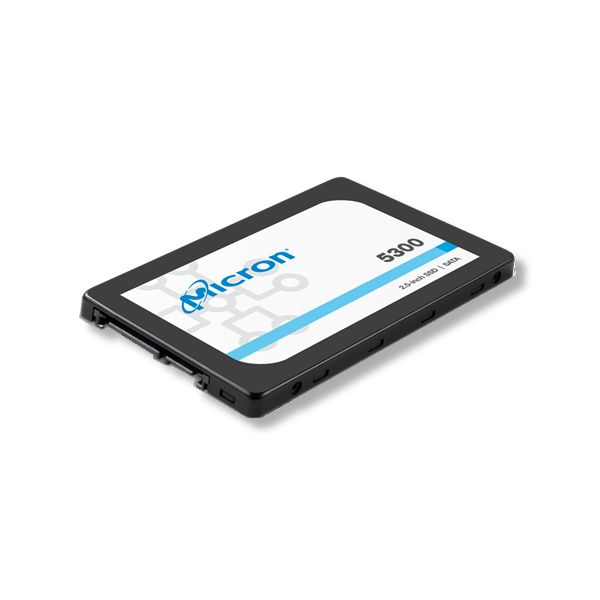

Lenovo 4XB7A17087 internal solid state drive 2.5" 240 GB SATA III 3D TLC NAND

The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for mixed read/write workloads.

This product guide provides essential presales information to understand the 5300 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.

The ThinkSystem 5300 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron 96-layer 3D NAND flash memory technology with a 6Gbps SATA interface. They provide an affordable solution for mixed read/write applications such as cache in transactional applications and high-speed storage for enterprise databases.
  • Industry standard 2.5-inch or 3.5-inch form factors
  • New generation 96-layer 3D TLC NAND flash memory
  • 6 Gbps SATA host interface
  • High reliability and enhanced ruggedness
  • MTTF of 3 million device hours - 50% more than most drives
  • Absence of moving parts to reduce potential failure points in the server
  • S.M.A.R.T. support
  • Advanced Encrypting Standard (AES) 256-bit encryption

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Ondersteunde beveiligingsalgoritmen
256-bit AES
SSD-vormfactor*
2.5"
SSD capaciteit*
240 GB
Interface*
SATA III
Type geheugen*
3D TLC NAND
NVMe*
Nee
Component voor*
Server/werkplaats
Hardware encryptie*
Ja
Overdrachtssnelheid
6 Gbit/s
Leessnelheid
540 MB/s
Schrijfsnelheid
380 MB/s
Random read (4KB)
82 IOPS
Random write (4KB)
60 IOPS
Leeslatentie
175 µs
Schrijflatentie
300 µs
Hot-swap
Ja

Kenmerken

Mean time between failures (MTBF)
3000000 uur

Energie

Stroomverbruik (lezen)
2,5 W
Stroomverbruik (schrijven)
3 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Gewicht
70 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717070
