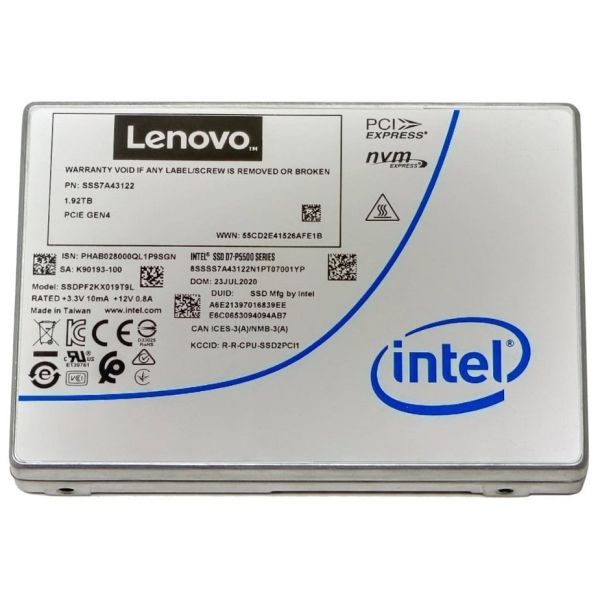

Lenovo 4XB7A17145 internal solid state drive U.2 1,92 TB PCI Express 4.0 TLC 3D NAND NVMe
Lenovo 4XB7A17145, 1,92 TB, U.2
Niet op voorraad
Fabrikant
Lenovo
MPN
4XB7A17145
EAN
0889488525881
€ 2.679,00
excl. BTW
€ 2.679,00
excl. BTW
excl. BTW
Lenovo 4XB7A17145 internal solid state drive U.2 1,92 TB PCI Express 4.0 TLC 3D NAND NVMe
The Intel SSD D7-P5500 Series Entry NVMe SSDs are general-purpose yet high-performance drives with a PCIe 4.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the Intel P5500 SSDs and consider their use in IT solutions.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the Intel P5500 SSDs and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
SSD-vormfactor*
U.2
SSD capaciteit*
1,92 TB
Interface*
PCI Express 4.0
Type geheugen*
TLC 3D NAND
NVMe*
Ja
Component voor*
Server/werkplaats
Random read (4KB)
400000 IOPS
Random write (4KB)
59000 IOPS
Willekeurige latentie - lezen (tot)
78 µs
Willekeurige latentie - schrijven (tot)
22 µs
Sequentiële latentie - lezen (tot)
10 µs
Sequentiële latentie - schrijven (tot)
12 µs
S.M.A.R.T. support
Ja
Hot-swap
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read
Mean time between failures (MTBF)
2000000 uur
Certificering
FCC Title 47, Part 15B, Class B
CA/CSA-CEI/IEC CISPR 22:02
EN 55024: 1998
EN 55022: 2006
EN-60950-1 2nd Edition
UL/CSA EN-60950-1 2nd Edition
Low Voltage Directive 2006/95/EC
C-Tick: AS/NZS3584
BSMI: CNS 13438
KCC Article 11.1
RoHS DIRECTIVE 2011/65/EU
WEEE Directive 2002/96/EC
Energie
Stroomverbruik (lezen)
8,5 W
Stroomverbruik (schrijven)
15 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Trillingen, in bedrijf
2,17 G
Schokbestendigheid
1000 G
Maximale hoogte, in gebruik
3048 m
Technische details
Duurzaamheidscertificaten
TCO
Gewicht en omvang
Breedte
70 mm
Diepte
100 mm
Hoogte
15 mm
Gewicht
146 g
Overige specificaties
Uithoudingsrating
3,5 PB
