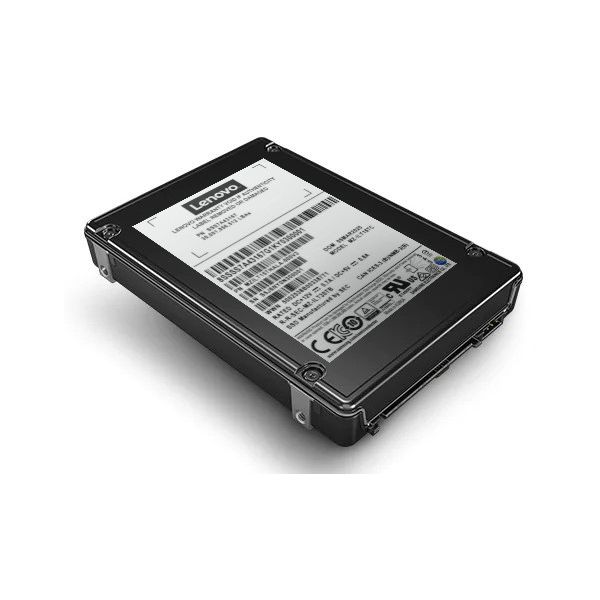

Lenovo 4XB7A80321 internal solid state drive 2.5" 7,68 TB SAS V-NAND TLC

Lenovo 4XB7A80321, 7,68 TB, 2.5", 24 Gbit/s

Niet op voorraad

Fabrikant Lenovo
MPN 4XB7A80321
EAN 0889488600557
€ 6.467,00 excl. BTW

Lenovo 4XB7A80321 internal solid state drive 2.5" 7,68 TB SAS V-NAND TLC

The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs, in capacities of up to 30.72 TB, are next-generation high-performance 24Gb SAS self-encrypting SSDs (SEDs) suitable for a wide range of applications of running on ThinkSystem servers.

This product guide provides essential presales information to understand the PM1653 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the PM1653 SSDs and consider their use in IT solutions.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

SSD-vormfactor*
2.5"
SSD capaciteit*
7,68 TB
Interface*
SAS
Type geheugen*
V-NAND TLC
NVMe*
Nee
Component voor*
Server/werkplaats
Hardware encryptie*
Ja
Overdrachtssnelheid
24 Gbit/s
Random read (4KB)
420000 IOPS
Random write (4KB)
110000 IOPS
Willekeurige latentie - lezen (tot)
120 µs
Willekeurige latentie - schrijven (tot)
45 µs
S.M.A.R.T. support
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read
Mean time between failures (MTBF)
2000000 uur
Certificering
UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI

Energie

Stroomverbruik (lezen)
11,5 W
Stroomverbruik (schrijven)
14,7 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Trillingen bij opslag
20 G
Schokbestendigheid (buiten gebruik)
1500 G
Maximale hoogte, in gebruik
4572 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
70 mm
Diepte
100 mm
Hoogte
15 mm
Gewicht
160 g
