Lenovo 4XC1K20993 netwerkkaart Intern WWAN 1000 Mbit/s

Lenovo 4XC1K20993, Intern, Draadloos, M.2, WWAN, 1000 Mbit/s

Niet op voorraad

Fabrikant Lenovo
MPN 4XC1K20993
EAN 0195892069225
€ 117,00 excl. BTW

Lenovo 4XC1K20993 netwerkkaart Intern WWAN 1000 Mbit/s

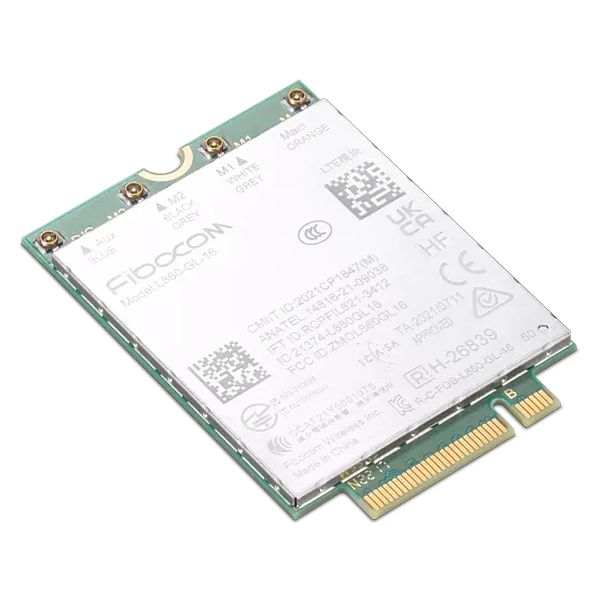

ThinkPad Fibocom L860 CAT16 4G LTE WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
  • Fibocom L860-GL-16
  • 4G WWAN module
  • Dimension: 30 mm x 42 mm x 2.3 mm
  • Interface: M.2 Key-B
  • Supports LTE FDD/LTE TDD/WCDMA systems
  • Support 4x4 MIMO
  • Support Windows 10 and Windows 11

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Draadloos
Hostinterface*
M.2
Interface*
WWAN

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
3G standaarden
WCDMA
4G standaard
LTE-TDD & LTE-FDD
Generatie mobiel internet
4G
MU-MIMO
Ja

Design

Component voor*
PC/notebook
Intern*
Ja
Antenne-ontwerp
Intern
Certificering
CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
Compatibele producten
ThinkPad X1 Carbon Gen 10

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 11

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 65 °C
Temperatuur bij opslag
-40 - 85 °C

Gewicht en omvang

Breedte
30 mm
Diepte
42 mm
Hoogte
2,3 mm
Gewicht
6,2 g

Verpakking

Breedte verpakking
53 mm
Diepte verpakking
144 mm
Hoogte verpakking
177 mm
Gewicht verpakking
30 g
