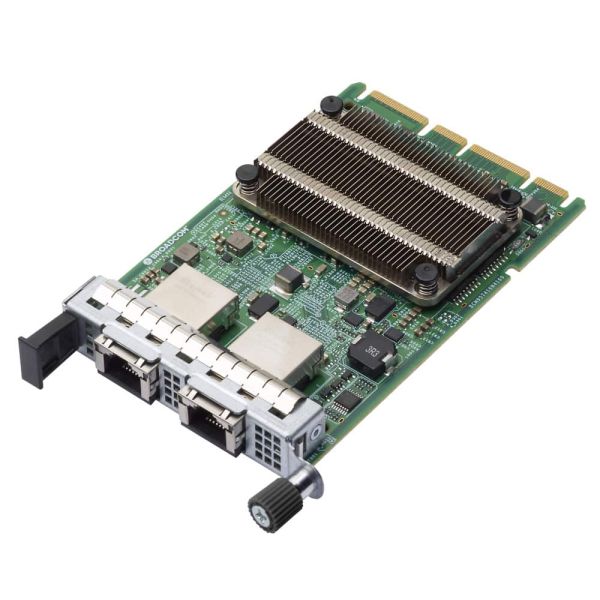

Lenovo 4XC7A08236 netwerkkaart Intern Ethernet 10000 Mbit/s
The Broadcom 57416 10Gb BASE-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
2
PCI versie
3.0
Netwerk
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3an
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
1000,10000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Design
Component voor*
Server
Design
Intern*
Ja
Antenne
Nee
Vormfactor
OCP 3.0
Certificering
CE/European Union EN60950-1
UL/USA UL60950-1
CTUVus UL
Canada: CSA 22.2 No. 950
Taiwan: CNS14336 Class A
EN55022:2010 + *AC:2011 Class A
EN55024 Class A
FCC CFR47, Part 15 Class A
Canada: ICES-003 Class A
Australia, New Zealand: EN 5022:2010 + *AC:2011
Taiwan: BSMI CNS13438 Class A
South Korea: MIC RRL KN22 Class A
South Korea: KN24 (ESD)
Japan: VCCI V-3 04/2014
EN55024:2010 Air/Direct discharge
Minimale systeemeisen
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Eisen aan de omgeving
Temperatuur bij opslag
-40 - 65 °C
Luchtvochtigheid bij opslag
5 - 95 procent
Gewicht en omvang
Breedte
76 mm
Diepte
115 mm
