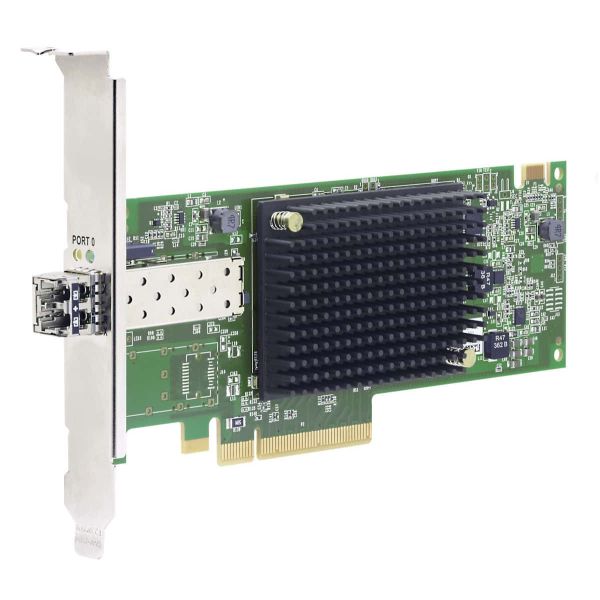

Lenovo 4XC7A76498 netwerkkaart Intern Fiber 32000 Mbit/s
Lenovo 4XC7A76498, Intern, Bedraad, PCI Express, Fiber, 32000 Mbit/s, Zwart, Groen, Roestvrijstaal
Niet op voorraad
Fabrikant
Lenovo
MPN
4XC7A76498
EAN
0889488586707
€ 1.655,00
excl. BTW
€ 1.655,00
excl. BTW
excl. BTW
Lenovo 4XC7A76498 netwerkkaart Intern Fiber 32000 Mbit/s
The next generation Emulex 32 Gb LPe35000/LPe35002 1-port and 2-port Fibre Channel host bus adapters for ThinkSystem servers are an ideal solution when requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications.
This product guide describes the Emulex HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
This product guide describes the Emulex HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
1
Vezel-optische connector
SFP+
PCI versie
4.0
Netwerk
Maximale overdrachtssnelheid van gegevens*
32000 Mbit/s
Design
Component voor*
Server
Kleur van het product
Zwart, Groen, Roestvrijstaal
Intern*
Ja
Hot-plug ondersteuning
Ja
Certificering
AS/NZS CISPR22:2009+A1, Class A, Australian EMC Framework (RCM), China RoHS compliant, cUR recognized to CSA 22.2, No. 60950-1-07, EN55022:2010, Class A, EN55024:2010, EN55032:2012, EU (CE Mark), FCC Rules, Part 15, Class A, Industry Canada, ICES-003, Class A, Japan VCCI, Class A, Korea MSIP, Class A, RoHS Compliant (Directive 2011/65/EU), TUV certified to EN60950-1+A11+A1+A12+A2, Taiwan BSMI, Class A, UL recognized to UL60950-1 2nd Edition
Compatibele producten
SR630 (7X01/7X02), SR650 (7X05/7X06), SR635 (7Y98 / 7Y99), SR655 (7Y00 / 7Z01), SR850 (7X18/7X19), SR860 (7X69/7X70), SR950 (7X11/12/13)
Minimale systeemeisen
Compatibele besturingssystemen
Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 8.0, VMware vSphere Hypervisor (ESXi) 6.7 U1, VMware vSphere Hypervisor (ESXi) 6.7 U2, VMware vSphere Hypervisor (ESXi) 6.7 U3
Ondersteunde server operating systems
SUSE Linux Enterprise Server 12, Windows Server 2016, Windows Server 2019
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-20 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Gewicht en omvang
Breedte
69 mm
Diepte
168 mm
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Maximale temperatuur (in bedrijf)
55 °C
