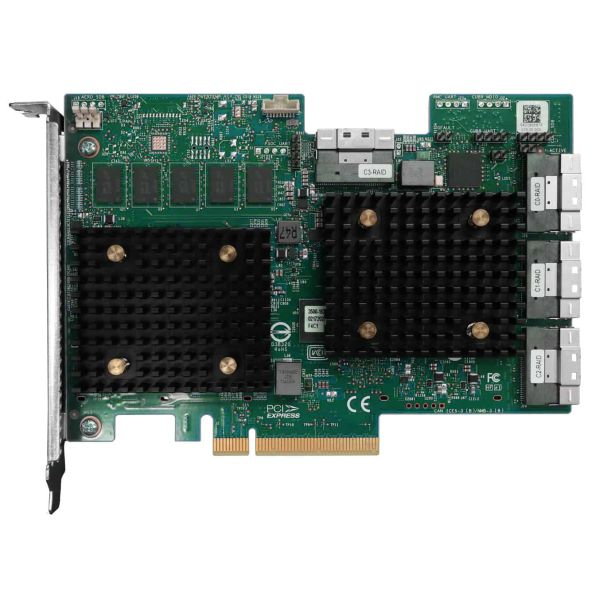

Lenovo 4Y37A09733 RAID controller PCI Express x8 4.0 12 Gbit/s
Lenovo 4Y37A09733, SAS, SATA, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, 12 Gbit/s, MegaRAID 9367-32i 8G, USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS...
Nog slechts 4 beschikbaar
Fabrikant
Lenovo
MPN
4Y37A09733
EAN
0889488526529
€ 3.797,00
excl. BTW
€ 3.797,00
excl. BTW
excl. BTW
Lenovo 4Y37A09733 RAID controller PCI Express x8 4.0 12 Gbit/s
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
This product guide provides essential presales information to understand the ThinkSystem RAID 940-8i, 16i and 32i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem RAID 940-8i, 16i and 32i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Ondersteunde opslagstationinterfaces*
SAS, SATA
Hostinterface*
PCI Express x8
PCI Express slots versie
4.0
Prestatie
Soorten RAID*
0, 1, 5, 6, 10, 50, 60
Overdrachtssnelheid
12 Gbit/s
SSD-ondersteuning
Ja
Chipset
MegaRAID 9367-32i 8G
JBOD-functie
Ja
S.M.A.R.T. support
Ja
Number of devices supported
32
Prestatie
Hot-swap
Ja
Certificering
USA (FCC 47 CFR part 15 Subpart B, class B)
Canada (ICES -003, Class B)
Taiwan (CNS 13438)
Japan (VCCI V-3)
Australia/New Zealand (AS/NZS CISPR 22)
Korea (RRA no 2013-24 & 25)
Europe (EN55022/EN55024)
Safety: EN/ IEC/ UL 60950
RoHS
WEEE
Minimale systeemeisen
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
10 - 55 °C
Temperatuur bij opslag
-40 - 105 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
5 - 95 procent
