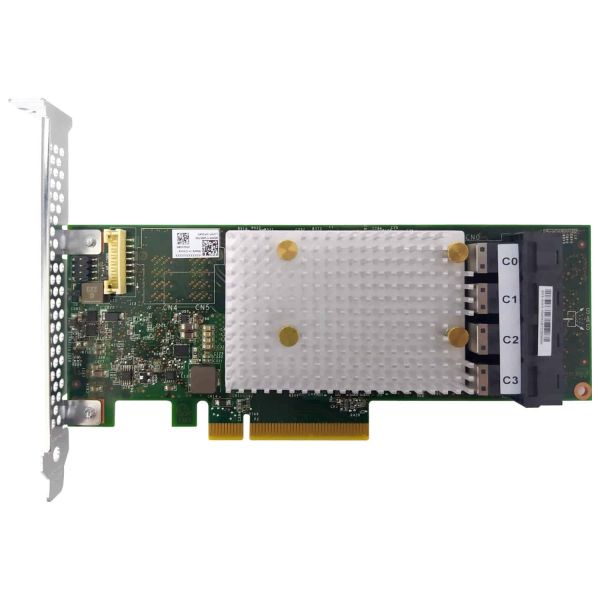

Lenovo 4Y37A72485 RAID controller PCI Express x8 3.0 12 Gbit/s
Lenovo 4Y37A72485, SAS, SATA, PCI Express x8, 0, 1, 10, 5, 50, 6, 60, 12 Gbit/s, 4000 MB, Microchip Luxor ROC PM8236
Nog slechts 9 beschikbaar
Fabrikant
Lenovo
MPN
4Y37A72485
EAN
0889488588039
€ 1.499,00
€ 1.024,00
excl. BTW
€ 1.499,00
€ 1.024,00
excl. BTW
excl. BTW
Lenovo 4Y37A72485 RAID controller PCI Express x8 3.0 12 Gbit/s
The ThinkSystem RAID 9350 family of internal 12 Gbps SAS RAID controllers are high-performance low-cost RAID-on-chip (ROC) adapters that are designed and manufactured by Lenovo. These adapters support all major RAID levels including RAID-6 and RAID-60, and include support for Lenovo management tools.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem RAID 9350-16i and 9350-8i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Ondersteunde opslagstationinterfaces*
SAS, SATA
Hostinterface*
PCI Express x8
PCI Express slots versie
3.0
Prestatie
Soorten RAID*
0, 1, 10, 5, 50, 6, 60
Overdrachtssnelheid
12 Gbit/s
SSD-ondersteuning
Ja
Intern geheugen
4000 MB
Chipset
Microchip Luxor ROC PM8236
JBOD-functie
Ja
Number of devices supported
16
Hot-swap
Ja
Prestatie
Certificering
FCC Part 15 Class A
Australia/New Zealand (AS/NZS 3548)
Canada (ICES-003 Class B)
Europe (EN55032/EN55024)
Japan VCCI
Korea KCC
RoHS compliant
EN/IEC/UL 60950
USA (FCC 47 CFR part 15 Subpart B class B)
Minimale systeemeisen
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Gewicht en omvang
Breedte
167 mm
Hoogte
64 mm
