Lenovo 4Y37A78602, PCIe, SAS, SATA, Man, Low-profile, PCIe 4.0, Server

Nog slechts 4 beschikbaar

Fabrikant Lenovo
MPN 4Y37A78602
EAN 0889488593972

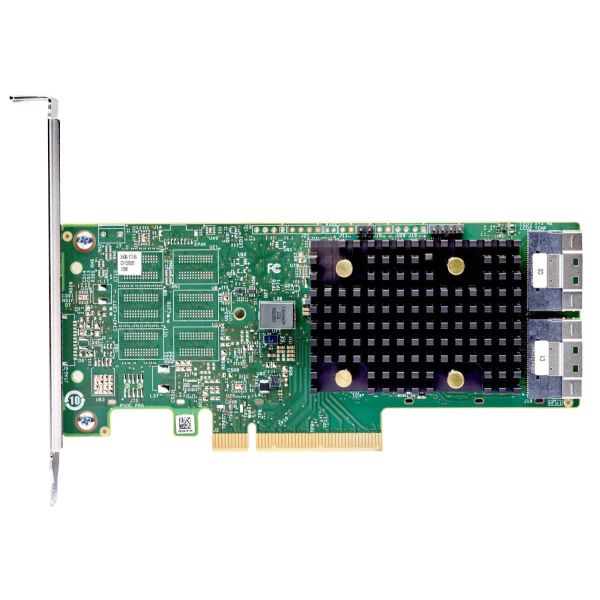

Lenovo 4Y37A78602 interfacekaart/-adapter Intern SAS, SATA

The ThinkSystem 440-8i and 440-16i SAS/SATA PCIe Gen4 12Gb HBAs are high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. The adapters integrate the latest enhancements SAS technology and offer 8 or 16 lanes of 12 Gbps SAS.

This product guide provides essential presales information to understand the ThinkSystem HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Gastheerinterface geslacht
Man
Output interface*
SAS, SATA
Uitbreidingskaart vormfactor
Low-profile
Uitbreidingskaartstandaard
PCIe 4.0

Design

Intern*
Ja
Bedoeld voor
Server
Type koeling
Passief

Design

Certificering
USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE

Kenmerken

Data transfer snelheid (max)
12 Gbit/s

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 55 °C
Temperatuur bij opslag
-40 - 105 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
5 - 95 procent
