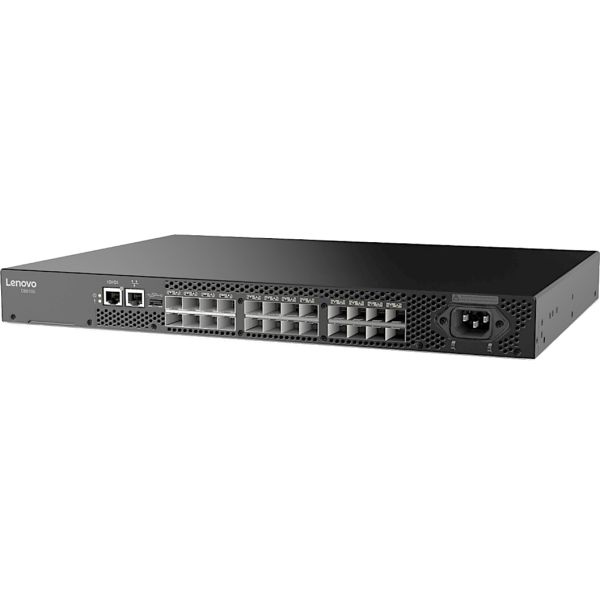

Lenovo DB610S Gigabit Ethernet (10/100/1000) 1U Zwart

Lenovo DB610S, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, 1U

Niet op voorraad

Fabrikant Lenovo
MPN 6559F2A
EAN 0889488473274
€ 5.512,00 excl. BTW

Lenovo DB610S Gigabit Ethernet (10/100/1000) 1U Zwart

Lenovo TS DB610S 8 ports w/16Gb SWL SFP railkit

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
2
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal geïnstalleerde SFP+ modules*
8
Aantal moduleslots SPF+
24
Aantal USB 2.0-poorten
1
Netstekker
AC-in-aansluiting

Netwerk

10G support*
Ja
Port mirroring
Ja
Full duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
14,025 Gbit/s
Throughput
768000 Mpps

Beveiliging

Access Control List (ACL)
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, IPSec, SSH, SSL/TLS
SSH/SSL support
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Aantal ventilatoren
4 ventilator(en)

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
Aantal voedingen
1
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
150 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
10 - 90 procent
Hoogte, in bedrijf
0 - 3000 m
Hoogte bij opslag
0 - 12000 m

Gewicht en omvang

Breedte
429 mm
Diepte
307 mm
Hoogte
43 mm
Gewicht
42 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Netvoeding
150 W
