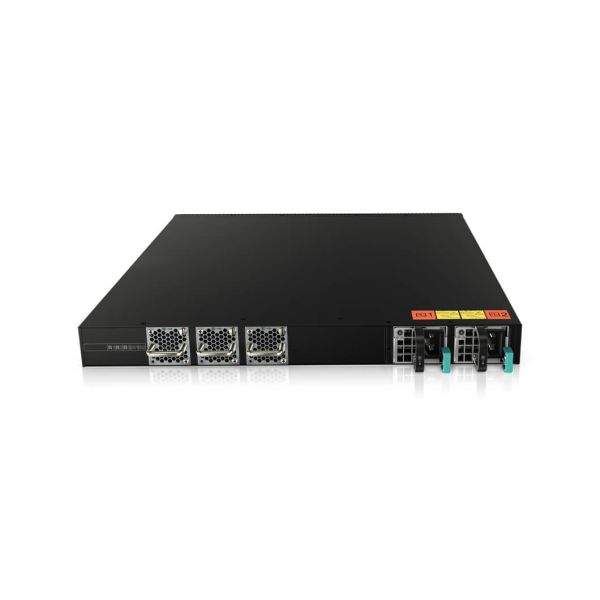

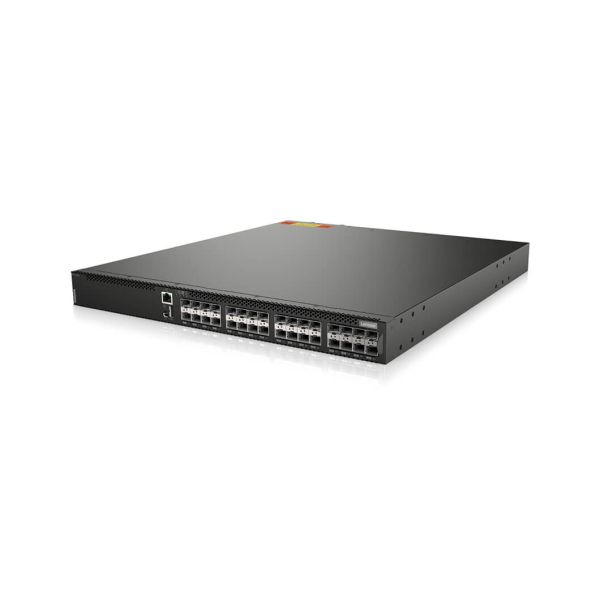

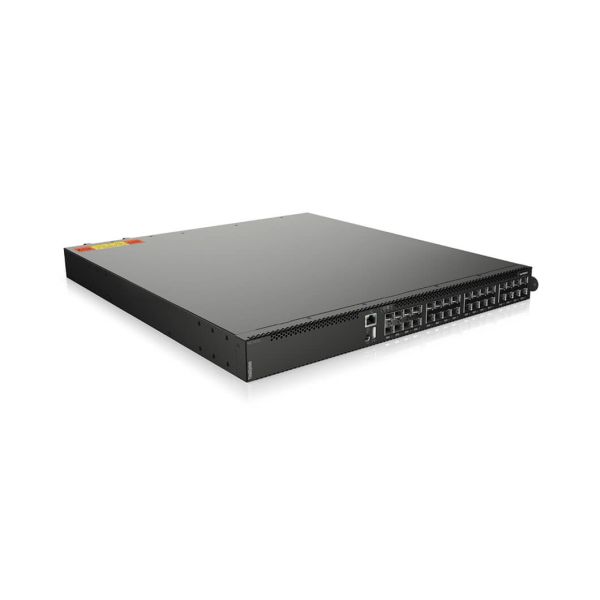

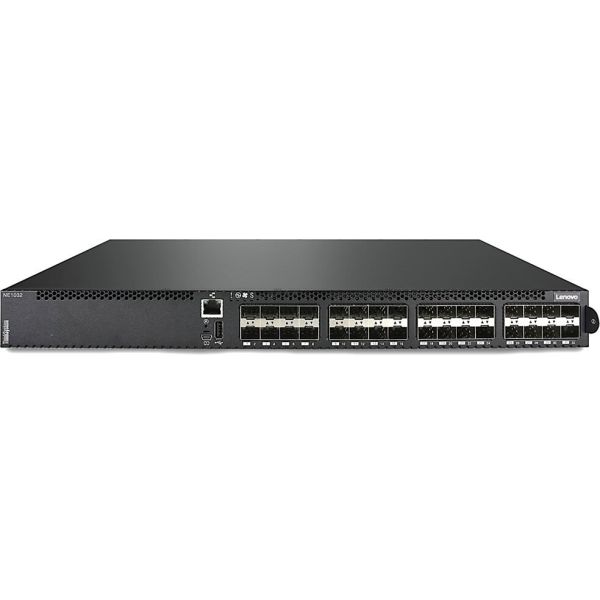

Lenovo NE1032 Managed L2/L3 1U Zwart

Lenovo NE1032, Managed, L2/L3, Full duplex, Rack-montage, 1U

Niet op voorraad

Fabrikant Lenovo
MPN 7159A2X
EAN 5415247214694
€ 5.685,00 excl. BTW

Lenovo NE1032 Managed L2/L3 1U Zwart

Better together
The Lenovo ThinkSystem NE1032 RackSwitch is part of the Lenovo Top of Rack (ToR) RackSwitch enterprise switch family, tested and validated with Lenovo reference architectures to provide the best integration possible for Lenovo servers, storage, and networking in the data center. RackSwitches interoperate seamlessly with other vendors' hardware and management. In addition, Lenovo XClarity provides easy single-pane-of-glass management for the Lenovo data center.

Data center optimized networking
The NE1032 is optimized for enterprise data centers with features, such as:

- Software Defined Data Center interfaces ensure smooth interoperability with popular enterprise management applications.
- Nutanix Prism with Lenovo ThinkAgile Network Orchestrator automates vlan changes to improve uptime and network security.
- VMware vRealize Log Insight collects logs and events to determine root cause and produce reports across multiple devices and vendors.
- VMware vRealize Network Orchestrator helps deploy workflows to automate complex IT processes.
- As a Microsoft Azure Stack solution partner, BGP, DCP, and switch-independent teaming deliver seamless interoperability.
- Open Architecture: NE1032 supports automation and control while integrating with industry-standard applications and APIs, such as REST, OpenStack, OpenContrail, and Ansible.
- OpenStack controls diverse pools of processing, storage, and networking resources throughout the data center.
- Ansible, Puppet, and Chef automation integration frees up operations teams for more strategic work.
- Resiliency: NE1032 offers outstanding fault tolerance with one of the quickest high-availability failovers in the industry.

Low TCO
NE1032 is an extremely cost-effective switch for low-end 10GbE hybrid cloud data center applications. It offers the following reduced costs:

- All software, management plugins, and XClarity Administrator are included in the purchase price.
- Switches come with a 3-year warranty and include free software updates and upgrades.
- Lower power consumption reduces operating expenses.
  • Lenovo Cloud NOS high-performance architecture providing flexibility and eliminating vendor lock-in
  • Lower TCO than previous Lenovo RackSwitches
  • Outstanding fault tolerance
  • Leading-edge technology with faster performance, lower cost, and better energy-efficiency than previous generations
  • VM automation
  • Deep buffer inspection
  • NSX Gateway (planned)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal moduleslots SPF+
32
Console port
RJ-45/Mini-USB
Aantal USB 2.0-poorten
1
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Port mirroring
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN
Aantal VLANs
4095

Data-uitwisseling

Switchingcapaciteit*
10 Gbit/s
Throughput
640000 Mpps
MAC-adrestabel*
208000 entries
Latentie (10 Gbps)
0,76 µs
Statische route
Ja
Aantal statische routes
256
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216
Packet buffergeheugen
12 MB

Beveiliging

Access Control List (ACL)
Ja
Toegangsbeheerlijst (ACL) uitgaand
512
Toegangsbeheerlijst (ACL) inkomend
3072

Beveiliging

Ondersteunde beveiligingsalgoritmen
802.1x RADIUS, SNMP, SNMPv3, SSH

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
IPv4, IPv6
Routing protocols
IP, VRRP

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Reset button
Ja
Ventilatiesysteem
Luchtstroom van voren naar achteren
Aantal ventilatoren
3 ventilator(en)

Prestatie

Mean time between failures (MTBF)
196927 uur

Energie

Vermogenstoevoer inclusief*
Ja
Redundante voeding
Ja
Aantal voedingen
2
AC-ingangsspanning
100 - 240 V

Gewicht en omvang

Breedte
441 mm
Diepte
487 mm
Hoogte
44 mm
Gewicht
10,7 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Netvoeding
770 W
