Lenovo 7Y37A01084, SAS, SATA III, PCI Express x8, 0, 1, 10, 5, 50, 6, 60, 12000 Gbit/s, LSI SAS3508, FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe...

Ruim op voorraad

Fabrikant Lenovo
MPN 7Y37A01084
EAN 0889488433452

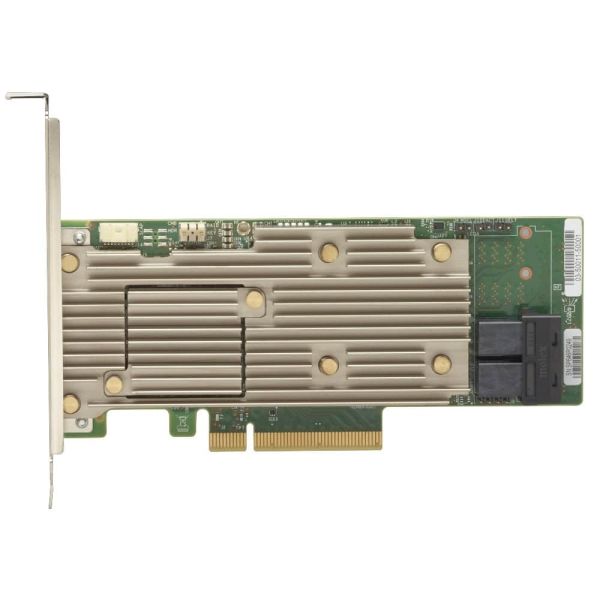

Lenovo 7Y37A01084 RAID controller PCI Express x8 3.0 12000 Gbit/s

The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features.

This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.
  • CIe 3.0 x8 host interface
  • 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9460 adapter family
  • 2GB or 4GB of integrated flash-backed cache
  • Connectivity for up to 2, 8, 16 or 24 internal SAS or SATA drives
  • Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported
  • Support for intermixing of 12 Gbps and 6 Gbps drives
  • Support for RAID 0, 1, 10, 5, 50, 6 and 60 standard (The 930-4i supports only RAID 0, 1 in the SN550 and RAID 0, 1, 5, 6 in the SN850 because those blade servers only support two and four drives respectively)
  • Support for JBOD (non-RAID) drive state
  • Support for up to 64 virtual disks, up to 128 arrays, up to 16 virtual disks per array
  • Support for logical drive sizes greater than 2 TB
  • Configurable stripe size from 64 KB up to 1 MB
  • Supports 512e, 512n and 4K sector formatted drives
  • Compliant with Disk Data Format (DDF) configuration on disk (CoD)
  • S.M.A.R.T. support
  • Configuration through
  • XClarity Provisioning Manager UEFI interface
  • XClarity Controller web interface
  • XClarity Administrator Configuration Patterns
  • StorCLI command-line interface
  • LSI Storage Authority (LSA) GUI interface
  • UEFI Human Interface Infrastructure (HII)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Ondersteunde opslagstationinterfaces*
SAS, SATA III
Hostinterface*
PCI Express x8
PCI Express slots versie
3.0
Interne mini-SAS-HD-poorten
2
Externe SAS-poorten
8

Prestatie

Soorten RAID*
0, 1, 10, 5, 50, 6, 60
RAID Level Migratie
Ja
Overdrachtssnelheid
12000 Gbit/s
SSD-ondersteuning
Ja
Chipset
LSI SAS3508
S.M.A.R.T. support
Ja
Number of devices supported
8
Online Capaciteit vergroting
Ja
Hot-swap
Ja

Prestatie

Certificering
FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) RoHS compliant EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B) WEEE

Minimale systeemeisen

Ondersteunt Linux
SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 12
Compatibele besturingssystemen
Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5
Ondersteunde server operating systems
Windows Server 2012 R2, Windows Server 2016

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080

Overige specificaties

PCI Card form factor
Full-height (low-profile)
