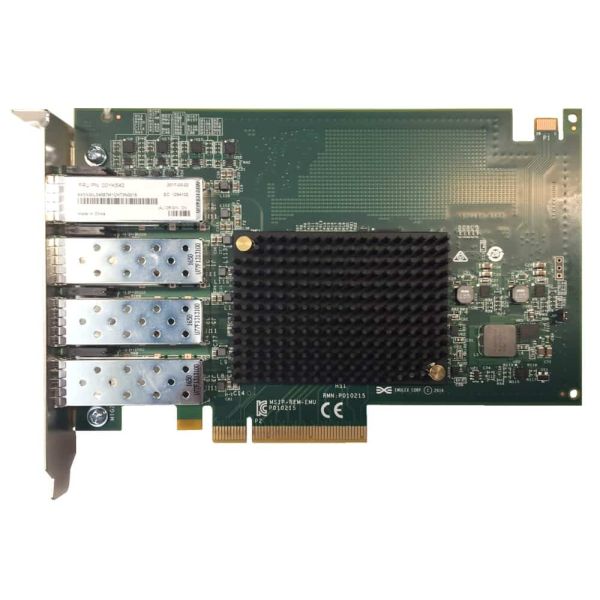

Lenovo 7ZT7A00493 netwerkkaart Intern Fiber 10000 Mbit/s
The Emulex Virtual Fabric Adapter 5 Generation 2 (VFA5.2) Network Adapter Family, which includes the OCe14104B-NX 10 GbE adapter builds on the foundation of the previous generation of Emulex VFA5 adapters by delivering performance enhancements, including RoCE v2 support and management enhancements with improved support for Lenovo XClarity.
This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions.
This product guide provides essential presales information to understand the VFA 5.2 adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about VFA 5.2 adapters and consider their use in IT solutions.
- Dual-channel 10 Gbps Ethernet controller
- Based on the Emulex XE102-P2 ASIC
- PCI Express 3.0 host interface
- Line-rate 10 GbE performance
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
2
Vezel-optische connector
SFP+
PCI versie
3.0
PCI Card form factor
Full-height
Netwerk
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 1588, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x
Design
Component voor*
Server
Kleur van het product
Meerkleurig
Intern*
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Gewicht en omvang
Breedte
167 mm
Hoogte
111 mm
