LevelOne AVF-1101, AV-zender, 20000 m, Bedraad, Zwart

Niet op voorraad

Fabrikant LevelOne
MPN AVF-1101
EAN 4015867206690

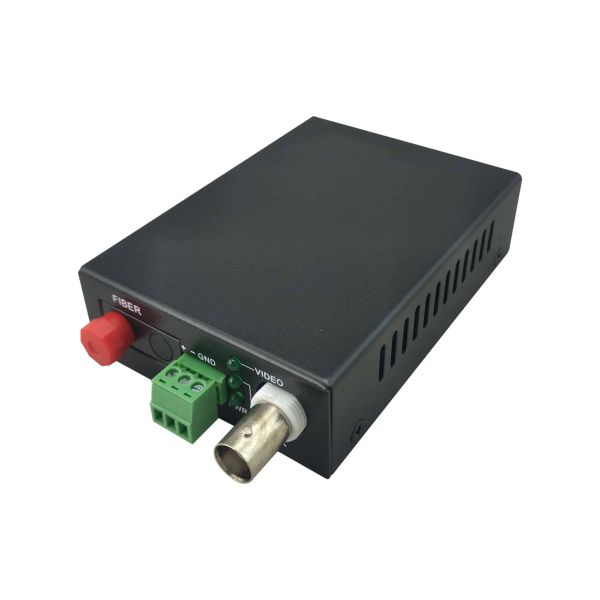

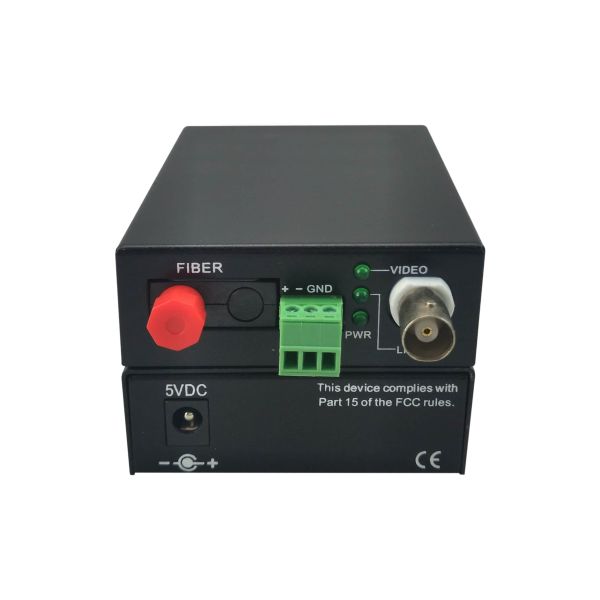

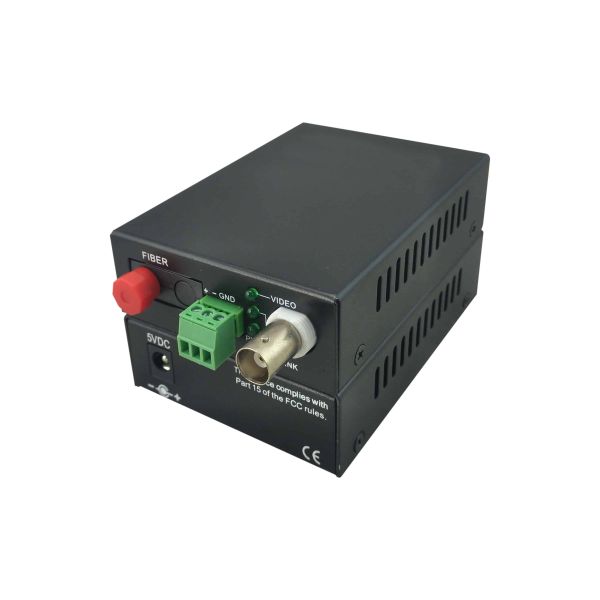

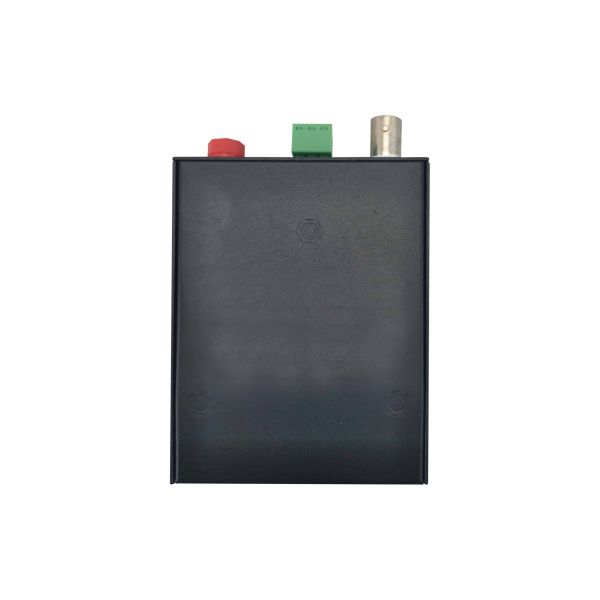

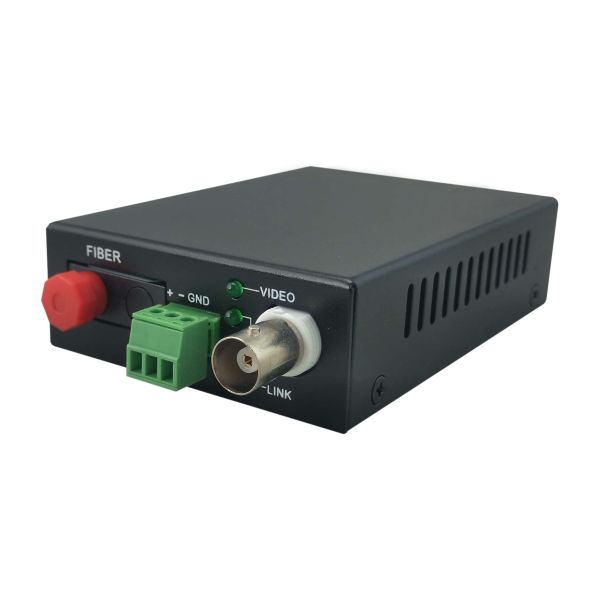

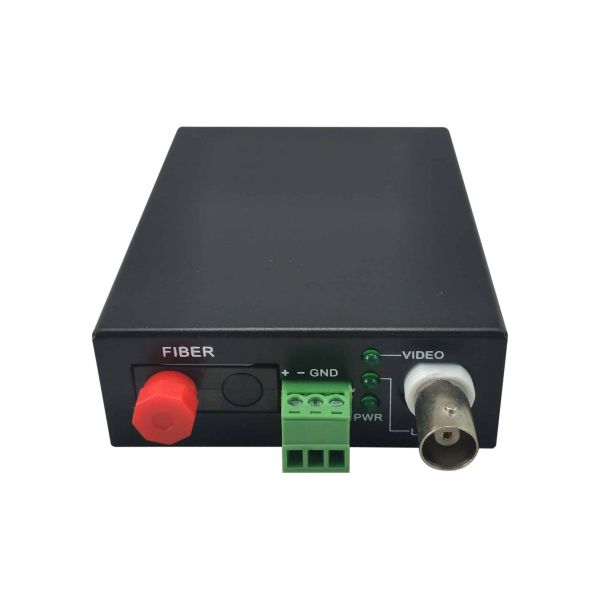

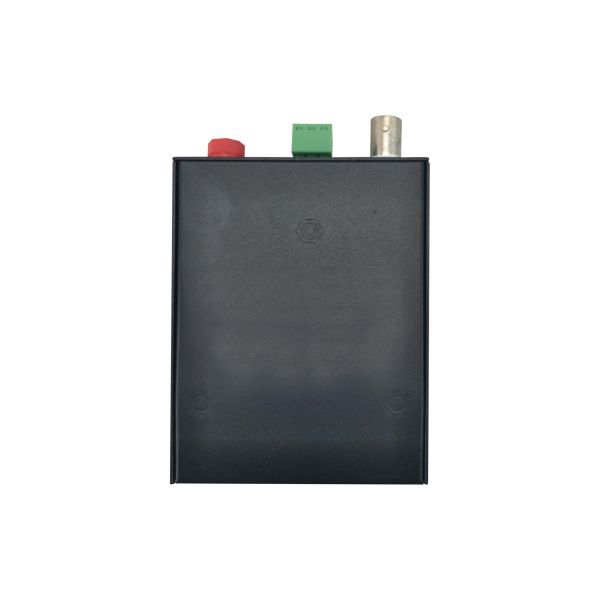

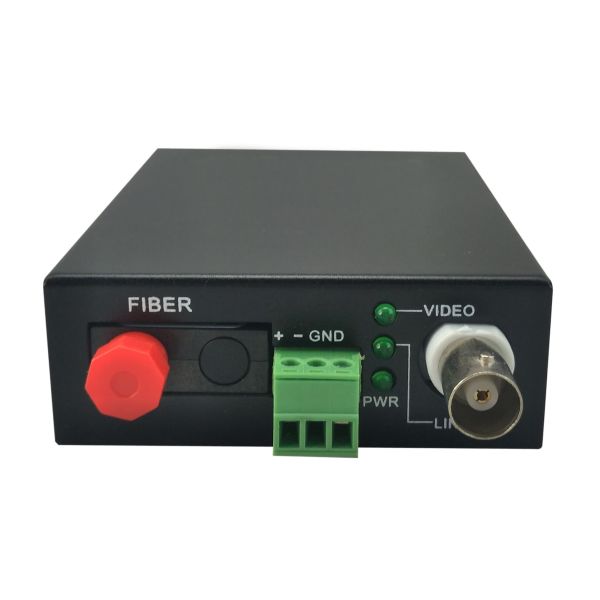

LevelOne AVF-1101 AV-zender Zwart

The LevelOne AVF Video over Fiber Converter series is designed to transmit composite video signals over long distances via optical fibre. On the transmitting side, video signals are digitalized and converted to optical signals, then transmitted over the fibre link to the receiver. The receiver then converts the optical signal back to analogue and displays the transmitted images on a monitor. LevelOne’s AVF solutions provide analogue surveillance and signage systems with the high quality images and long-distance transmission achievable through optical fibre, enhancing the capabilities of a traditional deployment or upgrading a legacy system. An ideal solution for analogue surveillance and Video Wall System applications.
  • Transmits analogue video signal over single fiber cable
  • Uncompressed high quality video transmission
  • Transmit up to 20 km without optical attenuation
  • No RF interference or signal degradation over optical fiber
  • No EMI and electromagnetic interference
  • LED indicator status for instance system monitoring
  • True Plug & Play design facilitates ease of installation
  • 25°C to 75°C operating temperature range

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
AV-zender
Maximaal bereik
20000 m
Glasvezeloptische golflengten ondersteund
1470-1610,1310 nm
LED-indicatoren
Ja
Bandbreedte
6,5 MHz
Plug and play
Ja
RX sensitiviteit
-26 dB
Impedantie
75 Ohm
Signaal/ruis-verhouding
60 dB
Lineariteit
1.3%DG, 1.3°DP
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^9 bits read
Kleur van het product
Zwart
Certificering
CE, FCC

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Vezel-optische connector
FC
BNC input ports
1

Energie

Operating voltage
5 V
Stroom
3 A
Stroomverbruik (typisch)
12 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
70 mm
Diepte
25 mm
Hoogte
90 mm
Gewicht
460 g

Verpakking

Breedte verpakking
185 mm
Diepte verpakking
62 mm
Hoogte verpakking
275 mm
Gewicht verpakking
600 g
Type verpakking
Doos

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Snelstartgids
Ja

Technische details

Land van herkomst
China

Logistieke gegevens

(Buitenste) hoofdverpakking brutogewicht
11,5 kg
Hoeveelheid per (buitenste) hoofdverpakking
17 stuk(s)
