LevelOne AVF-1801, AV-zender, 20000 m, Bedraad

Niet op voorraad

Fabrikant LevelOne
MPN AVF-1801
EAN 4015867206553

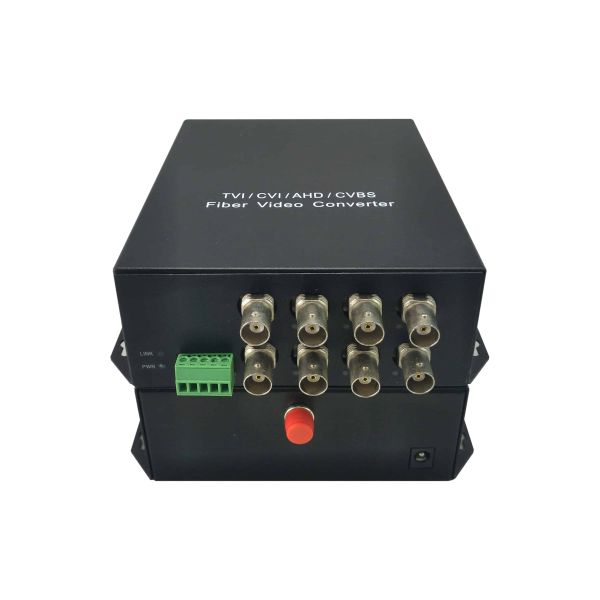

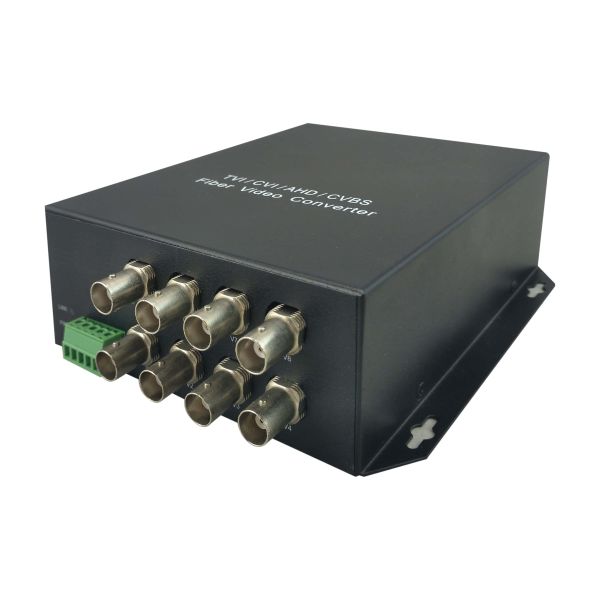

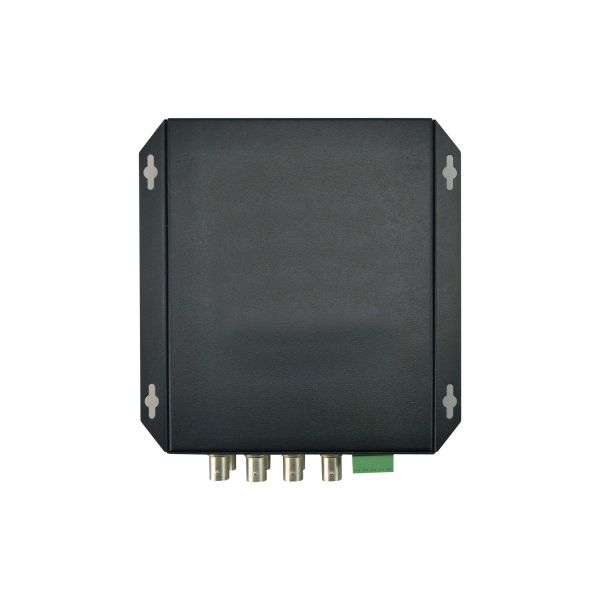

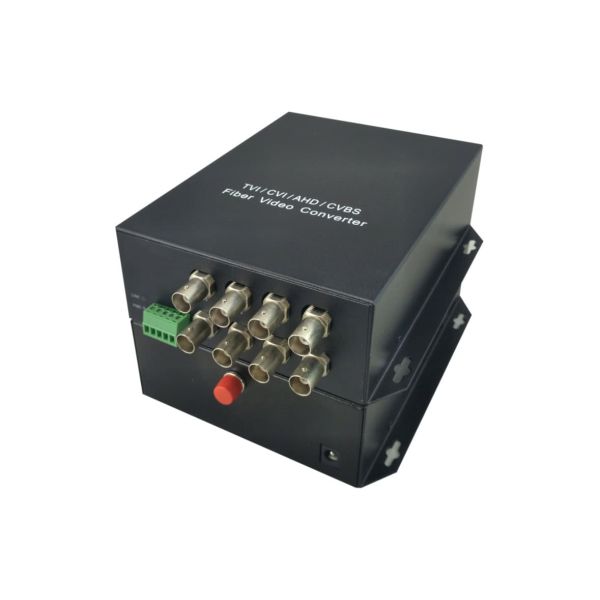

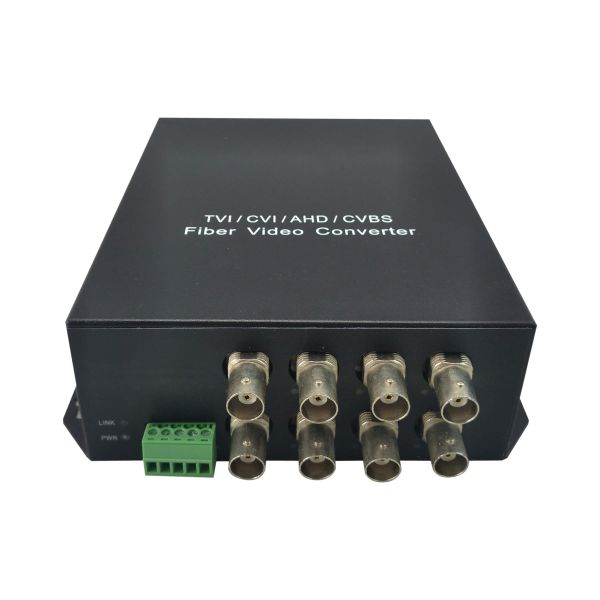

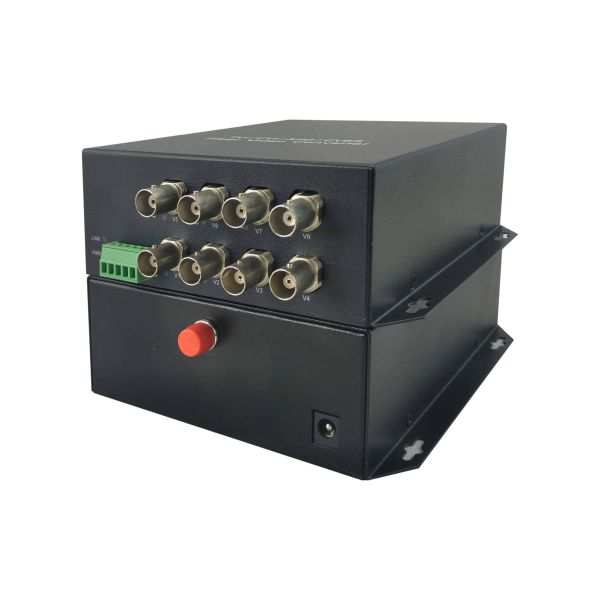

LevelOne AVF-1801 AV-zender

The LevelOne AVF Video over Fiber Converter series is designed to transmit composite video signals over long distances via optical fibre. On the transmitting side, video signals are digitalized and converted to optical signals, then transmitted over the fibre link to the receiver. The receiver then converts the optical signal back to analogue and displays the transmitted images on a monitor. LevelOne’s AVF solutions provide analogue surveillance and signage systems with the high quality images and long-distance transmission achievable through optical fibre, enhancing the capabilities of a traditional deployment or upgrading a legacy system. An ideal solution for analogue surveillance and Video Wall System applications.
  • Transmits analogue video signal over single fiber cable
  • Uncompressed high quality video transmission
  • Transmit up to 20 km without optical attenuation
  • No RF interference or signal degradation over optical fiber
  • No EMI and electromagnetic interference
  • LED indicator status for instance system monitoring
  • True Plug & Play design facilitates ease of installation
  • 25°C to 75°C operating temperature range

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
AV-zender
Maximaal bereik
20000 m
Glasvezeloptische golflengten ondersteund
1470-1610,1310 nm
LED-indicatoren
Ja
Bandbreedte
6,5 MHz
Ondersteunde golflengten
1310 nm
RX sensitiviteit
-26 dB
Impedantie
75 Ohm
Signaal/ruis-verhouding
60 dB
Lineariteit
1.3%DG, 1.3%DP
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^9 bits read
Certificering
CE, FCC

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Vezel-optische connector
FC
BNC input ports
8

Energie

Operating voltage
5 V
Stroom
3 A
Stroomverbruik (typisch)
13 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 70 °C

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
116,5 mm
Diepte
48 mm
Hoogte
157,1 mm
Gewicht
1,38 kg

Verpakking

Breedte verpakking
250 mm
Diepte verpakking
115 mm
Hoogte verpakking
405 mm
Gewicht verpakking
1,54 kg
Type verpakking
Doos

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Snelstartgids
Ja

Technische details

Land van herkomst
China

Logistieke gegevens

(Buitenste) hoofdverpakking brutogewicht
1,19 kg
Hoeveelheid per (buitenste) hoofdverpakking
4 stuk(s)
