LevelOne DSK-8001 videotoezichtkit Bedraad 8 kanalen

LevelOne DSK-8001, Bedraad, Rond, BNC, Binnen/buiten, 18 m, 30 m

Ruim op voorraad

Fabrikant LevelOne
MPN DSK-8001
EAN 4015867226292
€ 139,00 excl. BTW

LevelOne DSK-8001 videotoezichtkit Bedraad 8 kanalen

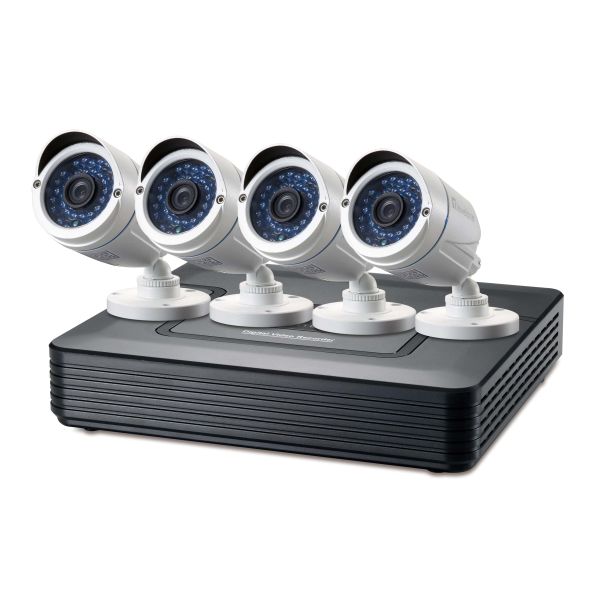

The LevelOne 8-Channel CCTV Surveillance Kit offers an ideal way to monitor a large house or building premises, for situations requiring professional-level surveillance. With superior quality, high-definition cameras stationed on all sides of the building, all access points can be securely watched at all times of the day and night. Sophisticated software allows easy monitoring of all eight cameras from any PC, laptop, tablet or smartphone. Cameras all conform to Weatherproof standard IP66, and operate in temperatures from -10 C to 55 C. Built-in infrared LEDs support night monitoring for distances up to 30 metres, providing crystal-clear images at any time, under any conditions. The quality cameras also offer full-screen, high resolution recording and playback. Everything you need for safe, secure surveillance of your home or business, providing the utmost in peace-of-mind.
  • 2 Megapixel high-definition resolution
  • Compatible with HDTVI, AHD, HDCVI and CVBS analog cameras
  • One 3.5"" disk slot supports disk capacity of up to 6TB (HDD not included)
  • Built-in infrared LEDs for night viewing up to 30m
  • Weatherproof IP66-rated housing
  • H.264 compression for efficient data transfer and storage
  • Built-in USB port for backup, firmware upgrade and mouse
  • Supports VGA, HDMI output
  • Supports iPhone/Android phone remote viewing over the Internet

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

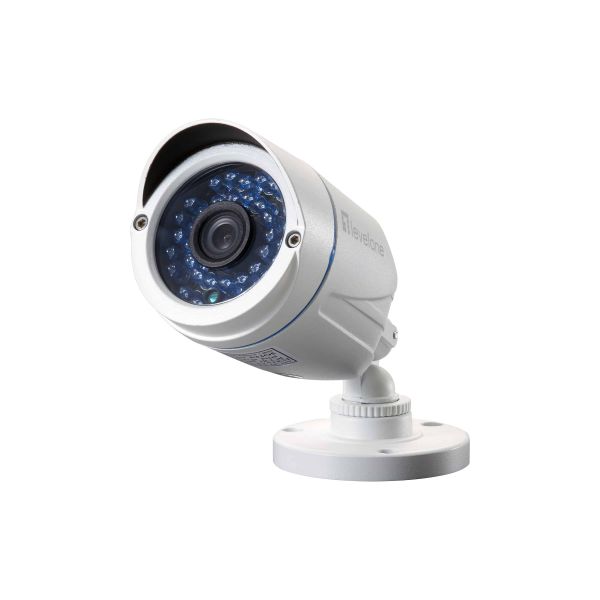

Camera

Connectiviteitstechnologie*
Bedraad
Ingebouwde camera*
Ja
Beveiligings camera form factor*
Rond
Ingebouwde microfoon*
Nee
Camera interface*
BNC
Camera kabellengte
18 m
Hitte functie*
Nee
Ondersteuning voor plaatsing*
Binnen/buiten
Aantal cameras
4
Nachtmodus
Ja
Draaien*
Nee
Nachtkijker afstand
30 m
Type beeldsensor
CMOS
Omvang optische sensor
25,4 / 4 mm (1 / 4")
LED-type
IR
Kijkhoek
65°
Camera sluitertijd
1/50 - 1/100000 s
Internationale veiligheidscode (IP)
IP66

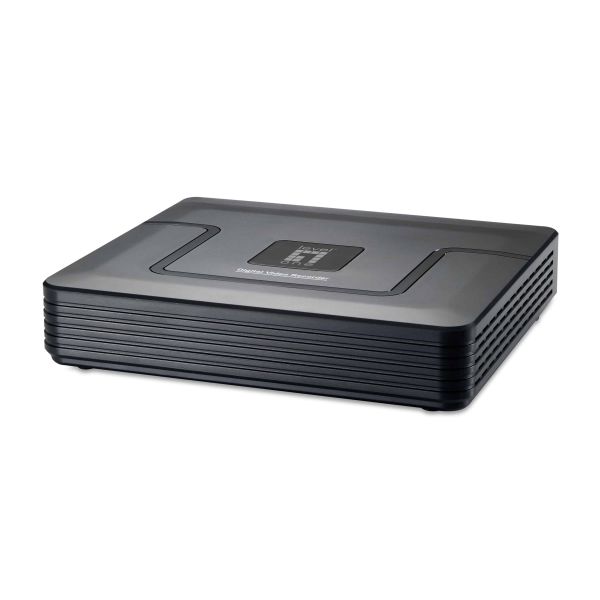

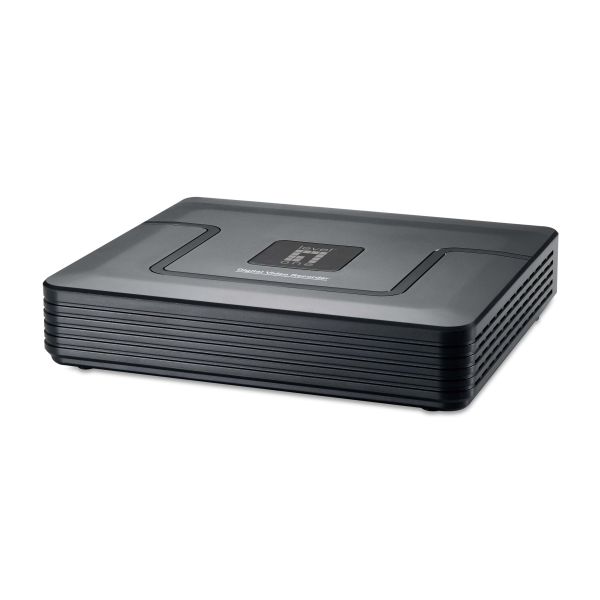

Recorder

Inclusief recorder*
Ja
Aantal kanalen*
8 kanalen
Opslagmedia-type*
HDD
Inclusief besturingssysteem
Linux Embedded
Inclusief optische drive
Nee

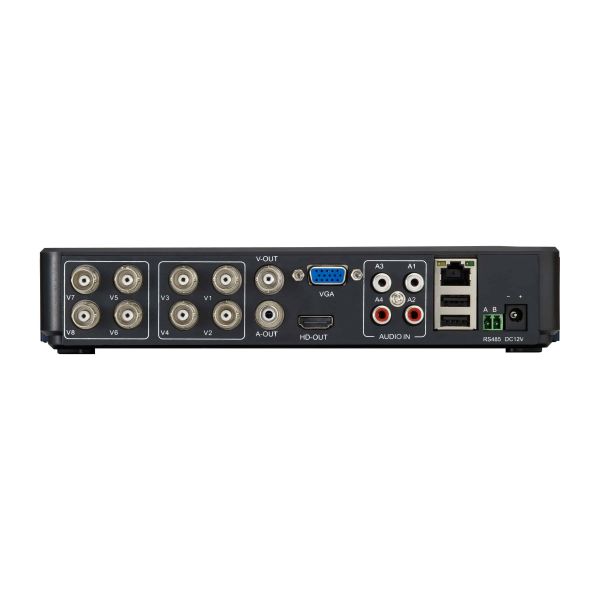

BNC input ports
8
VGA (D-Sub)poort(en)
1
Aantal USB 2.0-poorten
2
HDD omvang
3.5"
Maximum aantal HDD's per behuizing
1
HDD capaciteit
6000 GB
Geïntegreerde geheugenkaartlezer*
Nee
Ondersteunde netwerkprotocollen
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS
Aansluiting voor netstroomadapter
Ja
LED-indicatoren
HDD, LAN, Stroom
Line inputs (RCA)
1
Line outputs (RCA)
1
Maximum HDD capaciteit
6000 GB
Aantal HDMI-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten
1
Playback resolutie ondersteund
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Netwerk

Ethernet LAN
Ja
Wifi
Nee
Ethernet interface type
Fast Ethernet

Energie

Type stroombron*
DC
Stroomuitvoer (volt)
12
Camera energievebruik (standby)
4 W
Recorder energieverbruik (typisch)
8 W

Minimale systeemeisen

Ondersteunde mobiele besturingssystemen
Android, iOS

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Technische details

Op afstand bekijken
Ja
Videocompressieformaten
H.264, MP4
Ondersteund audioformaat
G.711 A-law
Ondersteunde video-modi
720p
Web-gebaseerd management
Ja
Land van herkomst
China
Kleur van het product
Zwart, Wit
Pallet nettohoogte
120 cm
Pallet nettodiepte
80 cm
Pallet nettobreedte
140 cm
Certificering
CE

Gewicht en omvang

Camera breedte
6,4 cm
Camera diepte
16,5 cm
Camera hoogte
6,4 cm
Recorder breedte
22 cm
Recorder diepte
22,2 cm
Recorder hoogte
4,5 cm
Breedte
225 mm
Diepte
430 mm
Hoogte
221 mm

Verpakking

Breedte verpakking
374 mm
Diepte verpakking
154 mm
Hoogte verpakking
308 mm
Gewicht verpakking
4 kg

Inhoud van de verpakking

Vermogenstoevoer inclusief
Ja
Gebruikershandleiding
Ja
Meegeleverde kabels
DC
Type verpakking
Doos
Snelle installatiehandleiding
Ja
Software-cd
Ja
