LevelOne DSS-1000, Zwart, Zilver, AVI, JPG, H.264, CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), Full HD

Niet op voorraad

Fabrikant LevelOne
MPN DSS-1000
EAN 4015867202005

LevelOne DSS-1000 Zwart, Zilver Full HD 1920 x 1080 Pixels

Digital Signage Station is a software designed to help display and manage live video surveillance
videos. It can also be used to display a variety of other media forms such as picture slideshows for advertising or to add visual material to announcements. You can leverage the hardware equipment you have already invested in your surveillance system to develop a cost-effective and efficient way to communicate ideas and information. With Digital Signage Station, you can reap the benefits of better security management and business management at the same time.

Used in conjunction with DSS-1000 to display live video feeds or other forms of media such a advertisements or announcements.

Connect to Digital Signage Station database locally or remotely for easy management.
  • Display video or slide shows on signage channels with the software included
  • Supports video resolutions up to 10 megapixels
  • Supports 1080p HDMI local display
  • Supports up to 16 cameras in live view
  • BNC connector for analog video output
  • Dual power support: 12V DC/PoE (IEEE 802.3af)

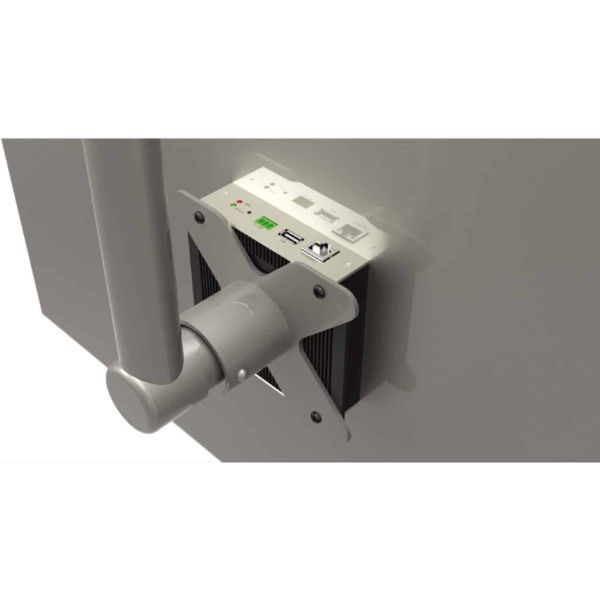

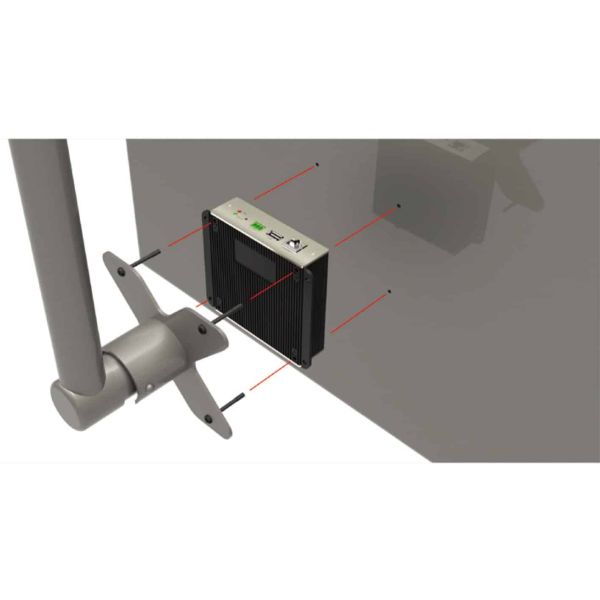

  • VESA standards compliant

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Kleur van het product*
Zwart, Zilver
Ondersteunde videoformaten*
AVI
Ondersteund beeldformaat*
JPG
Videocompressieformaten
H.264
Certificering
CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)

Beeldscherm

Ingebouwd display*
Nee

Opslagmedia

Ingebouwde opslagmedia*
Nee
Geïntegreerde geheugenkaartlezer*
Nee

Video

HD type*
Full HD
Volledige HD
Ja
Maximale videoresolutie
1920 x 1080 Pixels
Maximaal 30 frames per seconde
30 fps

Poorten & interfaces

Aantal HDMI-poorten*
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal USB 2.0-poorten*
1
Composiet video-uitgang*
1
Aansluiting voor netstroomadapter
Ja

Netwerk

Ethernet LAN*
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Wifi*
Nee
Universal Plug and Play ( UPnP )
Ja

Ergonomie

LED-indicatoren
Stroom, Gereed

Gewicht en omvang

Breedte
114 mm
Diepte
33 mm
Hoogte
135 mm
Gewicht
566 g

Verpakking

Breedte verpakking
200 mm
Diepte verpakking
285 mm
Hoogte verpakking
100 mm
Gewicht verpakking
1,24 kg
Type verpakking
Doos

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Gebruikershandleiding op CD-ROM
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent

Overige specificaties

Ondersteunde netwerkprotocollen
TCP, UDP, IP, HTTP, RTP, RTSP, ICMP, ARP, UPnP

Logistieke gegevens

(Buitenste) hoofdverpakking brutogewicht
11,9 kg
(Buitenste) hoofdverpakking breedte
410 mm
(Buitenste) hoofdverpakking lengte
566 mm
(Buitenste) hoofdverpakking hoogte
205 mm
