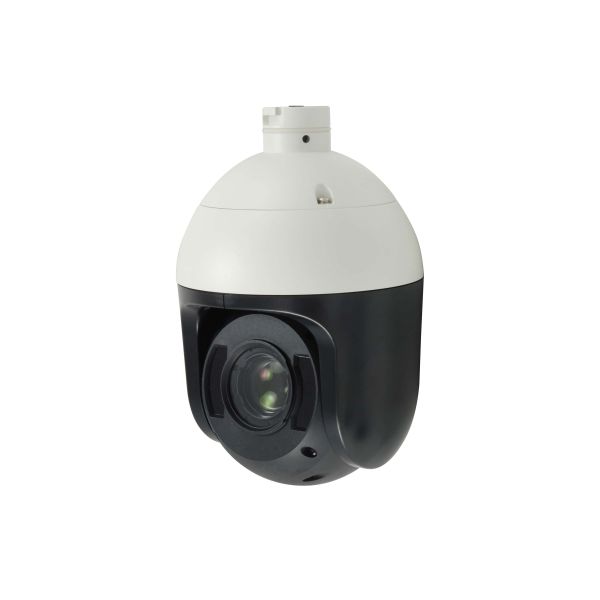

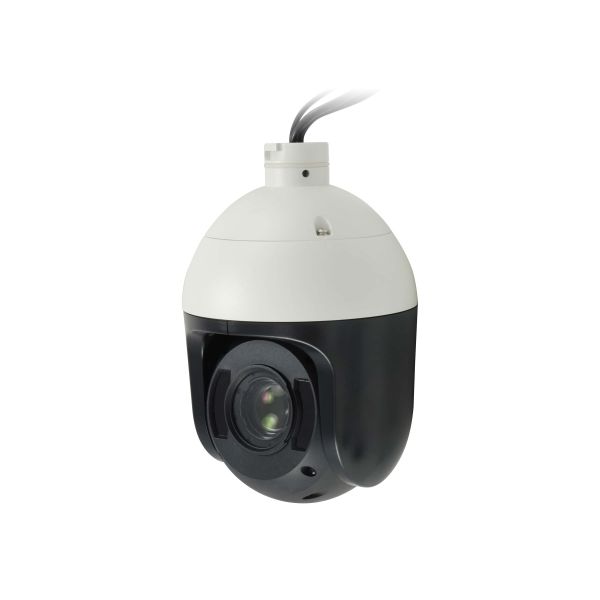

LevelOne FCS-4048 Dome IP-beveiligingscamera Binnen & buiten 1920 x 1080 Pixels Plafond

LevelOne FCS-4048, IP-beveiligingscamera, Binnen & buiten, Bedraad, CF/FCC, Plafond, Zwart, Wit

Niet op voorraad

Fabrikant LevelOne
MPN FCS-4048
EAN 4015867203873
€ 2.036,00 excl. BTW

LevelOne FCS-4048 Dome IP-beveiligingscamera Binnen & buiten 1920 x 1080 Pixels Plafond

The LevelOne FCS-4048 is a PTZ IP surveillance camera designed for use outdoors, boasting 2-Megapixel resolution and a 33 X optical zoom. The camera features motorized Pan and Tilt features as well, enabling it to focus in a variety of directions and zoom in on a specific viewing area. The camera is also PoE, enabling it to run both power and data on the one Cat.5 cable, making deployments easy and efficient. An IP66-rated weatherproof casing allows for safe, reliable operation in outdoor conditions such as rain, heat, dust, snow and humidity.
  • 2-Megapixel (1920 x 1080) high-definition resolution
  • Video compression: H.264/MJPEG
  • Supports 33X optical zoom
  • Built-in infrared LEDs for night viewing up to 150m
  • Weatherproof IP66-rated housing
  • Vandal-proof IK10-rated housing
  • 360° pan and 220° tilt movements allow for a wide range of monitoring angles
  • Triple power support: 12V DC/24V AC/PoE (IEEE 802.3at 60W)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Soort*
IP-beveiligingscamera
Ondersteuning voor plaatsing*
Binnen & buiten
Connectiviteitstechnologie*
Bedraad
PTZ control
Ja
Dag/nacht modus
Ja
Certificering
CF/FCC

Design

Vormfactor*
Dome
Montagewijze*
Plafond
Kleur van het product*
Zwart, Wit
LED-indicatoren
Stroom
Veiligheidsfunties
Vandaalbestendig
Internationale veiligheidscode (IP)
IP66
IK code
IK10
Weerbestendig
Ja
Land van herkomst
Taiwan

Camera

Field of view (FOV) hoek
61,7°
Draai-snelheid
280 °/sec
Vooringestelde snelheid pan
280 °/sec
Camera sluitertijd
1/5 - 1/10000 s
Aanpassing sluitertijd
Automatisch/handmatig

Beeldsensor

Omvang optische sensor
25,4 / 2,8 mm (1 / 2.8")

Lenssysteem

Zoomcapaciteit
Ja
Optische zoom
33x
Maximum aperture number
5
Minimum aperture number
1,6
Brandpuntbereik
4.5 - 148.5 mm

Nachtkijker

Nachtvisie*
Ja
Nachtkijker afstand
150 m
LED-type
IR

Video

Maximum resolutie*
1920 x 1080 Pixels
Totaal aantal megapixels*
2 MP
Ondersteunde videoformaten
RAW
Videocompressieformaten
H.264, M-JPEG
Ondersteunde grafische resoluties
320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Ondersteunde video-modi
240p, 480p, 720p, 1080p
Maximaal 30 frames per seconde
60 fps
Volledige HD
Ja

Audio

Audio invoer kanalen
1
Audio-uitgangskanalen
1 kanalen
Audio-codecs
G.711
Sample rate
8 kHz

Netwerk

Ethernet LAN*
Ja
Ethernet interface type
Fast Ethernet
Ondersteunde netwerkprotocollen
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

Netwerk

Wifi*
Nee
Bluetooth*
Nee
Aantal gebruikers
16 gebruiker(s)

Opslagmedia

Ingebouwde HDD*
Nee
Geïntegreerde geheugenkaartlezer
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash), SD
Maximale capaciteit van de geheugenkaart
64 GB

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
1
Klemmenblokpoort
Ja

Beveiliging

Password bescherming
Gebruiker
Video bewegings-detectie
Ja
IP-adresfilter
Ja
HTTPS-encryptie
Ja

Beheerfuncties

Reset button
Ja

Energie

Type stroombron*
Power over Ethernet (PoE)
AC-ingangsspanning
24 V
Stroomverbruik (typisch)
25 W
Power over Ethernet (PoE)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Gewicht en omvang

Breedte
191 mm
Diepte
191 mm
Hoogte
282 mm
Gewicht
2,75 kg
Breedte verpakking
289 mm
Diepte verpakking
246 mm
Hoogte verpakking
289 mm
Gewicht verpakking
2 kg
Type verpakking
Doos

Inhoud van de verpakking

Aantal cameras*
1
Inclusief AC-adapter
Ja
Ondersteunings-cd
Ja

Overige specificaties

Ondersteunde browser
Microsoft Internet Explorer 8.0

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85258900
(Buitenste) hoofdverpakking breedte
525 mm
(Buitenste) hoofdverpakking lengte
565 mm
(Buitenste) hoofdverpakking hoogte
445 mm
(Buitenste) hoofdverpakking brutogewicht
20,7 kg
Hoeveelheid per (buitenste) hoofdverpakking
4 stuk(s)
