LevelOne GEL-5271 netwerk-switch Managed L2+ Gigabit Ethernet (10/100/1000) 1U Zwart

LevelOne GEL-5271, Managed, L2+, Gigabit Ethernet (10/100/1000), Rack-montage, 1U

Ruim op voorraad

Fabrikant LevelOne
MPN GEL-5271
EAN 4015867227824
€ 475,00 excl. BTW

LevelOne GEL-5271 netwerk-switch Managed L2+ Gigabit Ethernet (10/100/1000) 1U Zwart

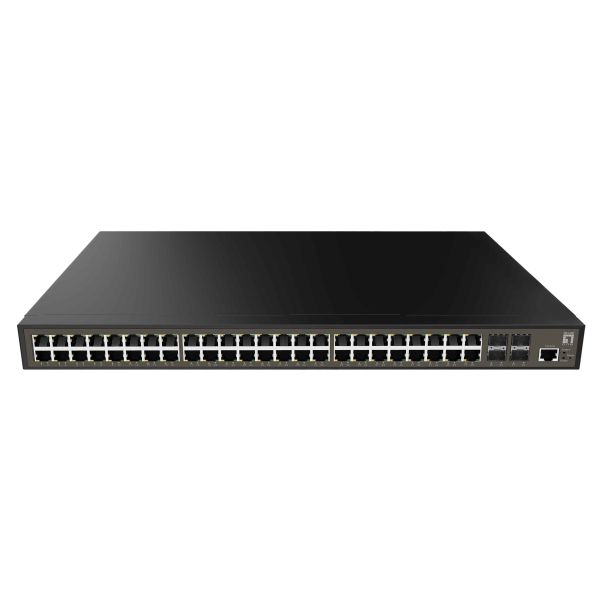

The LevelOne GEL-5271 is an intelligent 52-Port L2 plus managed gigabit switch with 48 RJ45 ports and 4 SFP fiber slots, designed for enterprise or large workgroups connectivity applications with the non-blocking, wire-speed switching performance and advanced networking management functions.

The switch supports a flexible web-based management interface for both IPv4 and IPv6 as well as console, SNMP and Telnet management access. Despite its affordable pricing, the GEL-5271 is equipped with many advanced features such as Internet Group Management Protocol (IGMP) snooping, port-/MAC-/tag-based VLAN, IEEE 802.1D/w/s Spanning Tree, Access Control List (ACL), IEEE 802.3az Energy Efficient Ethernet, Link Aggregation Control Protocol (LACP), IEEE 802.1p QoS, Storm Control for protecting against broadcast/multicast/unknown unicast and much more.

An ideal network solution for anyone looking for an affordable and efficient way to expand their network.
  • 48 Gigabit Ethernet ports and 4 Gigabit SFP slots
  • IEEE 802.3ad LACP for auto port aggregation
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
  • Supports VLAN (Port-based, Protocol-based, Private, Q-in-Q, Tag-based)
  • Supports IPv4/IPv6 network operation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2+
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
48
Aantal moduleslots SPF
4
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Ja
Broadcast stormbeheer
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Optische vezel

Fiber ethernet cabling technologie
1000BASE-LHX, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX

Data-uitwisseling

MAC-adrestabel*
16000 entries
Statische route
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000

Beveiliging

DHCP-functies
DHCP Option 82, DHCP client, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Wachtwoordbeveiliging
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Routing protocols
RIP

Design

Rack-montage*
Ja
Stapelbaar*
Nee
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Activiteit, Link, Stroom

Design

Land van herkomst
China
Certificering
FCC Part 15 Subpart B, CE Mark, EN IEC 62368-1, EN 55032, EN 55035, EN 61000-3-2/3, RoHS

Prestatie

Type processor
Ja
Intern geheugen
256 MB
Flash memory
512 MB
Geluidsniveau
45 dB
Upgraden van firmware mogelijk
Ja

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
40 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
440 mm
Diepte
300 mm
Hoogte
44 mm
Gewicht
3,5 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Breedte verpakking
535 mm
Diepte verpakking
340 mm
Hoogte verpakking
80 mm
Gewicht verpakking
4,2 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
