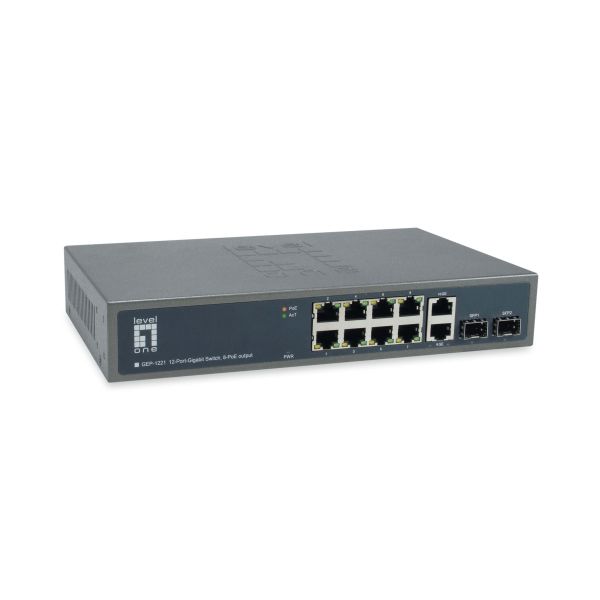

LevelOne GEP-1221 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

LevelOne GEP-1221, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

Fabrikant LevelOne
MPN GEP-1221
EAN 4015867227978
€ 150,00 excl. BTW

LevelOne GEP-1221 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

The GEP-1221 switch provides 10 port 10/100/1000M ports with 2 port SFP. It is designed for easy installation and high performance in an environment where traffic is on the network and the number of users increases continuously. It consists of 8 PSE/PoE ports. That can solve the limitation of the power outlet location and offer the system designer a flexible solution to locate the network device everywhere.The device size is specifically designed for medium to large workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrade to network capacity. The PoE switch can be rack-mount on 19” cabinet.
  • 8 Gigabit PoE ports/ 2 Port Gigabit and 2 Gigabit SFP slots
  • IEEE 802.3af/at PoE compliant to simplify deployment and installation
  • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
  • 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • Built-in power supply

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
10
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
10
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Auto-negotiation
Ja

Data-uitwisseling

Switchingcapaciteit*
22 Gbit/s
MAC-adrestabel*
4000 entries

Design

Rack-montage*
Ja
Stapelbaar*
Nee
Kleur van het product
Zwart
LED-indicatoren
Ja

Prestatie

Intern geheugen
2 MB
Fanloos
Ja

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
Stroomverbruik (typisch)
10 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
150 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
250 mm
Diepte
150 mm
Hoogte
40 mm
Gewicht
1,4 kg

Verpakking

Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
