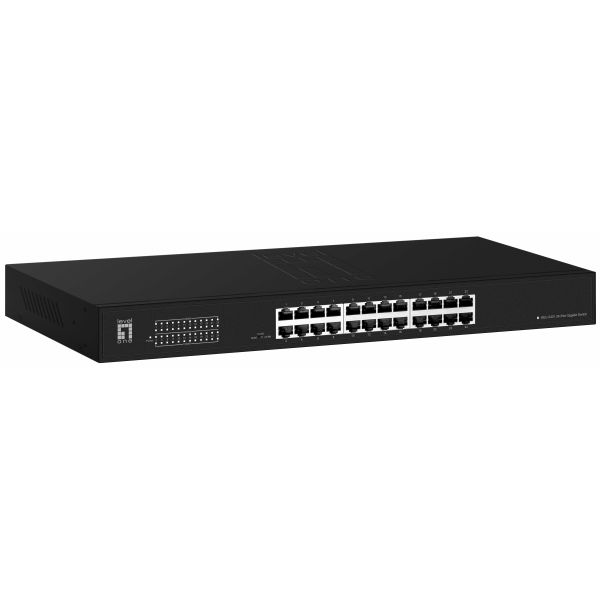

LevelOne Switch 24x GE GEU-2431 19\" Rack Mount Kit Unmanaged Gigabit Ethernet (10/100/1000) 1U Zwart

LevelOne Switch 24x GE GEU-2431 19\" Rack Mount Kit, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, 1U

Ruim op voorraad

Fabrikant LevelOne
MPN GEU-2431
EAN 4015867228142
€ 86,00 excl. BTW

LevelOne Switch 24x GE GEU-2431 19\" Rack Mount Kit Unmanaged Gigabit Ethernet (10/100/1000) 1U Zwart

Gigabit Speeds: Take Your Data to the Next Level
GEU-2431 is a 24-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast Gigabit connections to all your computers.

Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GEU-2431 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.

Plug and Play, Flexible and Easy
GEU-2431 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable.
  • 24 Gigabit Ethernet ports
  • 10/100/1000Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
  • 9K jumbo frames to increase data transfer rates
  • Supports 8K MAC address auto-learning and auto-aging
  • Supports 3 working modes to fullfil different applications

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Ja
Half-duplex
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto-negotiation
Ja

Data-uitwisseling

MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Design

Rack-montage*
Ja
Stapelbaar*
Nee
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja
Land van herkomst
China
Certificering
CE, RoHS

Prestatie

Type processor
Ja
Frequentie van processor
500 MHz
Intern geheugen
4,1 MB

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
1 A
Stroomverbruik (typisch)
25 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 55 °C
Temperatuur bij opslag
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
438 mm
Diepte
140 mm
Hoogte
45 mm
Gewicht
1,62 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Breedte verpakking
218 mm
Diepte verpakking
497 mm
Hoogte verpakking
93 mm
Gewicht verpakking
2,22 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
