LevelOne GNC-0122 netwerkkaart Intern Fiber
LevelOne GNC-0122, Intern, Bedraad, PCI Express, Fiber, Aluminium
Nog slechts 8 beschikbaar
Fabrikant
LevelOne
MPN
GNC-0122
EAN
4015867224212
€ 64,00
excl. BTW
€ 64,00
excl. BTW
excl. BTW

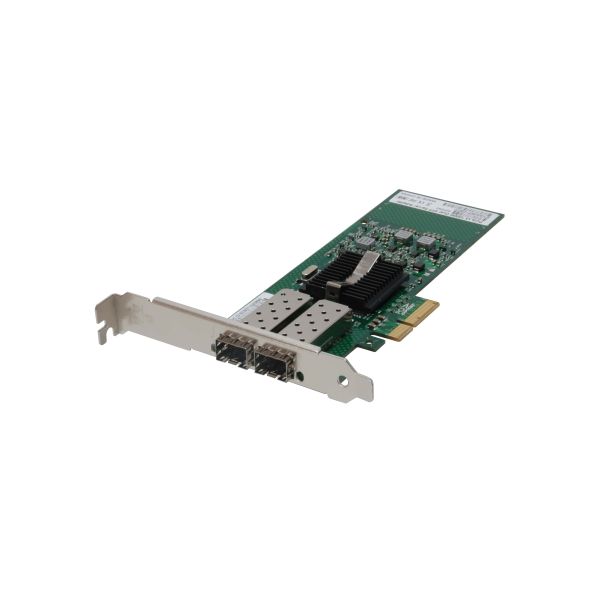

LevelOne GNC-0122 netwerkkaart Intern Fiber
The LevelOne GNC-0122 Gigabit network card facilitates high-speed connectivity within a fiber-optic network. Wake-on-LAN functionality allows remote start-up and shutdown, and the device offers flexibility by supporting iSCSI for remote boot. GNC-0122 also features an Intel PROSet Utility for Windows Device Manager, offers load balancing across multiple CPUs and is compatible with most Network Operating Systems.
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports iSCSI remote boot
- Load balancing across multiple CPUs
- Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
- Supports most network operating systems (NOS)
- Intel® PROSet Utility for Windows* Device Manager
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Supports iSCSI remote boot
- Load balancing across multiple CPUs
- Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
- Supports most network operating systems (NOS)
- Intel® PROSet Utility for Windows* Device Manager
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
2
Vezel-optische connector
SFP
PCI versie
2.0
Netwerk
Netwerkstandaard*
IEEE 1588, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
Fiber ethernet cabling technologie
1000BASE‑LX, 1000BASE‑SX
Wake-on-LAN
Ja
Jumbo Frames ondersteuning
Ja
Design
Kleur van het product
Aluminium
Intern*
Ja
LED-indicatoren
Activiteit, Link
Land van herkomst
China
Minimale systeemeisen
Ondersteunt Windows
Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunde server operating systems
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 R2
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Eisen aan de omgeving
Luchtvochtigheid bij opslag
5 - 95 procent
Gewicht en omvang
Breedte
160 mm
Diepte
68 mm
Hoogte
17 mm
Gewicht
83 g
Verpakking
Aantal
1
Breedte verpakking
145 mm
Diepte verpakking
220 mm
Hoogte verpakking
30 mm
Gewicht verpakking
62 g
Inhoud van de verpakking
Montagebeugels meegeleverd
Ja
Gebruikershandleiding
Ja
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Snelstartgids
Ja
Intel® Virtual Machine Device Queues (VMDq)
Ja
Netvoeding
2,2 W
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
