LevelOne GNC-0200, Intern, Bedraad, PCI Express, Fiber, 1000 Mbit/s

Ruim op voorraad

Fabrikant LevelOne
MPN GNC-0200
EAN 4015867187838

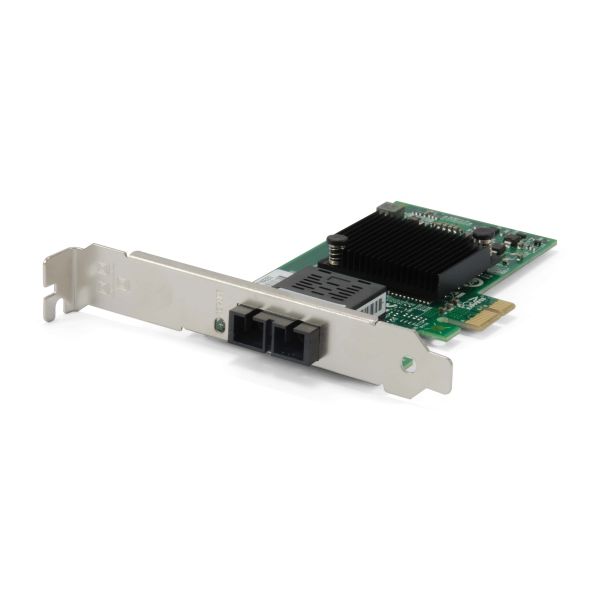

LevelOne GNC-0200 netwerkkaart Intern Fiber 1000 Mbit/s

The LevelOne Multimode Fiber Network Adapter GNC-0200 is a high performance PCI Express multifunction network adapter for either standard or low profile slots running over a fiber-optic network environment. Based on Intel 82575EB controller, it is a 1000Base-SX PCI Express x1 fiber nic for desktop use.

Key Features
- Host Interface standard support PCI Express 2.0a
- High performance, reliability, and low power use in Intel 82575EB dual integrated MAC + PHY / SERDES chip controller
- Independently Fiber Gigabit Ethernet channel/s support Gigabit Ethernet 1000Base-SX
- Ultra deep packet buffer per channel lowers CPU utilization
- Hardware acceleration that can offload tasks from the host processor. The controllers can offload TCP/UDP/IP checksum
- Calculations and TCP segmentation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
1
Vezel-optische connector
SC

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad, IEEE 802.3x
Fiber ethernet cabling technologie
1000BASE‑SX
Wake-on-LAN
Ja
Full duplex
Ja
Jumbo Frames ondersteuning
Ja
Auto-negotiation
Ja
Jumbo frames
9000
VLAN-tagging
Ja

Design

Intern*
Ja
LED-indicatoren
Activiteit, Link

Minimale systeemeisen

Ondersteunt Windows
Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunt Linux
Ja
Andere ondersteundende systemen
DOS, Novell NetWare 5.x, Novell NetWare 6.x
Ondersteunde server operating systems
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
17 mm
Diepte
68 mm
Hoogte
115 mm
Gewicht
67 g

Verpakking

Meegeleverde drivers
Ja
Breedte verpakking
153 mm
Diepte verpakking
30 mm
Hoogte verpakking
230 mm
Gewicht verpakking
86 g

Inhoud van de verpakking

Montagebeugels meegeleverd
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Snelstartgids
Ja
Datastroombeheer
Ja
