LevelOne GTL-2091, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage

Ruim op voorraad

Fabrikant LevelOne
MPN GTL-2091
EAN 4015867208366

LevelOne GTL-2091 Managed L3 Gigabit Ethernet (10/100/1000) Grijs

The GTL-2091 is LevelOne latest generation of 20-Port L3 Managed Gigabit Switch, 8 x Gigabit RJ45, with 12 10G SFP+ port connectivity. High-density SFP ports built into allow users to insert different SFP transceivers providing the necessary fiber connections for creating Area Networks infrastructure. also offers AC dual power failover, allowing for continued operation regardless of a single power source failure.

The GTL-2091 offers powerful L3 features(IPv4/v6 static route, RIP v1/v2, OSPF v2/v3, BGP, PIM-DM, PIM-SM ), The switch also supports the most advanced IPv6 management,IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services for home to business users by providing a more reliable and resilient network , and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements. enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

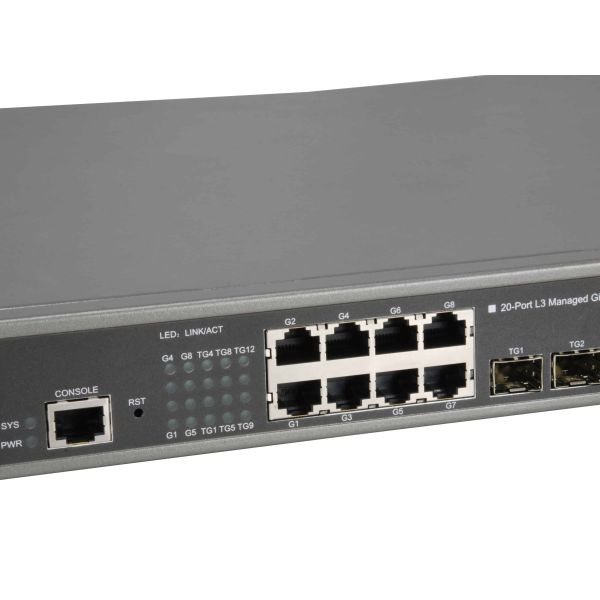

  • 8 Gigabit Ethernet ports and 12 10-Gigabit SFP+ slots

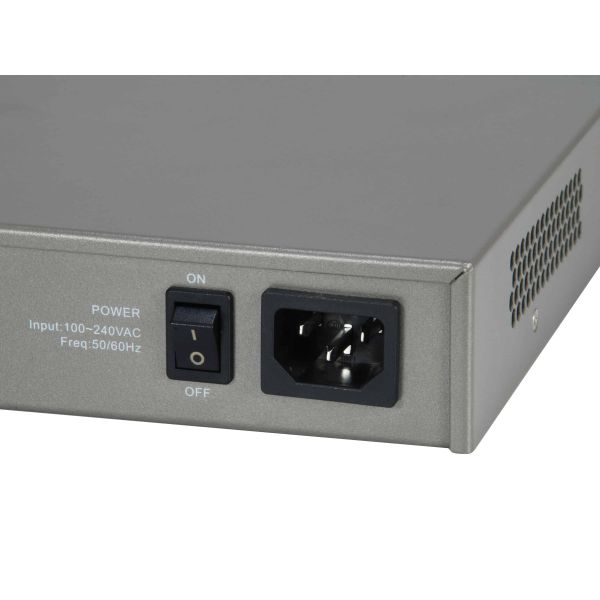

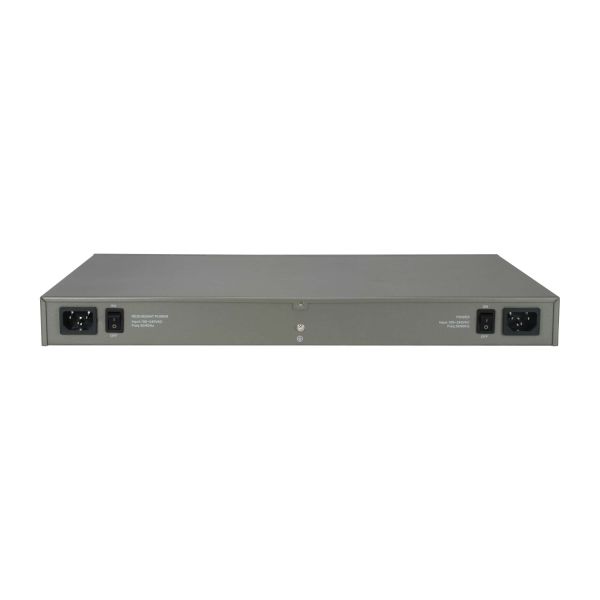

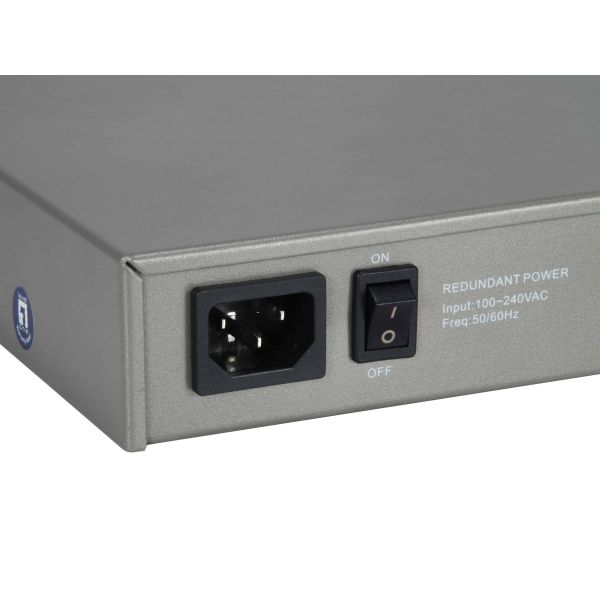

  • Supports power redundancy with dual AC power inputs
  • Comprehensive Layer 3 features such as IPv4/v6 static route, RIP v1/v2, OSPF v2/v3 and BGP
  • Virtual stacking supports up to 4 switches in a single logical stack for unified management, monitoring and configuration
  • Access Control: Access Control List (ACL) / RADIUS
  • Supports VLAN (tag-based, Q-in-Q)
  • IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
  • IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
  • Supports unknown unicast / broadcast / multicast storm control
  • Supports IPv4/IPv6 network operation
  • DHCP Client/Server
  • Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management
  • MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
8
Aantal moduleslots SPF+
12
Console port
RJ-45
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Port mirroring
Ja
Full duplex
Ja
IP routing
Ja
Op beleid gebaseerde routering
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Netwerkvirtualisatie-technologieën
Q-in-Q-tunneling
Fast-leave
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN

Data-uitwisseling

Switchingcapaciteit*
256 Gbit/s
MAC-adrestabel*
32000 entries
Store-and-forward
Ja
Aantal wachtrijen
8
Statische route
Ja
Aantal IP-interfaces
256
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet forwarding rate (1 Gbps)
13690474 pps
Packet forwarding rate (100 Mbps)
1369047 pps
Packet forwarding rate (10 Mbps)
136904 pps
Packet buffergeheugen
3 MB

Beveiliging

DHCP-functies
DHCP client, DHCP server
Access Control List (ACL)
Ja
IGMP snooping
Ja
IGMP-proxy
Ja
IP-MAC-Port binding
Ja
Authenticatie
Gast-VLAN
Wachtwoordbeveiliging
Ja
DoS aanval preventie
Ja
Authenticatie type
AAA, RADIUS
Algoritmen wachtrijplanning
Deficit Round Robin (DRR), Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja
Aantal gefilterde multicast-groepen
256

Protocollen

GARP VLAN Registratieprotocol (GVRP)
Ja

Design

Rack-montage*
Ja
Kleur van het product
Grijs
Materiaal behuizing
Metaal
Reset button
Ja
LED-indicatoren
Activiteit, Link, Stroom, Systeem
Land van herkomst
China
Veiligheid
FCC Part 15 Subpart B
Certificering
CE

Prestatie

Intern geheugen
512 MB
Flash memory
16 MB
Maximale overdrachtssnelheid van gegevens
10000 Mbit/s
Telnet
Ja
Dying Gasp
Ja
Mean time between failures (MTBF)
185680 uur

Energie

Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
50 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 90 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
170,65 BTU/h

Gewicht en omvang

Breedte
440 mm
Diepte
315 mm
Hoogte
44 mm
Gewicht
3,6 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Type verpakking
Doos
Rekbevestigingspakket
Ja
Rubberen voetjes
Ja
Ondersteunings-cd
Ja
Breedte verpakking
576 mm
Diepte verpakking
448 mm
Hoogte verpakking
94 mm
Gewicht verpakking
5,3 kg

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Ethernet LAN
Ja
