LevelOne HVE-6601R, 1920 x 1080 Pixels, AV-receiver, Grijs, HDCP

Nog 1 beschikbaar (bel voor reservering)

Fabrikant LevelOne
MPN HVE-6601R
EAN 4015867175620

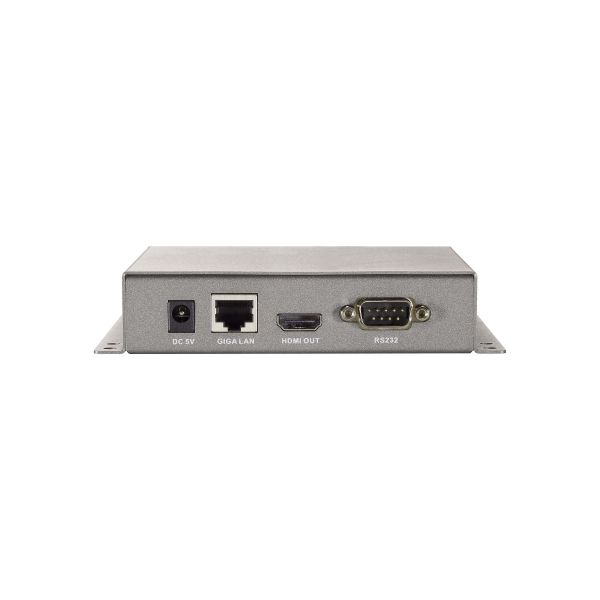

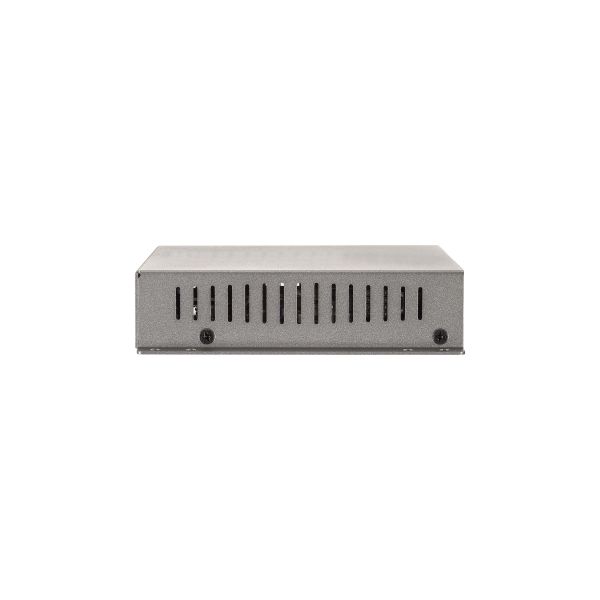

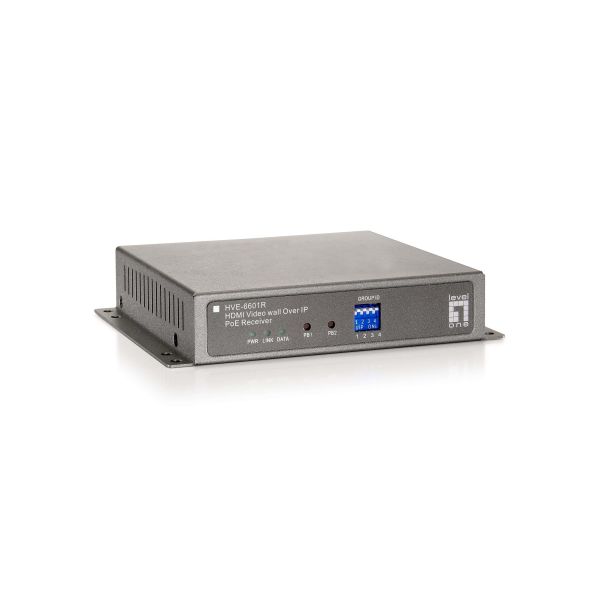

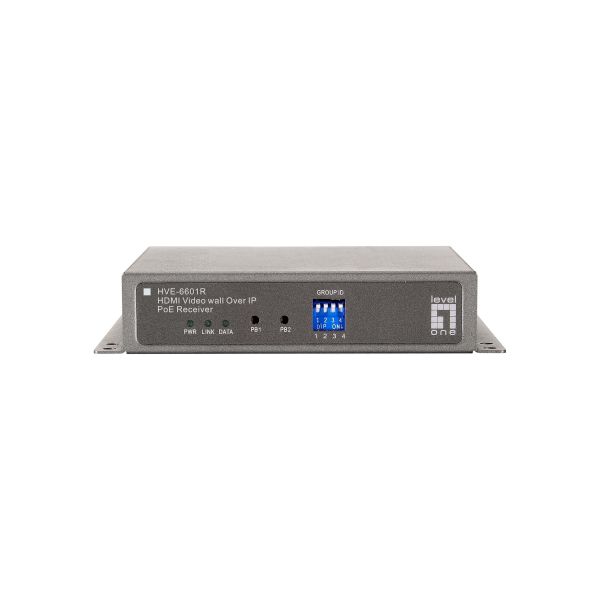

LevelOne HVE-6601R audio/video extender AV-receiver Grijs

- Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN
- Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading
- Up to 9 transmitters and 81 receivers possible in a single Video Wall system
- Transmits HDTV resolutions up to 1080p.
- Transmits an HDMI signal over one CAT5e/6/7 cable.
- HDMI 1.3b and HDCP compliant
- Support Point-to-Point, Point-to-Many and Many-to-Many network configuration
- Dual power input: 802.3af compliant PoE & DC5V
- Multicasting group with Gigabit Ethernet switch (required 802.1Q VLAN & IGMP function)
- Built-in DIP switch to change Group ID and Utility for remotely
- RS-232 Control Pass-Thru to control HDMI display from transmitter side
- Plug and Play installation, free bundle utility for advance setting

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
AV-receiver
Maximum resolutie*
1920 x 1080 Pixels
Ondersteundende kabel types
Cat5e, Cat6, Cat7
LED-indicatoren
Data, Link, Stroom
Ondersteunde video-modi
720p, 1080p
HDCP
Ja
Plug and play
Ja
Netwerkstandaard
IEEE 802.3af
Kleur van het product
Grijs
Certificering
CE, FCC

Poorten & interfaces

RJ-45 invoer ports
1
Aantal HDMI-uitgangen
1
HDMI versie
1.3b
Seriële poort(en)
1
Soort serieële aansluiting
RS-232
Aansluiting voor netstroomadapter
Ja

Energie

Operating voltage
5 V
Stroomverbruik (ontvanger) (max)
8 W
Stroom
1 A
Power over Ethernet (PoE)
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C

Eisen aan de omgeving

Temperatuur bij opslag
-10 - 80 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
114 mm
Diepte
140 mm
Hoogte
28 mm
Gewicht
800 g
Receiver afmetingen (B x D x H)
140 x 114 x 28 mm
Receiver gewicht
800 g

Verpakking

Breedte verpakking
148 mm
Diepte verpakking
240 mm
Hoogte verpakking
80 mm
Gewicht verpakking
740 g

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Snelstartgids
Ja
Gebruikershandleiding
Ja

Technische details

Audio support
Ja
Land van herkomst
Taiwan
