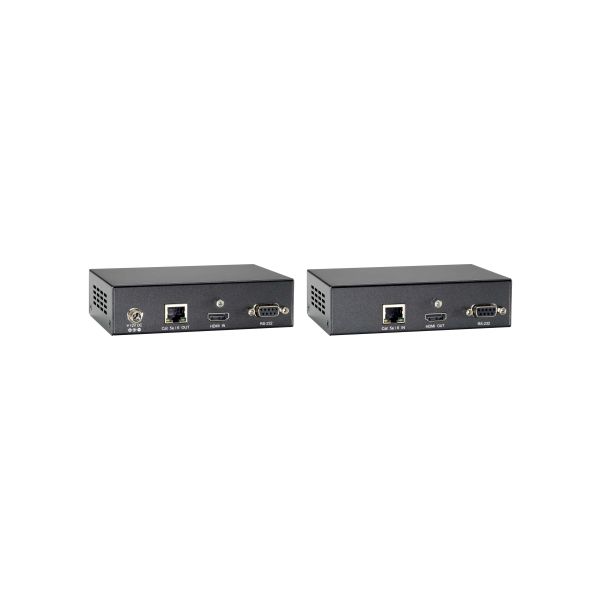

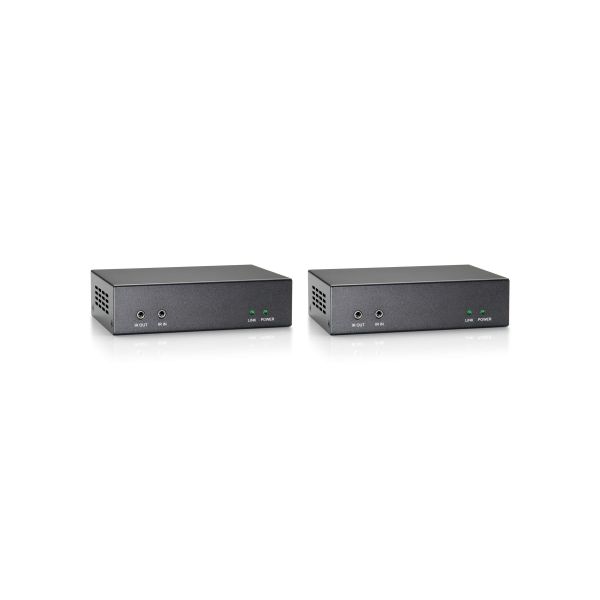

LevelOne HVE-9200P audio/video extender AV-zender & ontvanger Grijs

LevelOne HVE-9200P, 3840 x 2160 Pixels, AV-zender & ontvanger, 100 m, Grijs

Ruim op voorraad

Fabrikant LevelOne
MPN HVE-9200P
EAN 4015867192917
€ 284,00 excl. BTW

LevelOne HVE-9200P audio/video extender AV-zender & ontvanger Grijs

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.

The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.

All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
AV-zender & ontvanger
Maximum resolutie*
3840 x 2160 Pixels
Ondersteundende kabel types
Cat5, Cat5e, Cat6
Maximaal bereik
100 m
LED-indicatoren
Ja
Ondersteunde video-modi
1080p
Bandbreedte
10,2 Gbit/s
Materiaal
Metaal
Kleurdiepte
48 Bit
Kleur van het product
Grijs

Poorten & interfaces

RJ-45 invoer ports
1
HDMI in
1
Aantal HDMI-uitgangen
1
RS-232 ingangspoorten
2
Aansluiting voor netstroomadapter
Ja

Energie

Operating voltage
12 V
Stroom
2 A

Energie

Power over Ethernet (PoE)
Ja

Gewicht en omvang

Breedte
125 mm
Diepte
85 mm
Hoogte
40 mm
Receiver afmetingen (B x D x H)
85 x 125 x 40 mm
Transmitter afmetingen (WxDxH)
85 x 125 x 40 mm

Verpakking

Afmetingen verpakking (BxDxH)
300 x 170 x 120 mm
Breedte verpakking
300 mm
Diepte verpakking
170 mm
Hoogte verpakking
120 mm
Gewicht verpakking
1,45 kg

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Meegeleverde kabels
AC
Gebruikershandleiding
Ja
