LevelOne HVE-9211PR audio/video extender AV-receiver Zwart

LevelOne HVE-9211PR, 3840 x 2160 Pixels, AV-receiver, 100 m, 3D, Zwart, HDCP

Ruim op voorraad

Fabrikant LevelOne
MPN HVE-9211PR
EAN 4015867192931
€ 147,00 excl. BTW

LevelOne HVE-9211PR audio/video extender AV-receiver Zwart

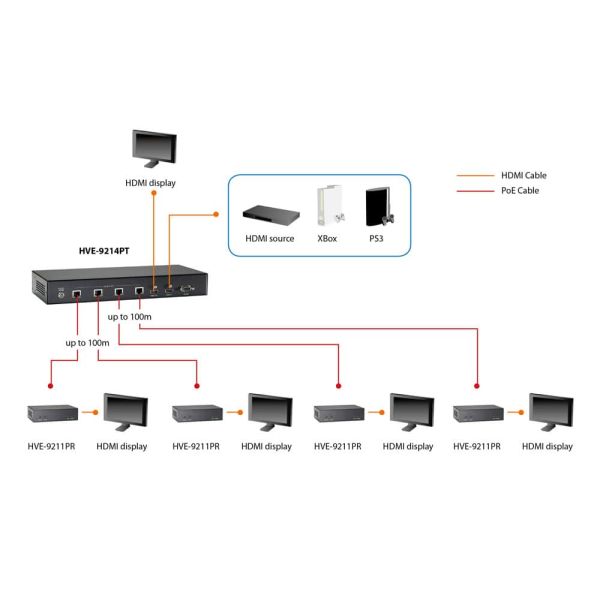

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.

The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.

All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.

Key Features
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
AV-receiver
Maximum resolutie*
3840 x 2160 Pixels
Ondersteundende kabel types
Cat5e, Cat6
Maximaal bereik
100 m
LED-indicatoren
Activiteit, Stroom
Ondersteunde video-modi
720p, 1080p
Bandbreedte
10,2 Gbit/s
Bandbreedte
0,038 MHz
HDCP
Ja
Materiaal
Metaal
Kleurdiepte
48 Bit
3D
Ja
HDCP- & EDID-omzeiling
Ja
Baud snelheid
115 Kbit/s
Plug and play
Ja
Netwerkstandaard
IEEE 802.3af
Kleur van het product
Zwart

Poorten & interfaces

Ethernet LAN
Ja
RJ-45 invoer ports
1

Poorten & interfaces

RS-232 ingangspoorten
1
3,5 mm in
Ja
3,5 mm-uitgang
Ja

Energie

Stroomverbuik (ontvanger) (max)
1110 mA
Power over Ethernet (PoE)
Ja

Gewicht en omvang

Afmetingen (B x D x H)
125 x 85 x 40 mm
Breedte
125 mm
Diepte
85 mm
Hoogte
40 mm

Verpakking

Breedte verpakking
190 mm
Diepte verpakking
150 mm
Hoogte verpakking
120 mm
Gewicht verpakking
814 g

Inhoud van de verpakking

Gebruikershandleiding
Ja
